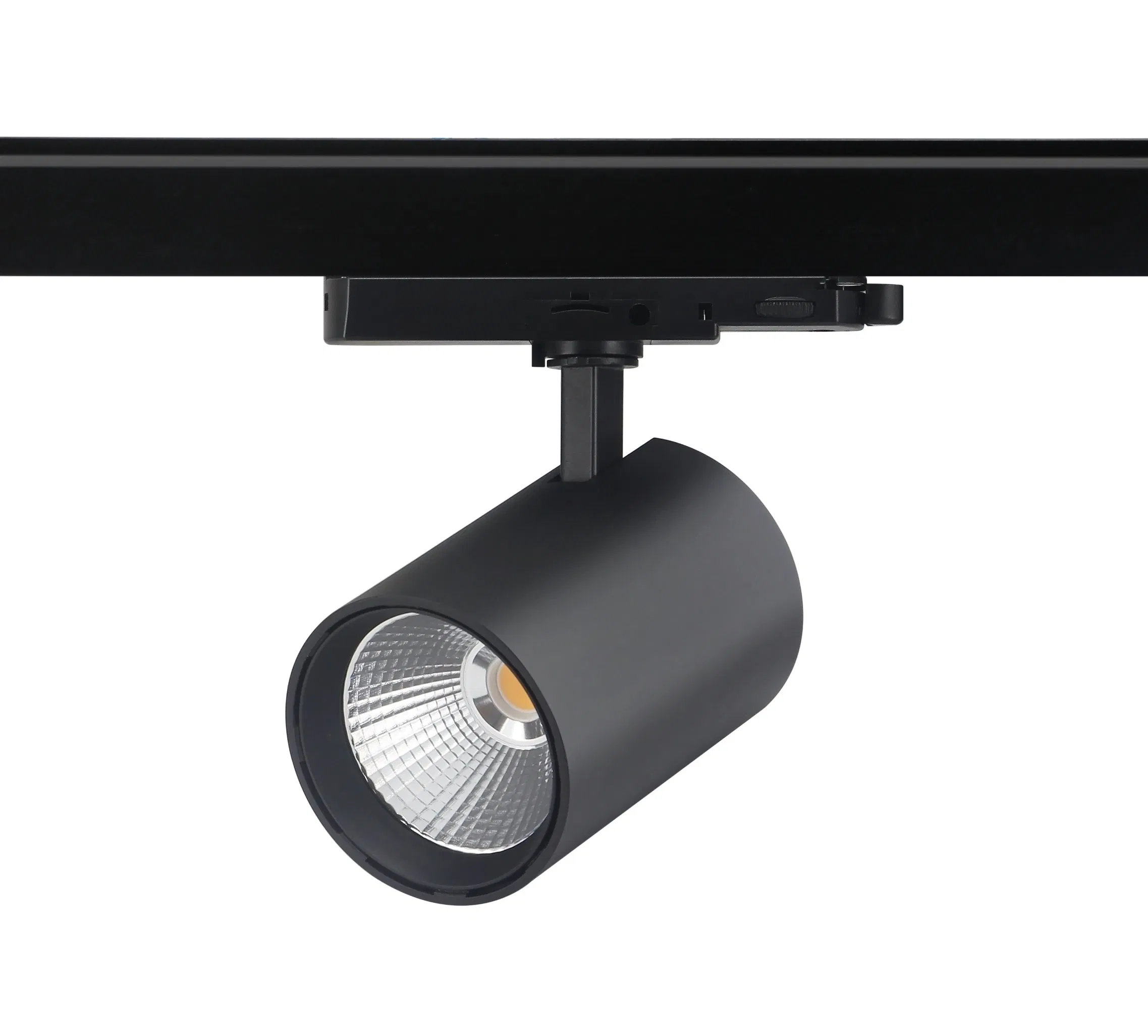

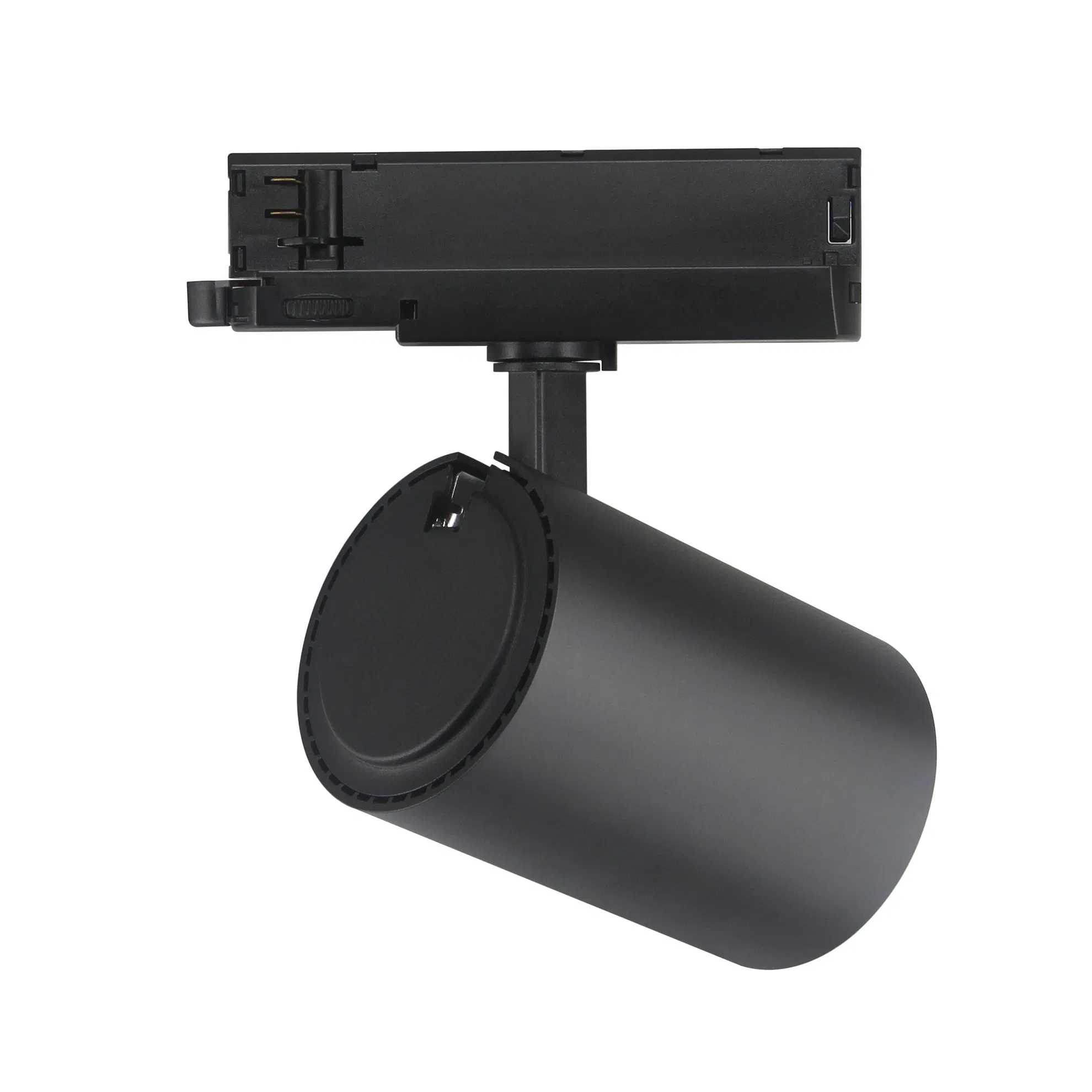

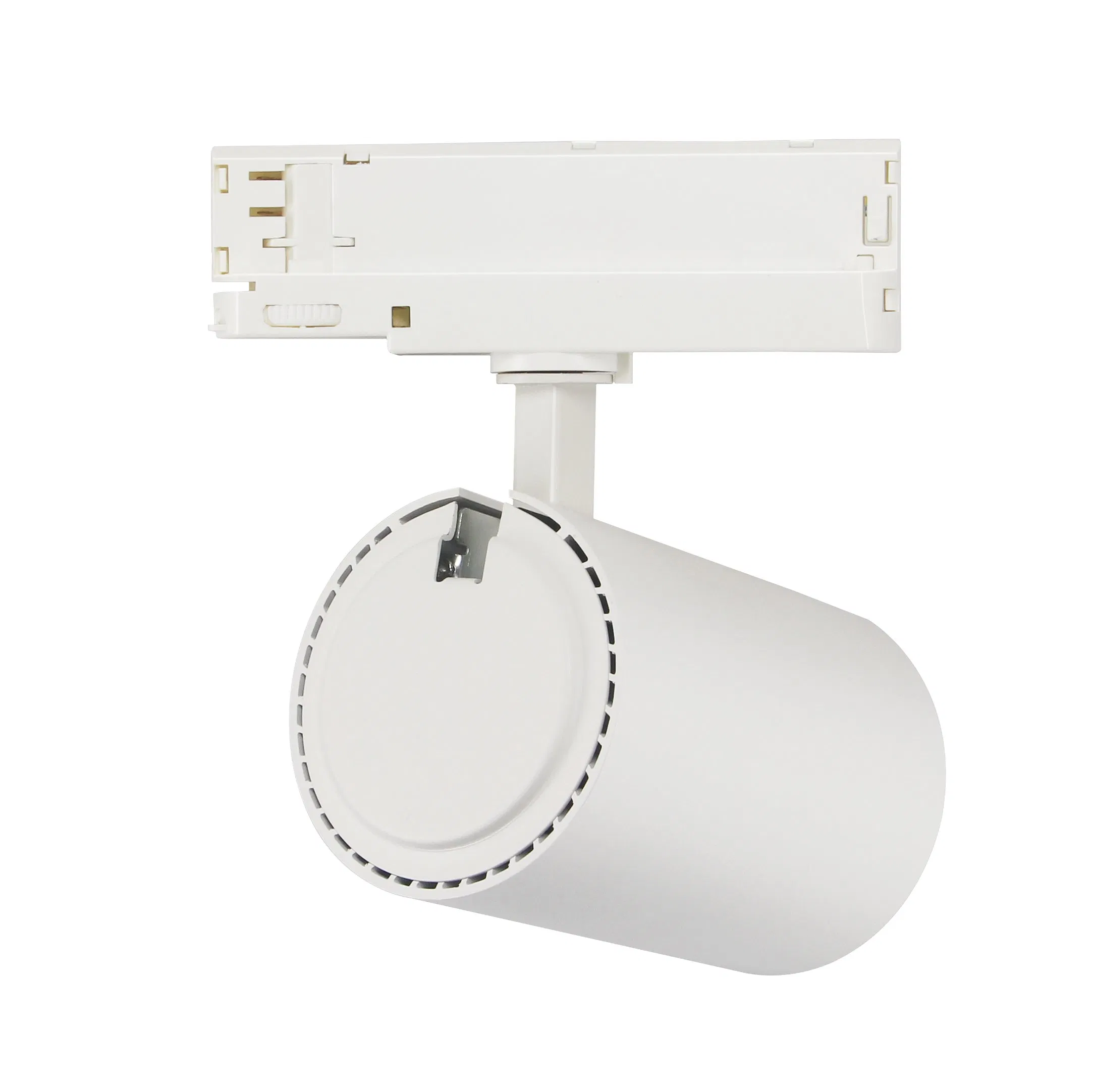

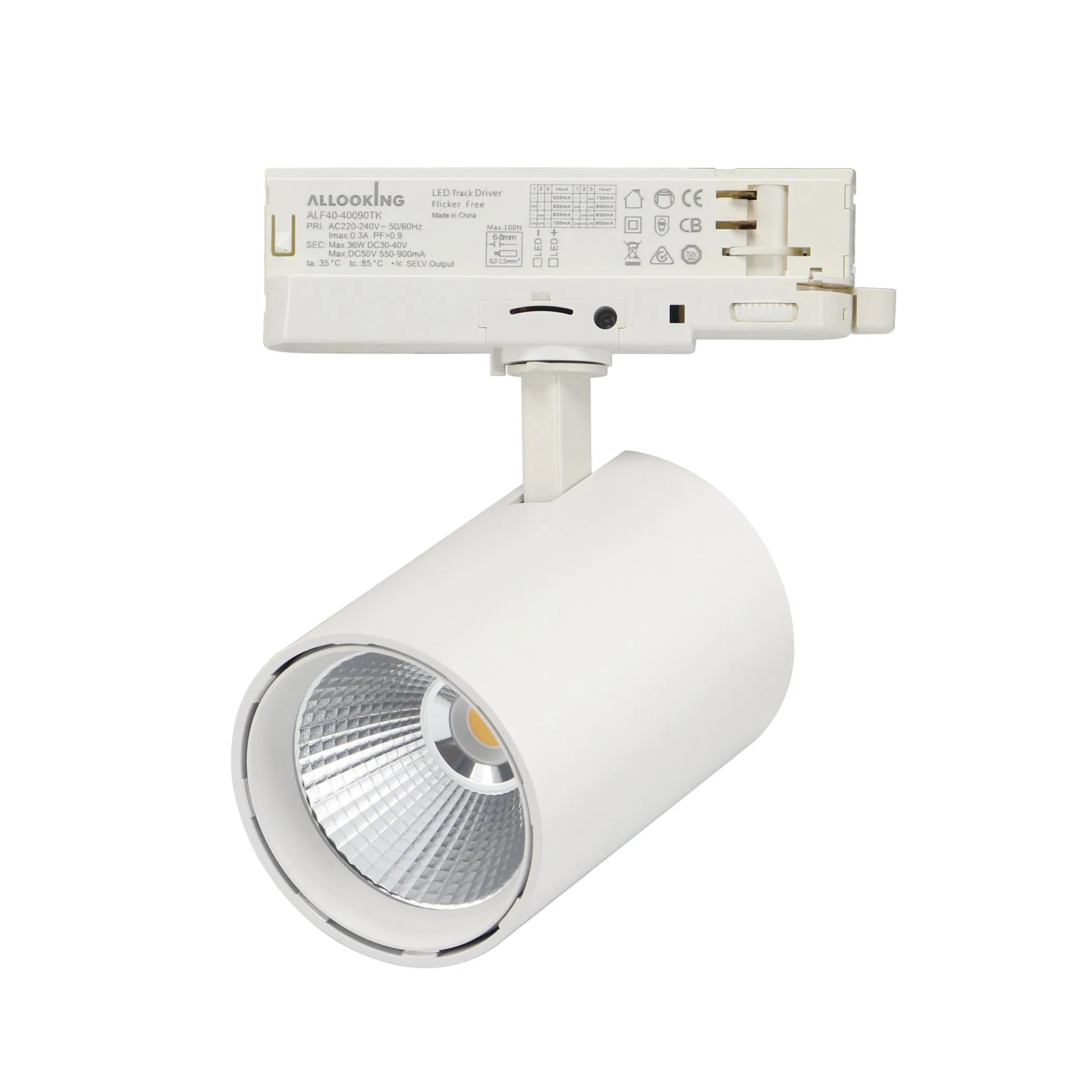

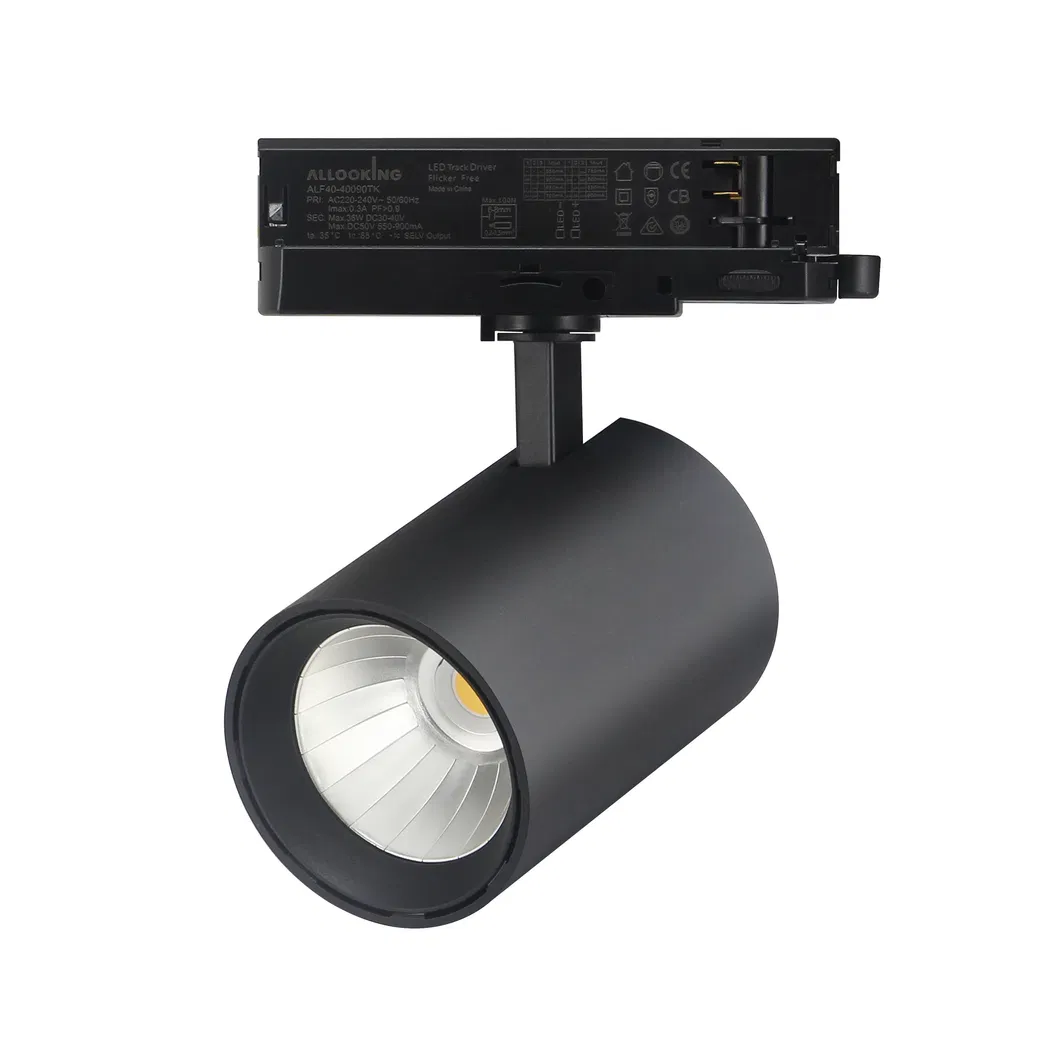

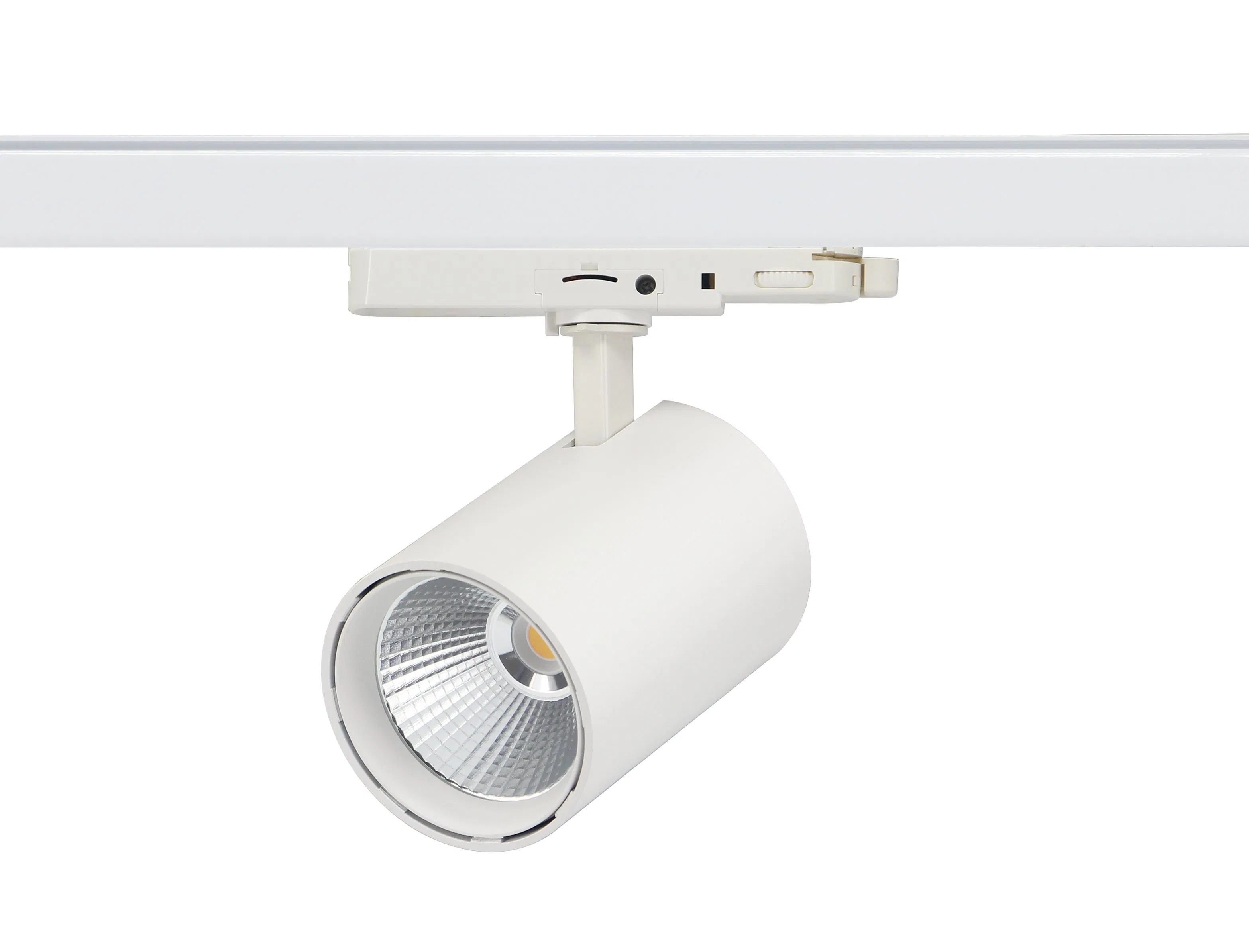

Aluminum Retail Track Lighting 10W 20W 30W 35W COB Tracklight LED Track Spot Light
Product Description
Basic Specifications
Model NO.
PL-TL-HP-35W
Power
35W
Emitting Color
White
Base Type
Adaptor
Wire Options
2wires, 3wires, 4wires
IP Rating
IP44
Input Voltage
100-240V
LED Chips
CREE / Osram COB
Housing Color
White, Black, Grey
Dimensions
D95 H160mm
Product Description
Aluminum Retail COB LED Track Spot Light
This high-performance COB LED track light is designed for retail and commercial environments, offering superior anti-glare properties and high-lumen output. Available in 10W to 50W configurations, it features premium components like Citizen or CREE LED chips for exceptional light quality.
Key Features:

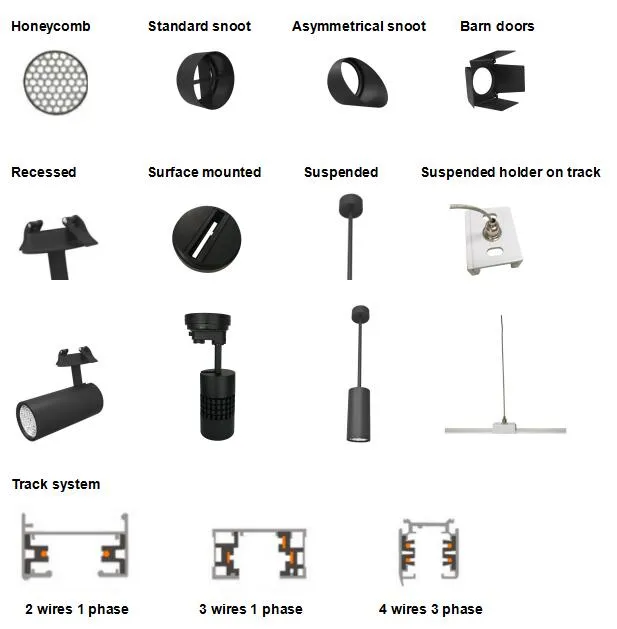

- Compatible with 2-wire, 3-wire, and 4-wire (3-phase) track systems.
- High Color Rendering Index (CRI 90+) for true color representation.
- Advanced thermal management for 50,000h long lifespan (L90).
- Multiple beam angle options: 15° / 24° / 36° / 60°.
| General Spec | LED Detail | Electrical Data |
|---|---|---|
| Osram COB Chip | 3000K/3500K/4000K | Input: AC200-240V |
| Finish: White/Black | CRI: 90+ | Frequency: 50/60Hz |
| IP20/IP44 Rating | L90/50,000h Life | Wattage: 35W |
| Aluminum Reflector | >130lm/W LED Efficiency | Luminous Flux: 3500lm |
Typical Applications
Our track lighting systems are perfect for both commercial highlighting and modern home accent lighting. From hair salons and retail stores to art galleries and residential task lighting, these fixtures provide the versatility needed for any project.
- Retail Shop & Boutique Lighting
- Art Galleries & Showrooms
- Hotel & Hospitality Spaces
- Sustainable Energy Saving Programs
- General Commercial Interior Lighting
Technical Dimensions & Design

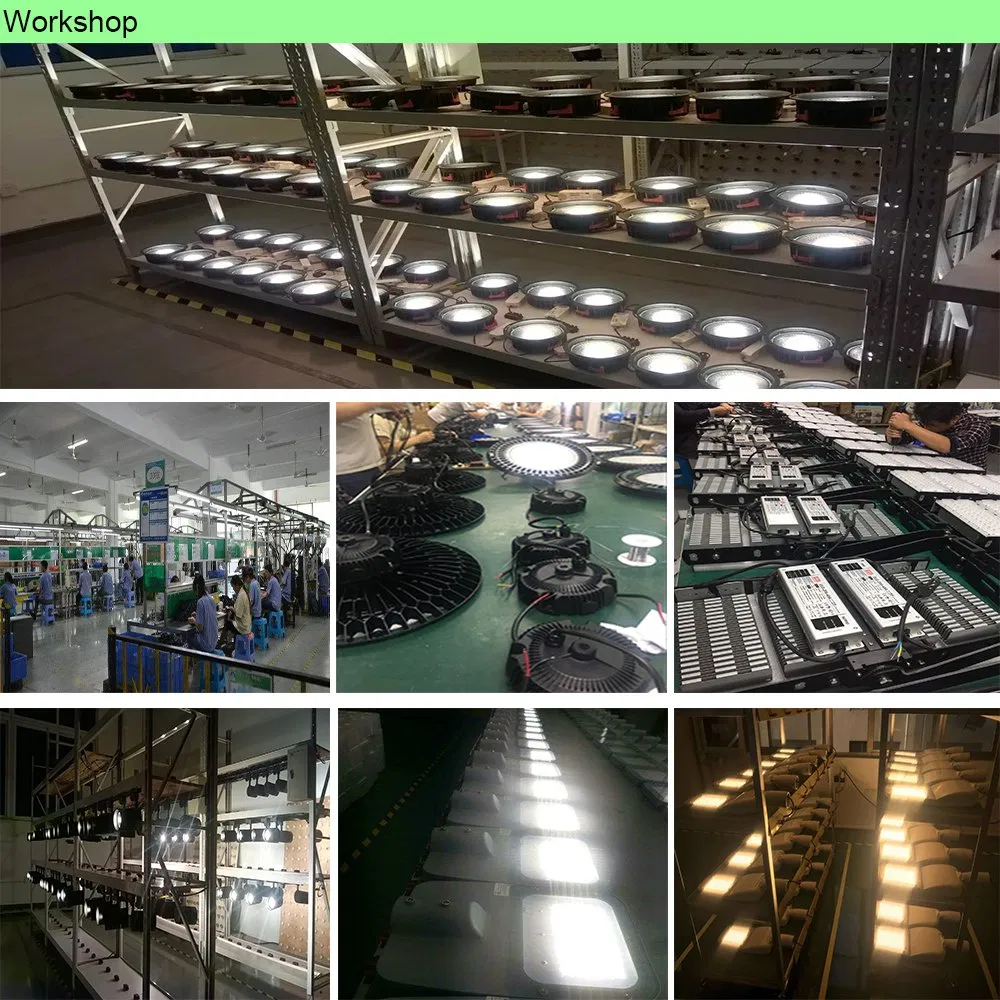

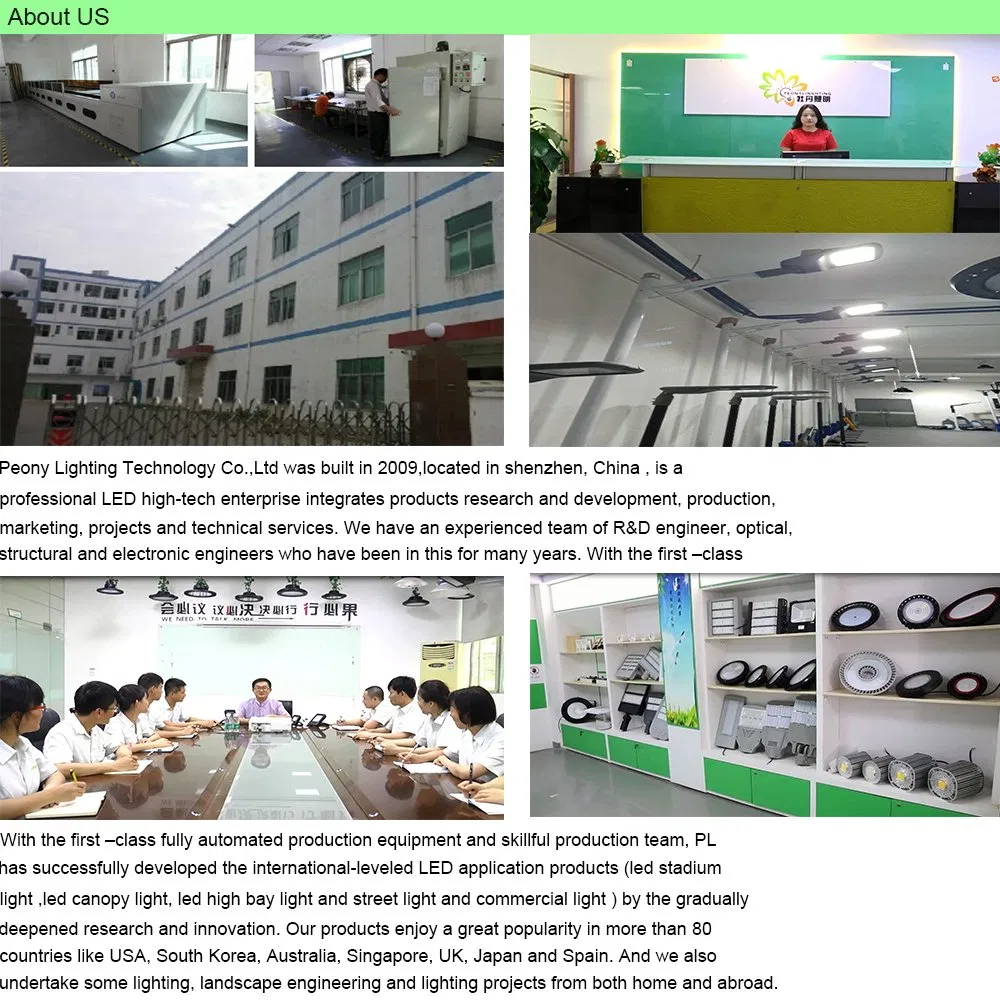

Quality Assurance
We implement strict quality control through every step of production:
- 100% Raw material inspection.
- Full check after every process.
- 500 times On/Off endurance testing.
- 2-Year Limited Warranty against manufacturing defects.
Frequently Asked Questions
What are the main wattage options for this track light?
We offer a range of wattages including 10W, 20W, 30W, and 35W to suit different illumination requirements.
Is this track light compatible with my existing track system?

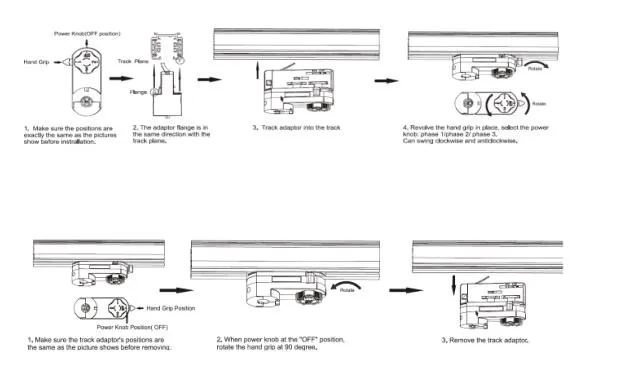

The light is designed to be highly versatile, supporting 2-wire, 3-wire, and 4-wire (3-phase) track adapters.
What is the Color Rendering Index (CRI) of the COB LED?
The product features a high CRI of 90+, ensuring that colors appear vibrant and accurate in retail and gallery settings.
Does this fixture require an external transformer?
No, these are 100V-240V AC input fixtures with built-in drivers, so no external transformers are required.
Can I choose different beam angles for specific lighting effects?
Yes, we provide multiple beam angle options including 15°, 24°, 36°, and 60° to accommodate spot or flood lighting needs.
What is the expected lifespan of the LED?
With premium CREE or Osram chips and advanced thermal design, the LED has a rated lifespan of up to 50,000 hours (L90).
