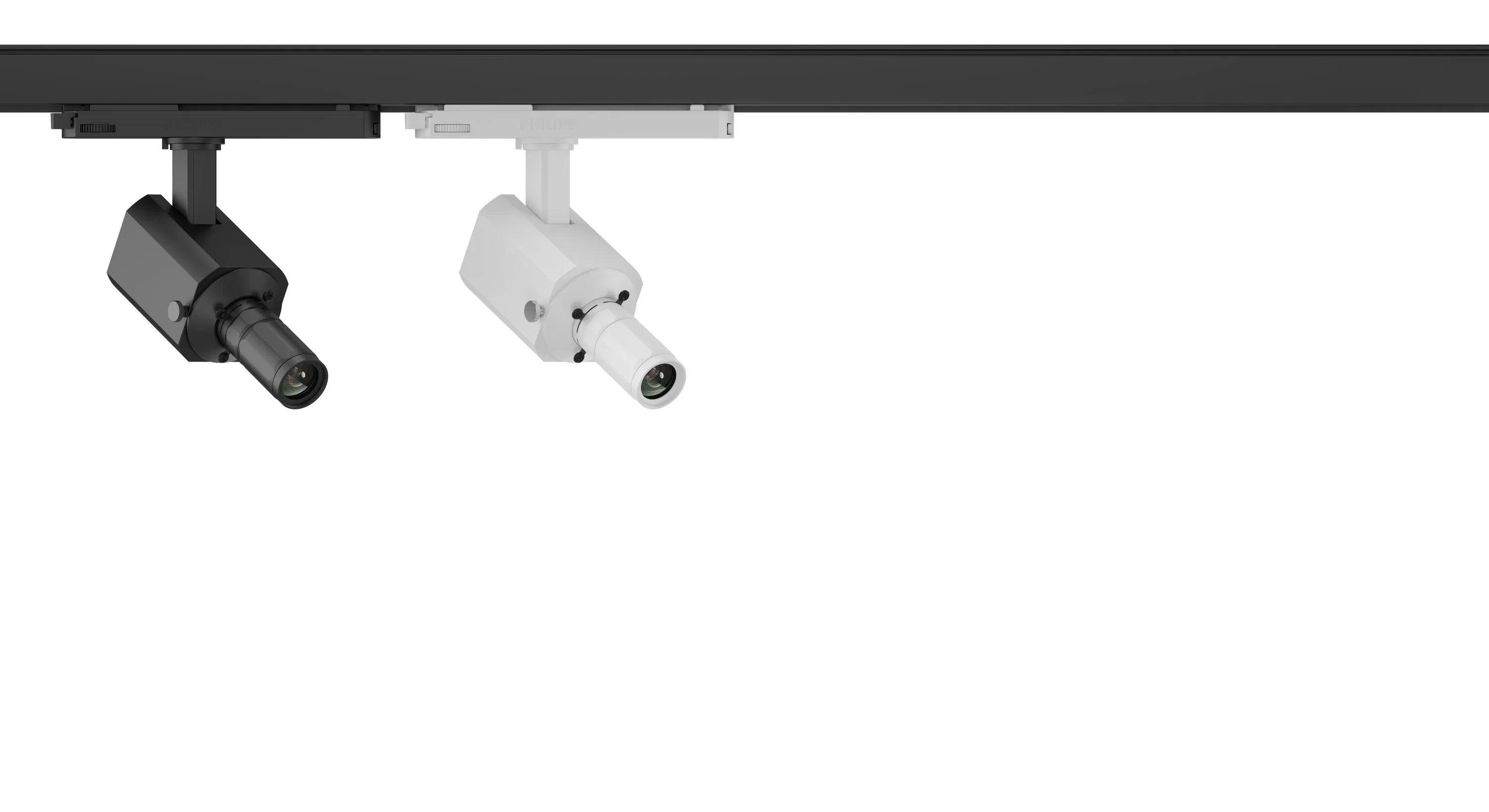

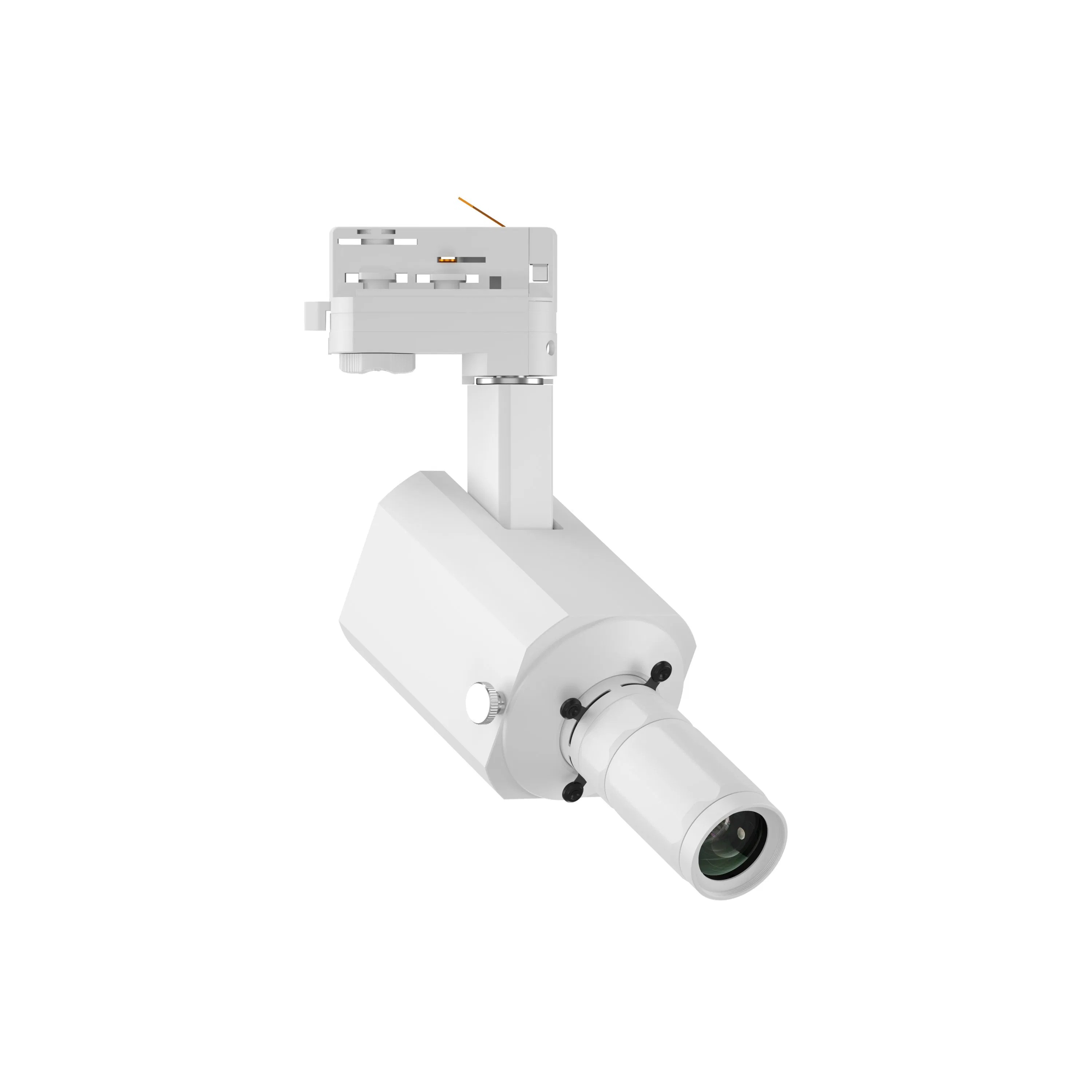

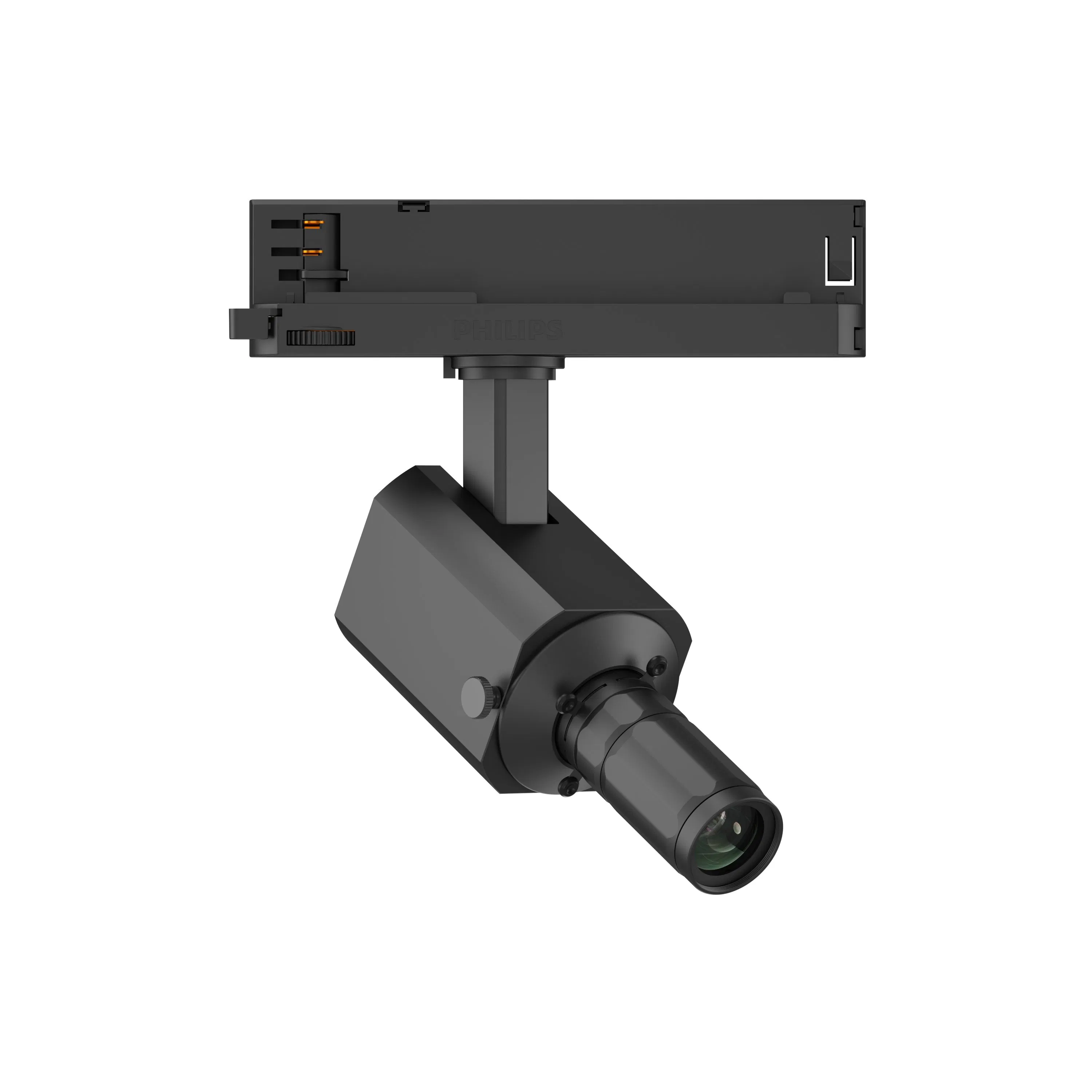

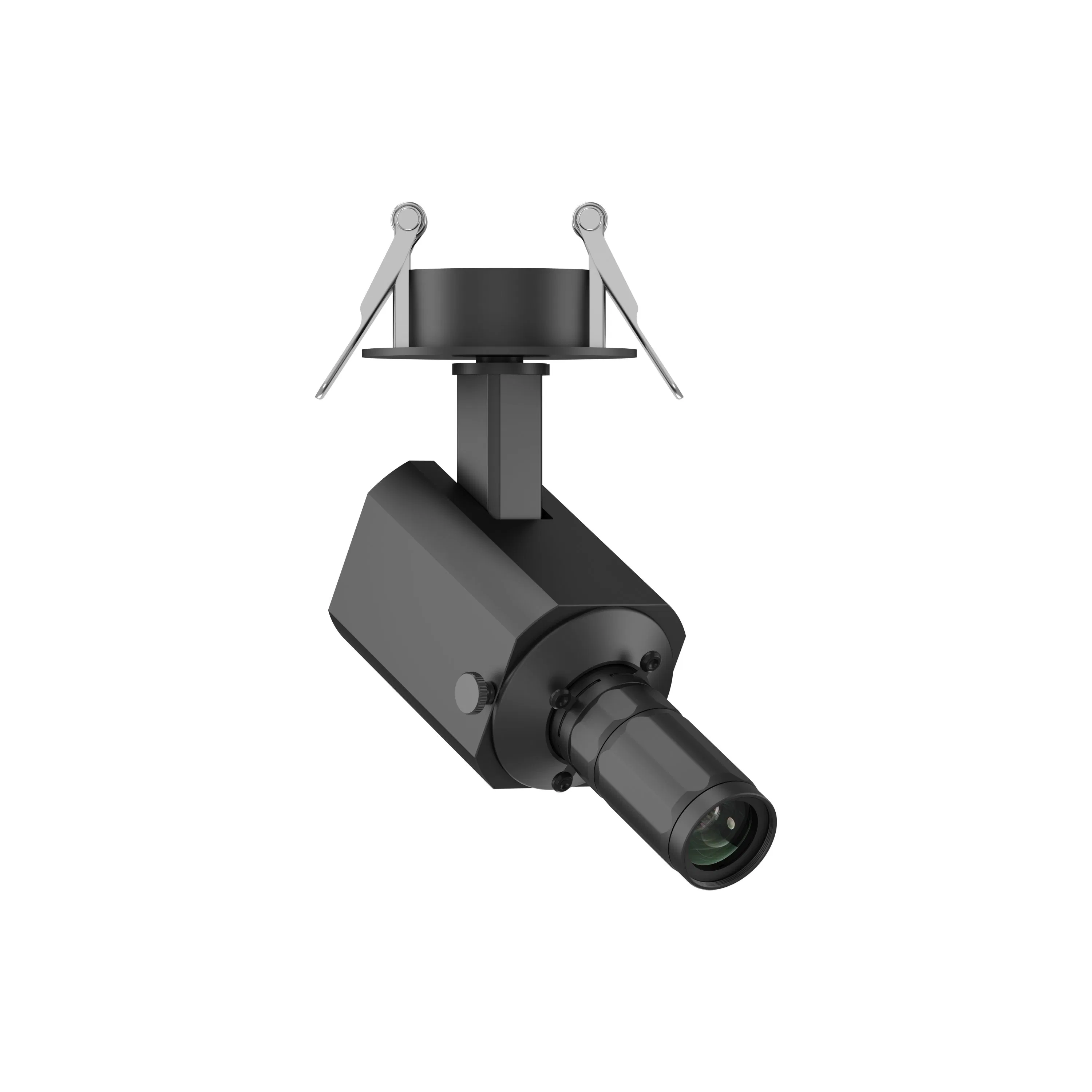

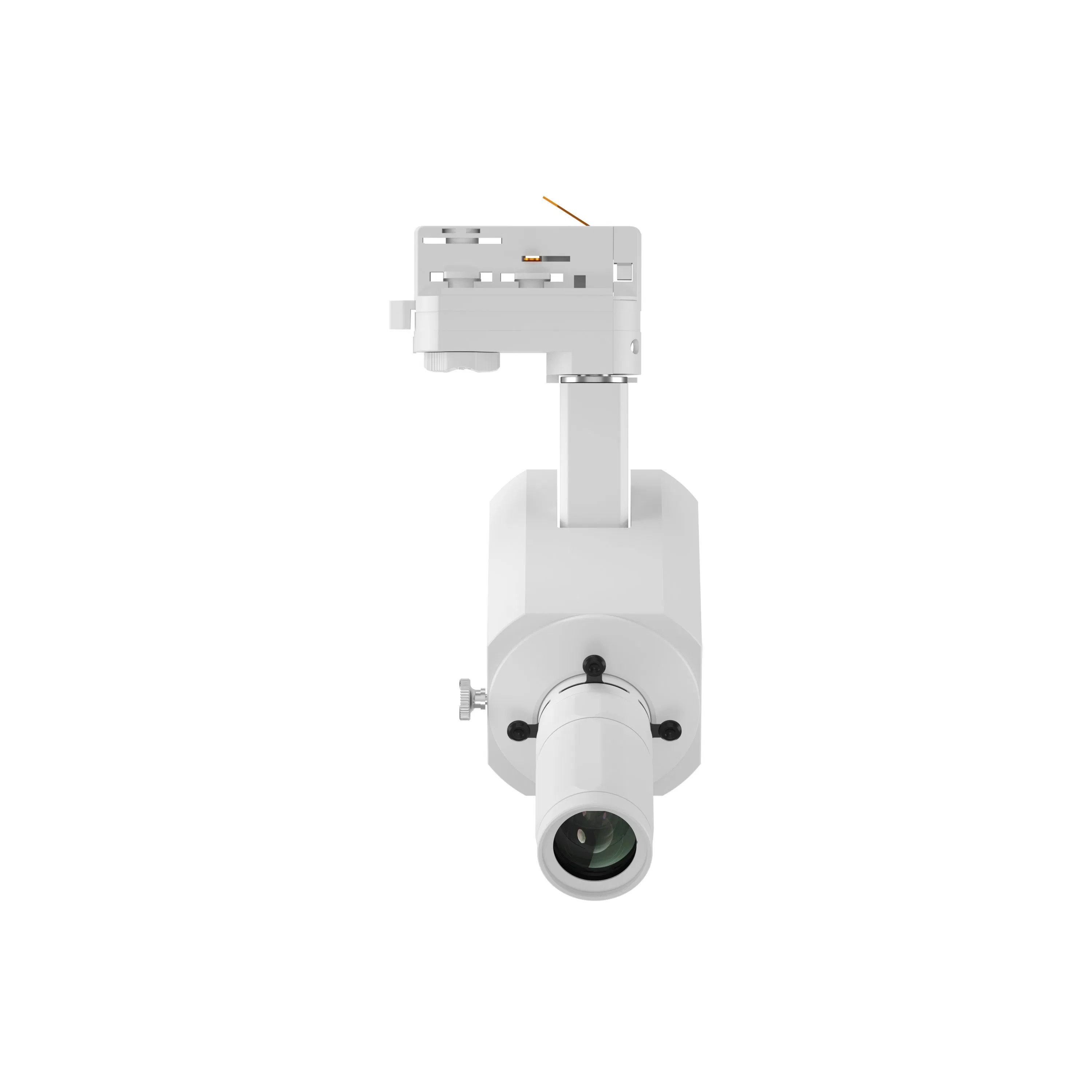

Art Spotlight New Trend 12W Zoomable Dali Dim LED COB Shapeable Track Lighting Gobo Framing Projector Spot
Product Description
📋 Basic Information
Model NO.
ST-T1205
Power
11-15W
Emitting Color
2700K-6000K
Base Type
Track Rail
Wire
2/3/4 Wires
IP Rating
IP33
Certification
CE, EMC, LVD, RoHS
Input Voltage
220V
LED Chips
Citizen
CRI
97
Sdcm
<3
Dimming
on/off; Triac; 0-10V; Dali
PF
>0.95
Flicker-Free
Yes
Housing Color
White; Black; Customed
Beam Angle
10-30 Degrees Zoomable
💡 Product Description

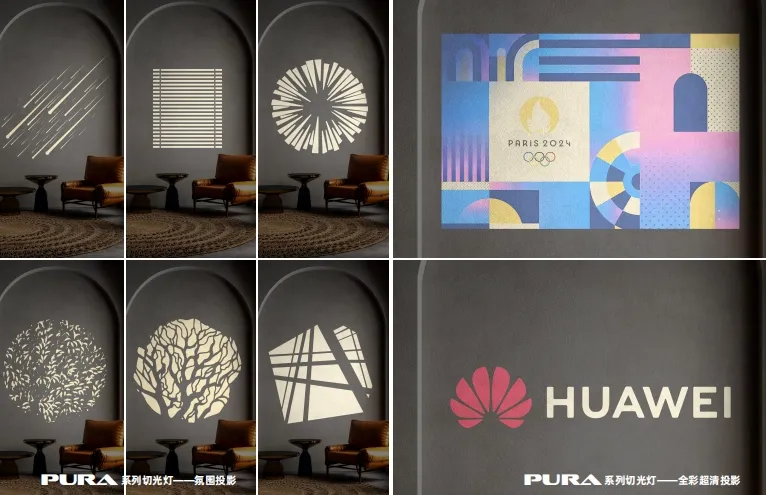

This series of shapeable track light is a set of cut light, zoom, projection, and intelligent control in one multifunctional lamp. By rotating the lens part and adjusting the cut shape part, you can modify the spot shape, size, and soft sharpness. Through the insertion of light blocking imaging, you can arbitrarily adjust the shape of the spot to your preference.
Ideal Applications: Museums, art galleries, exhibition halls, home decoration, hotels, restaurants, cafes, theme halls, precision instrument laboratories, and various industrial or commercial lighting spaces.
📐 Technical Specifications
| Power | 12W |
| Uniformity | 95% |
| CRI | ≥95 |
| Zoomable Range | 10-30° |
| TV Distortion | ≤0.25% |
| Projection Resolution | 0.01/1 |
| Installation | Track / Recessed / Magnetic |
| Dimmable Options | Non / 0-10V / Dali / Triac |

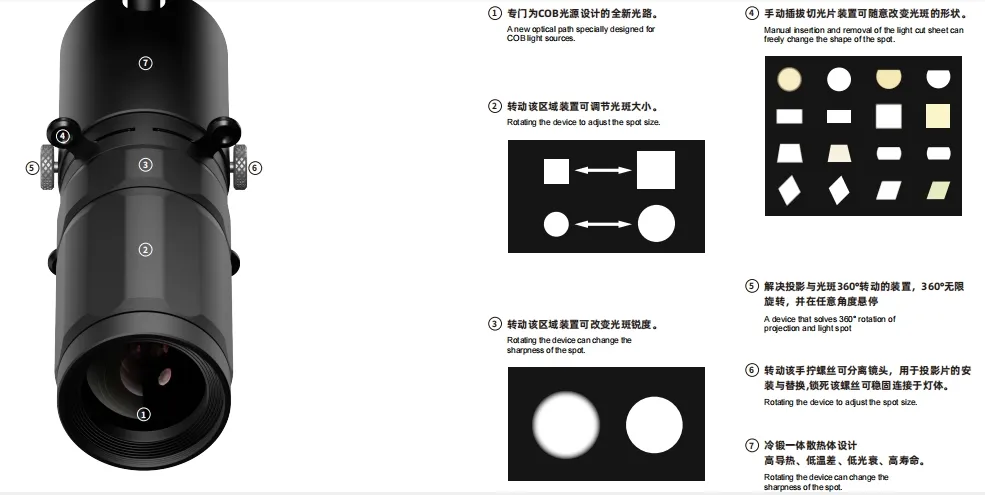

⭐ Key Advantages
✔
Adjustable Angle: 10°-30° angle infinitely adjustable for precise focus.
✔
High Definition: COB light source provides ultra-high definition projection.
✔
Precision Cutting: Millimetre cut light precision with uniform light distribution.
✔
No Distortion: Cut light without blue edges; edge sharpness remains consistent.
✔
Smooth Operation: Extremely delicate rotation feel with no-lag linear zoom.
✔
Smart Control: Full series supports intelligent dimming and color adjustment.

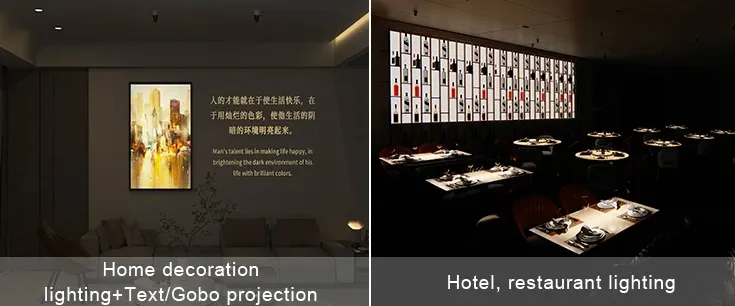

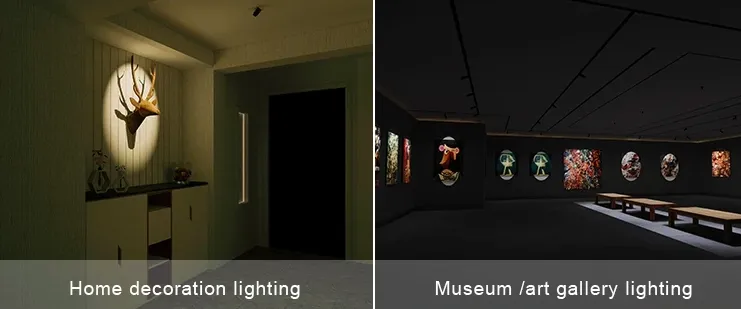

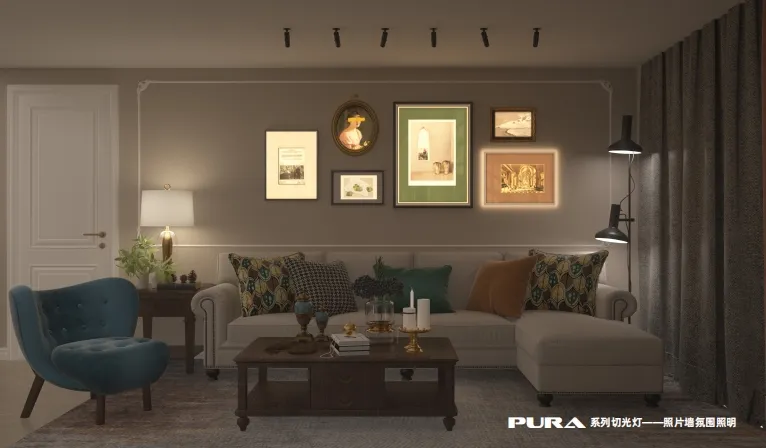

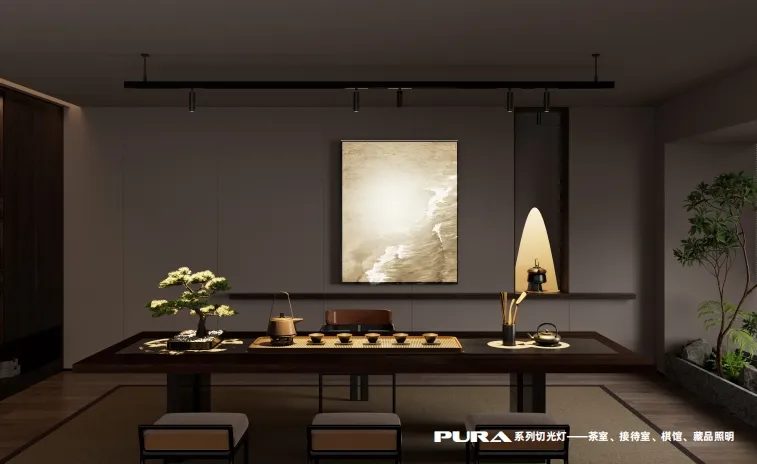

📷 Applications for Reference
❓ Frequently Asked Questions
Can I request a sample order?
Yes, we welcome sample orders for quality checks. Mixed samples are also acceptable.
What is the typical lead time for orders?
Samples usually take 3-5 days, while formal bulk orders typically take 7-15 days.
Do you offer a warranty for these lights?
Yes, we provide a 3-5 year warranty for our products and can provide a formal Warranty Statement.
Are there different dimming options available?
Yes, we support various dimming protocols including Triac, 0-10V, and DALI, as well as standard on/off.
How is the beam angle adjusted?
The beam angle is zoomable from 10° to 30° through a delicate linear rotation mechanism on the lens.
Is it possible to customize the housing color?
Standard colors are White and Black, but custom colors are available upon request to match your project needs.
