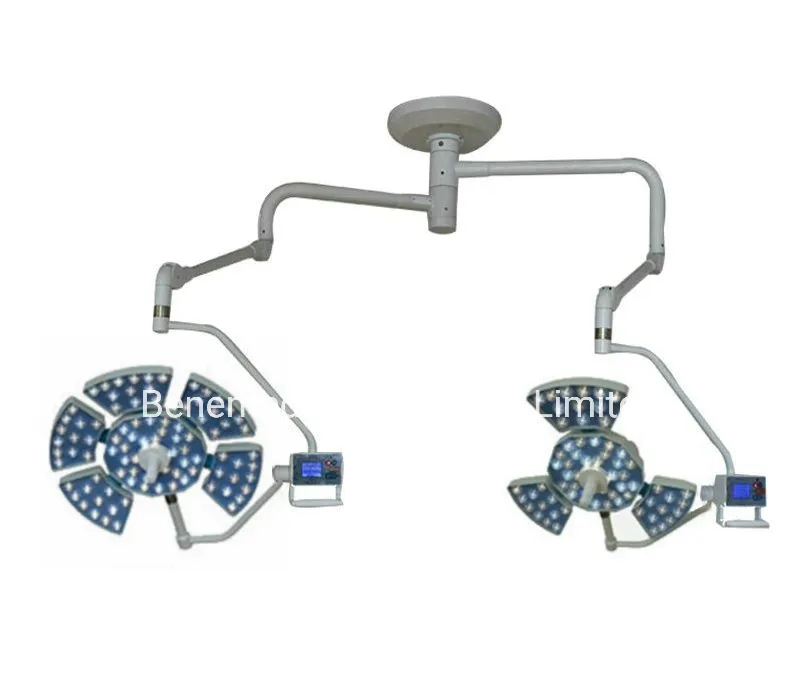

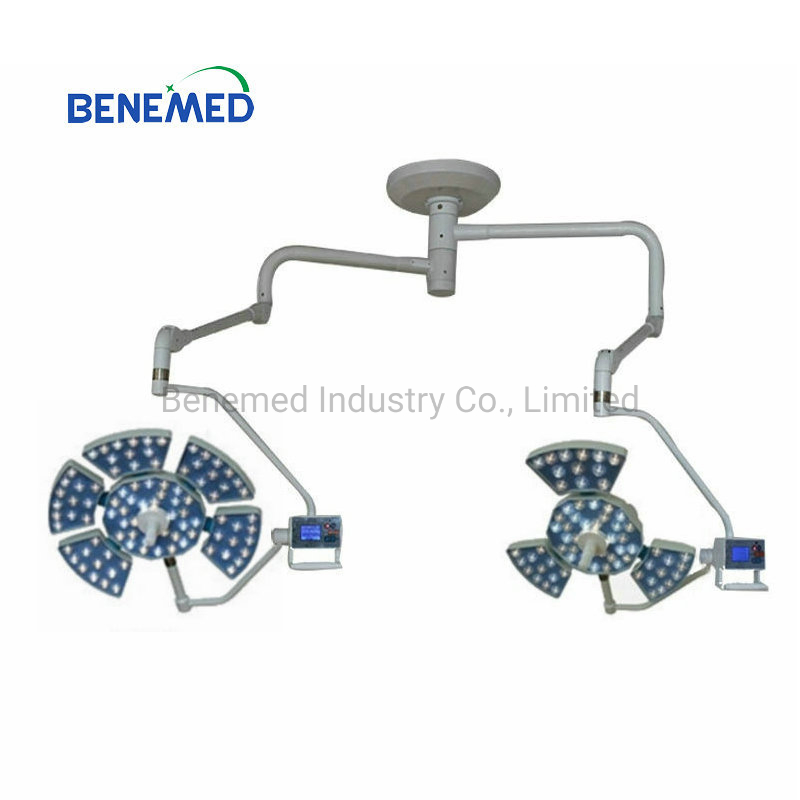

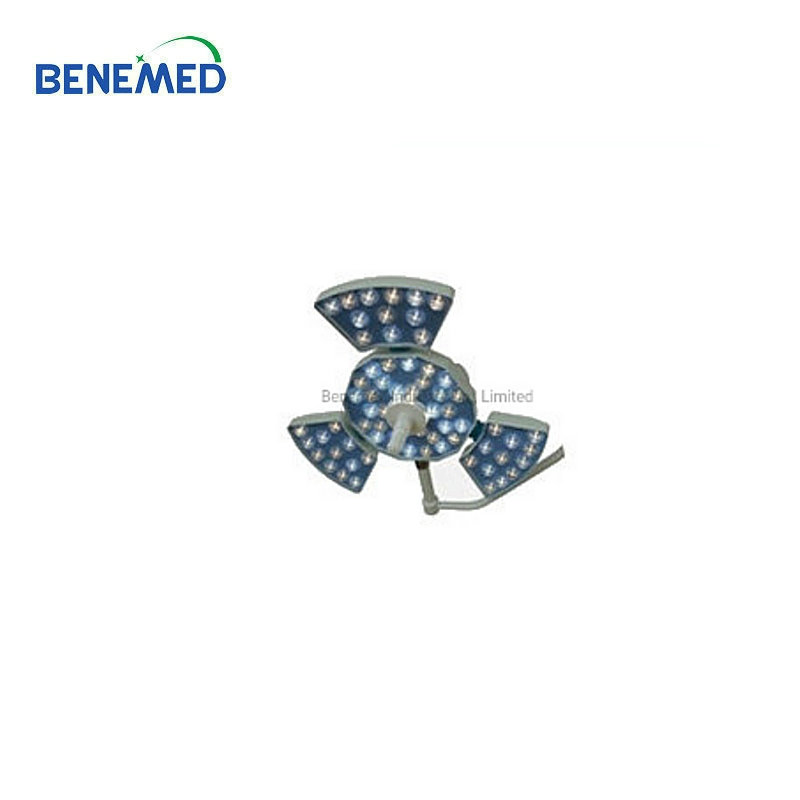

Ceiling Mounted Hospital LED Surgical Lamp Double Dome V4+6
Product Description
Model NO.
V4+6
Certification
CE, ISO13485
Group
All
Illuminance
120000 ~ 180000 Adjustable
Color Temperature
3500 ~ 5000 Adjustable
Color Rendering Index
97%
Spot Diameter
100 ~ 300mm Adjustable
Depth of Light Beam
900mm
Brightness Adjustment
10 Steps Continuous Adjustment
Power
AC 100-240V 50/60 Hz
Transport Package
Wooden Box
Specification
LED Shadowless OT Light
Origin
China
HS Code
9405409000
Production Capacity
1000 Units/Month

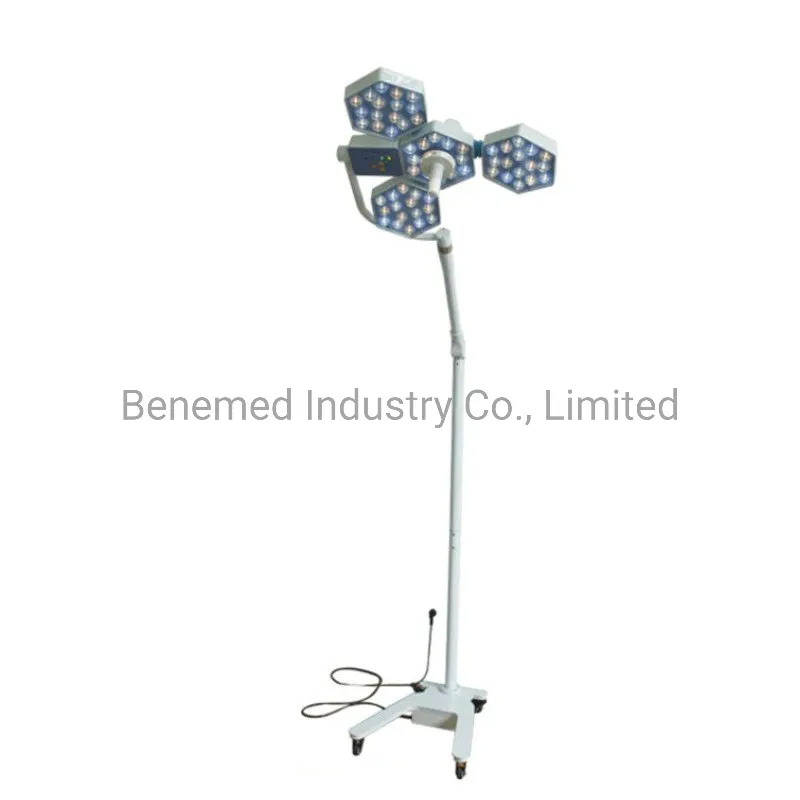

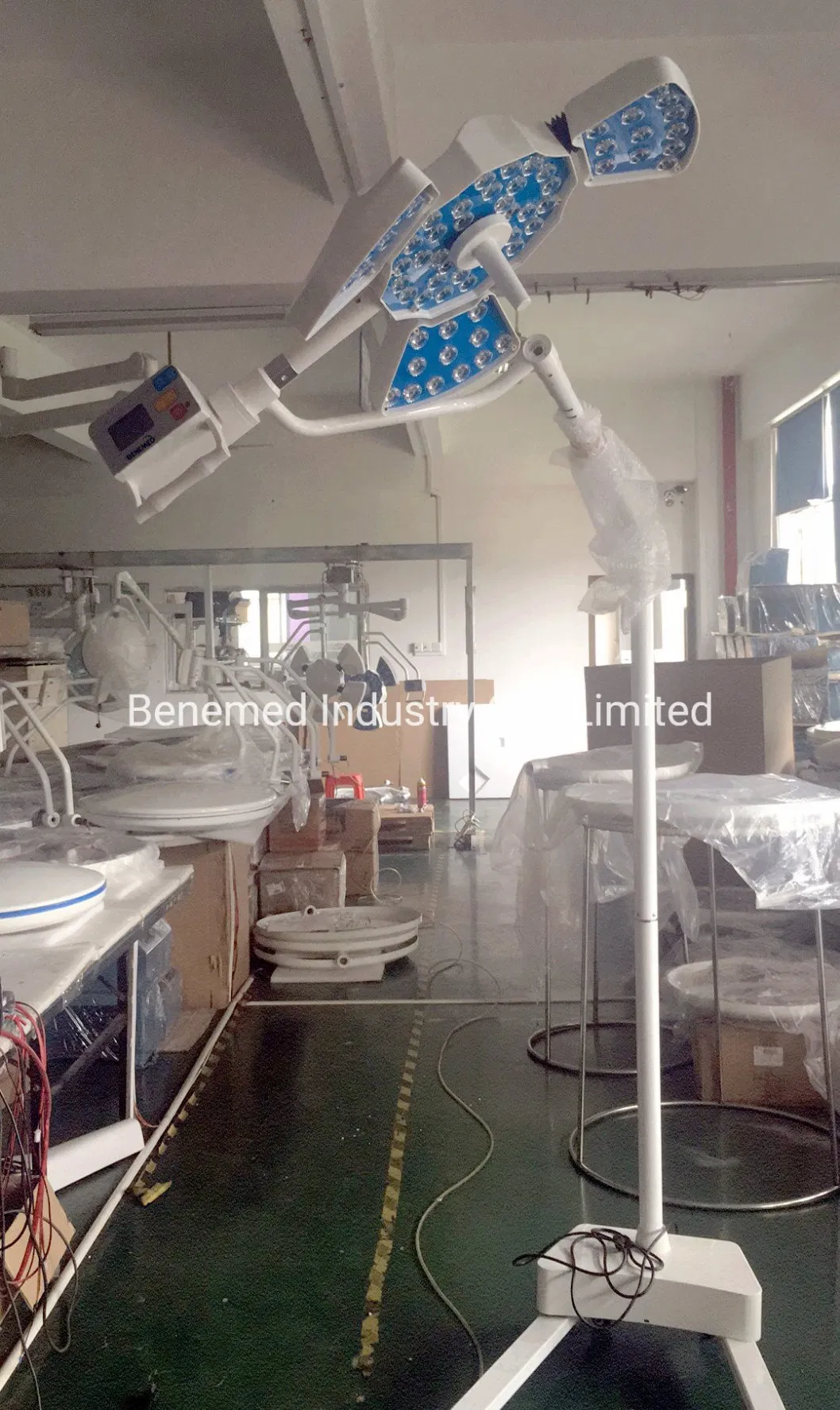

LED Operating light Single Dome, Double Dome, Mobile, Ceiling Mounted Different types

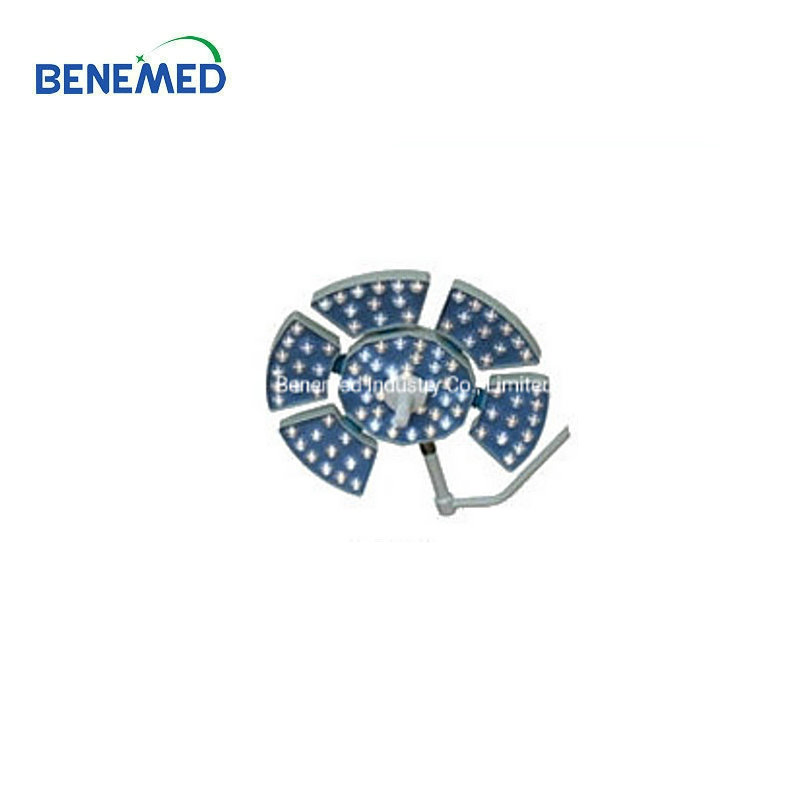

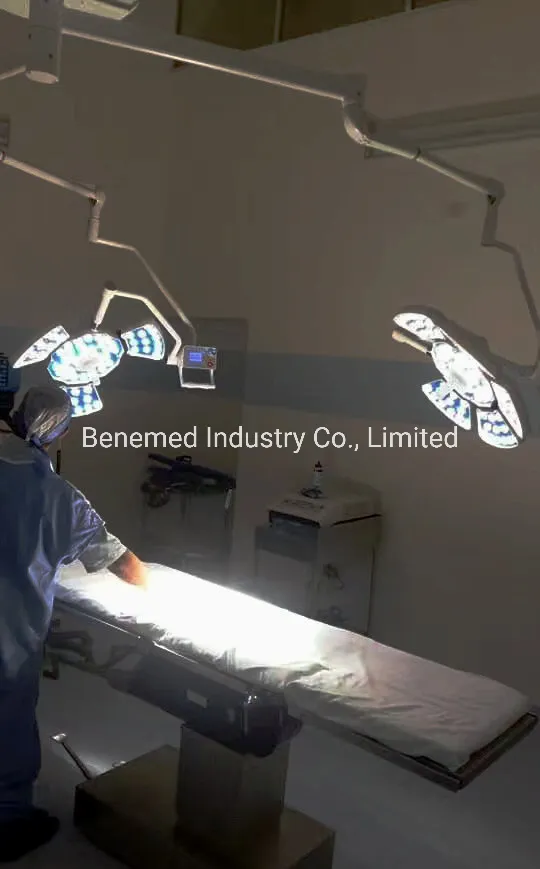

V series LED OT/OR Light features a petal design with imported brand LED bulbs, providing a cold light effect, high color rendering index, and high uniformity. It is designed for low glare, low electromagnetic interference, long lifetime, and lower power consumption. This series is widely used in diversified operation occasions to meet illumination demands in modern operating theaters.
✔ Ideal Cold Light Effect
✔ Shadowless Effect
✔ Excellent Material

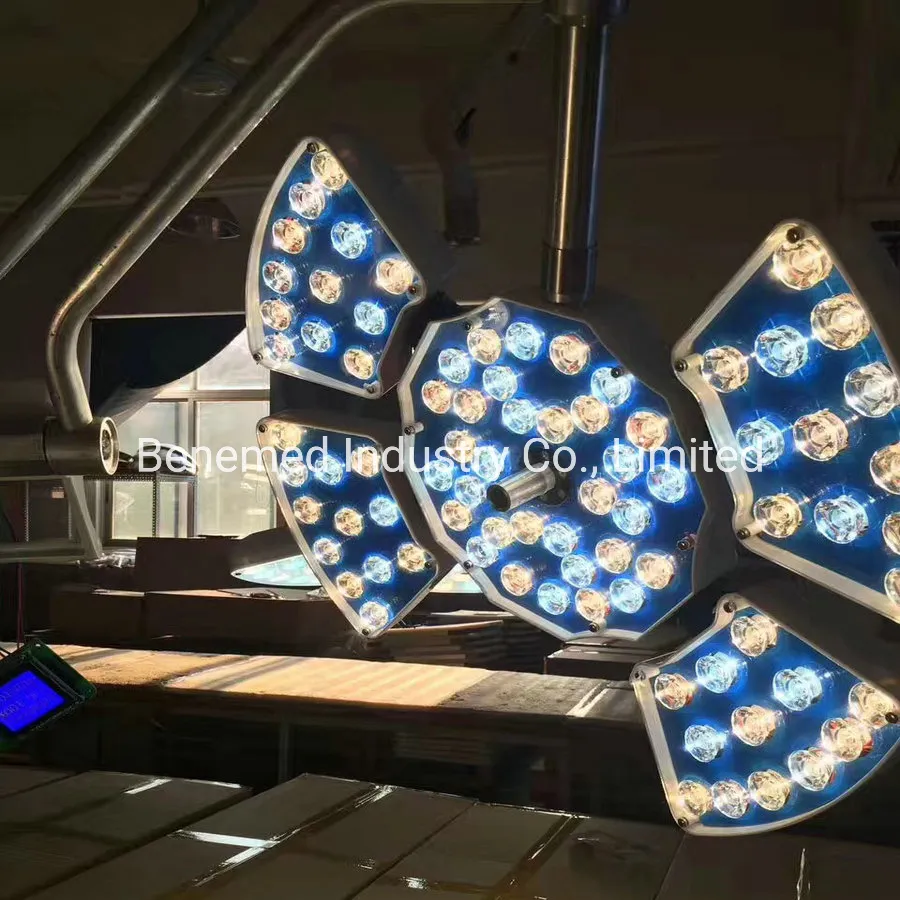

✔ Petal Design
✔ Long Life and Energy Saving
✔ Advanced Digital Imaging
✔ Optional Battery/Imaging System
| Item Model | V4+4; V4+5; V4+6; V4+7; V5+5; V5+6; 5+7; V6+6; V6+7; V7+7 |
| Color Temperature (Kelvin) | 3500 ~ 5000 adjustable |
| Illumination (LUX) | 120000 ~ 180000 adjustable |
| Focus Beam Depth (mm) | ≥ 900 |
| LED bulb lifetime (hours) | 80000 |
| Spot Diameter Range (mm) | 100 ~ 300 adjustable |
| Working Distance (mm) | 500-2000 |
| Color Rendering Index (CRI) | 97 |

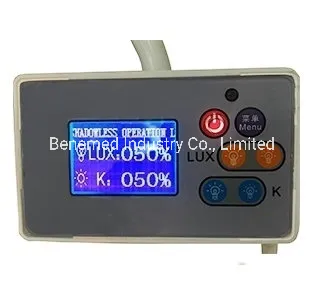

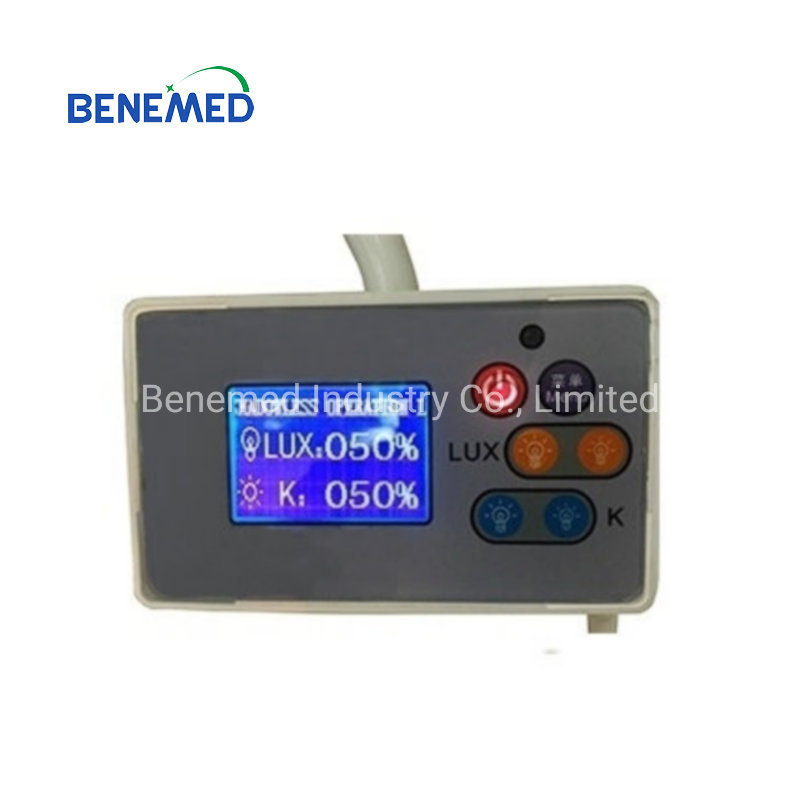

| Circuit Control and Panel | LED Display, Touch for Operation |
| Disinfection Handle | High Temperature High Pressure Disinfection |
| LED Chip Power | 200W 12V |
| Power Supply | 220V±10% 50HZ |
| Installation Height (mm) | 2500-3150 |
Frequently Asked Questions
What is the illuminance range of this LED surgical light?
The illuminance is adjustable between 120,000 and 180,000 LUX to suit various surgical needs.
Can the color temperature be adjusted?
Yes, the color temperature can be adjusted from 3500K to 5000K, providing optimal visual conditions for surgeons.
What is the expected lifespan of the LED bulbs?
The LED bulbs are designed for long-term use with a lifetime of approximately 80,000 hours.
Is the handle of the lamp sterilizable?
Yes, the disinfection handle is designed to withstand high-temperature and high-pressure sterilization processes.
What is the Color Rendering Index (CRI) of this light?
This light features a high CRI of 97%, ensuring accurate color representation of tissues during procedures.
What are the installation requirements for ceiling height?
The recommended installation height for these models ranges from 2500mm to 3150mm.
