Product Description
Basic Specifications
Product Description

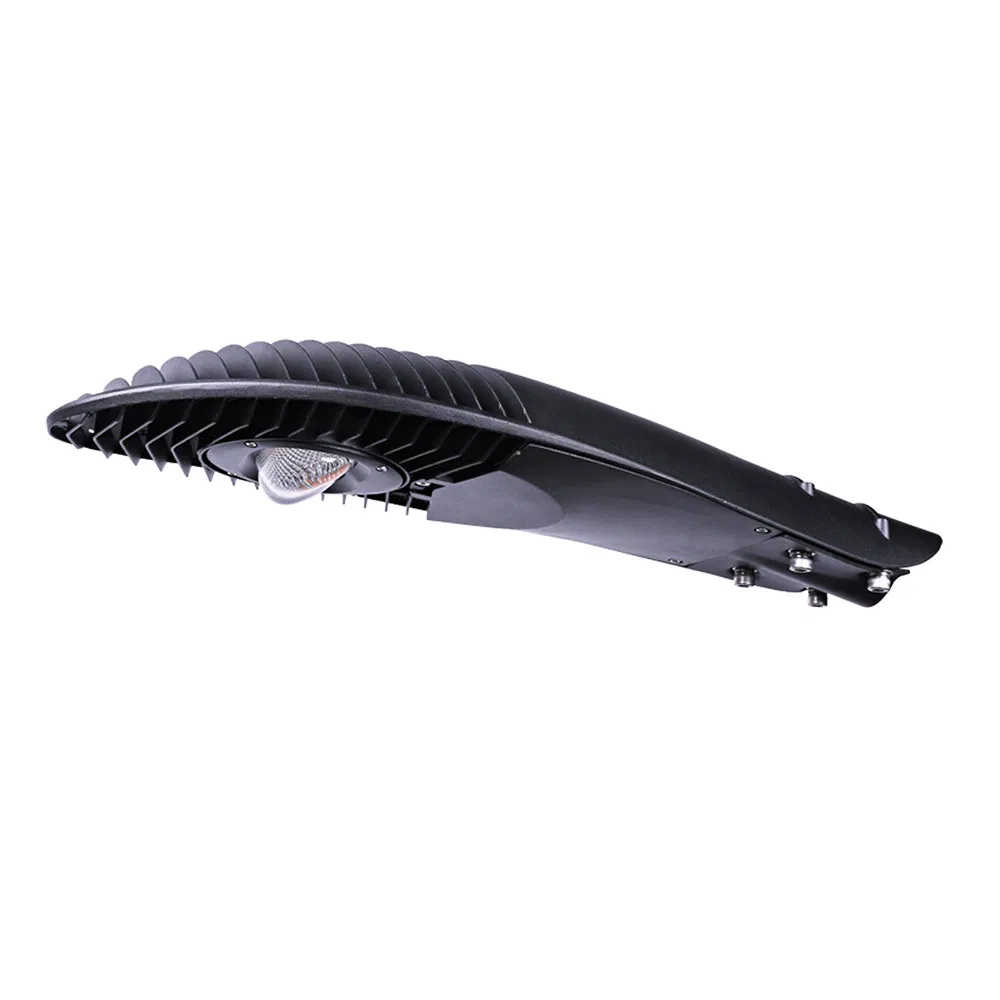

Cobra head COB street light YASL-04 Series
Installing Ways: Horizontal only
Material: Heavy-duty rugged pressure die-cast aluminum alloy housing
Optics: Ultra clear tempered glass and glass lens.
Protection: IP66 | IK08 | CE | RoHS
| Parameter | Specification Details |
|---|---|
| Product Code | YASL-04-120 |
| Input Wattage | 120W |
| Luminous Flux | 13200-14400 lm |
| Power Factor | PF≥0.95 |
| Color Rendering Index | Ra≥70 |
| Working Temperature | -40 to 50ºC |
| LED Lifetime | 50000h |
| Installation Pipe Diameter | Ø60mm |
| Installation Height | 8-12m |
| Packing Size | 860×330×160 mm |

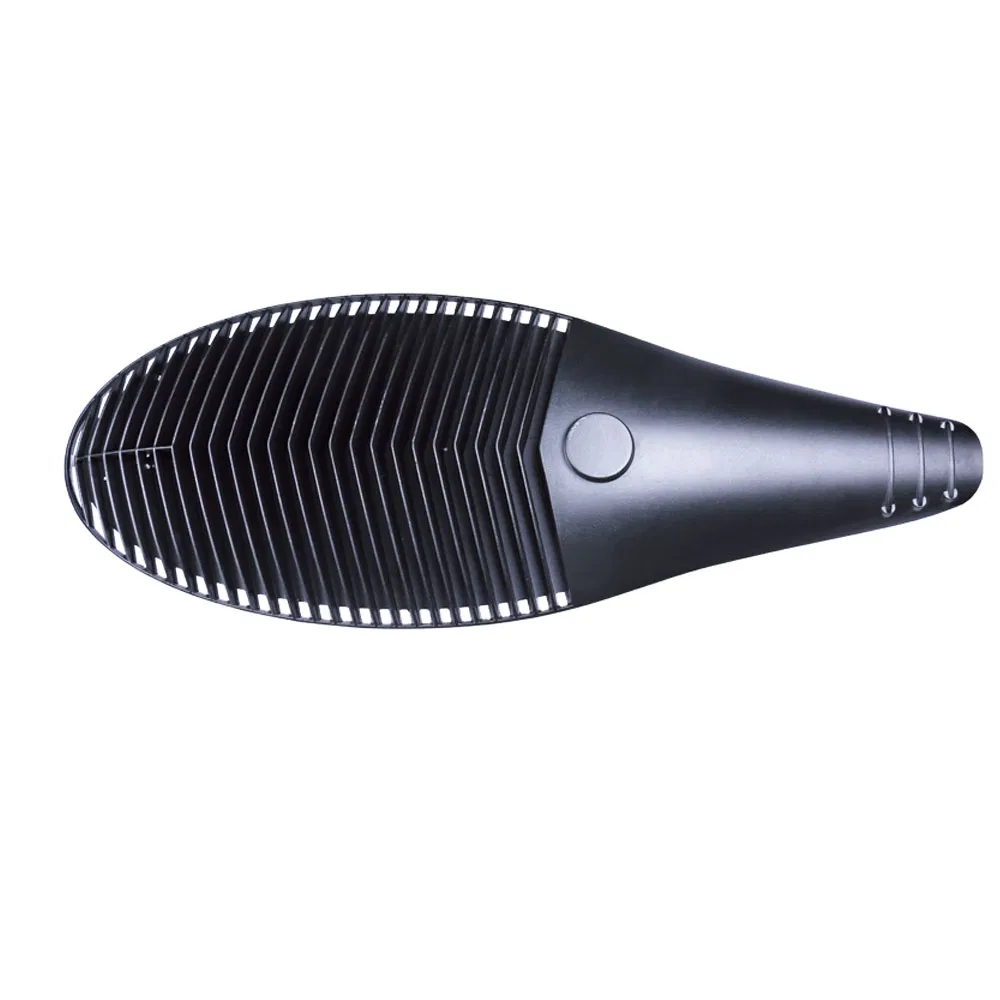

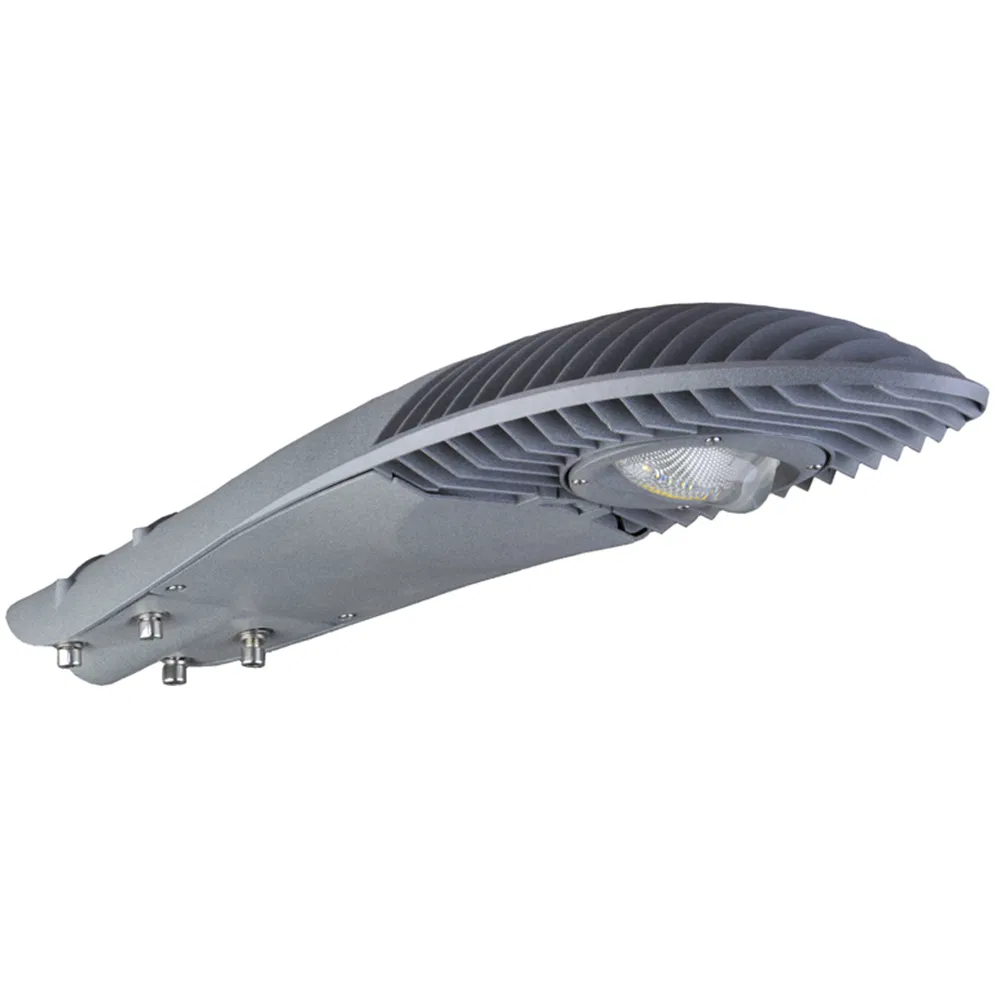

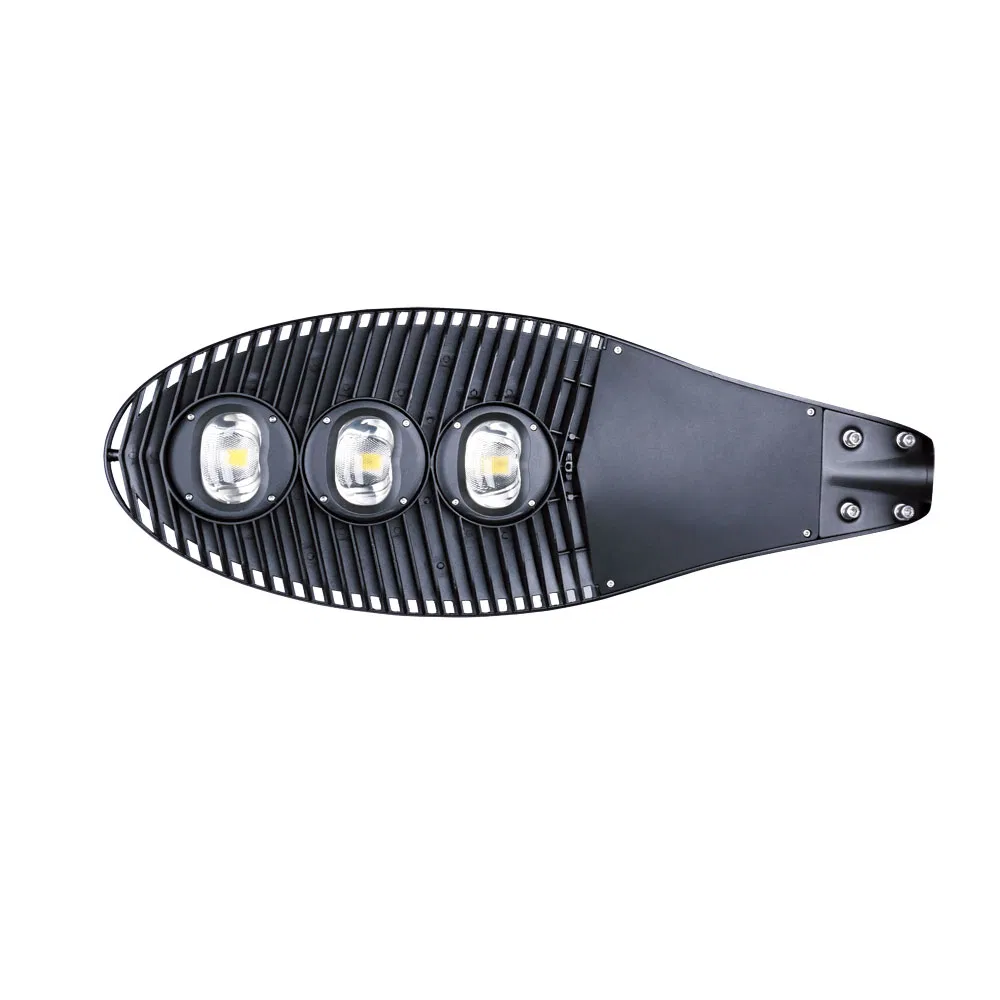

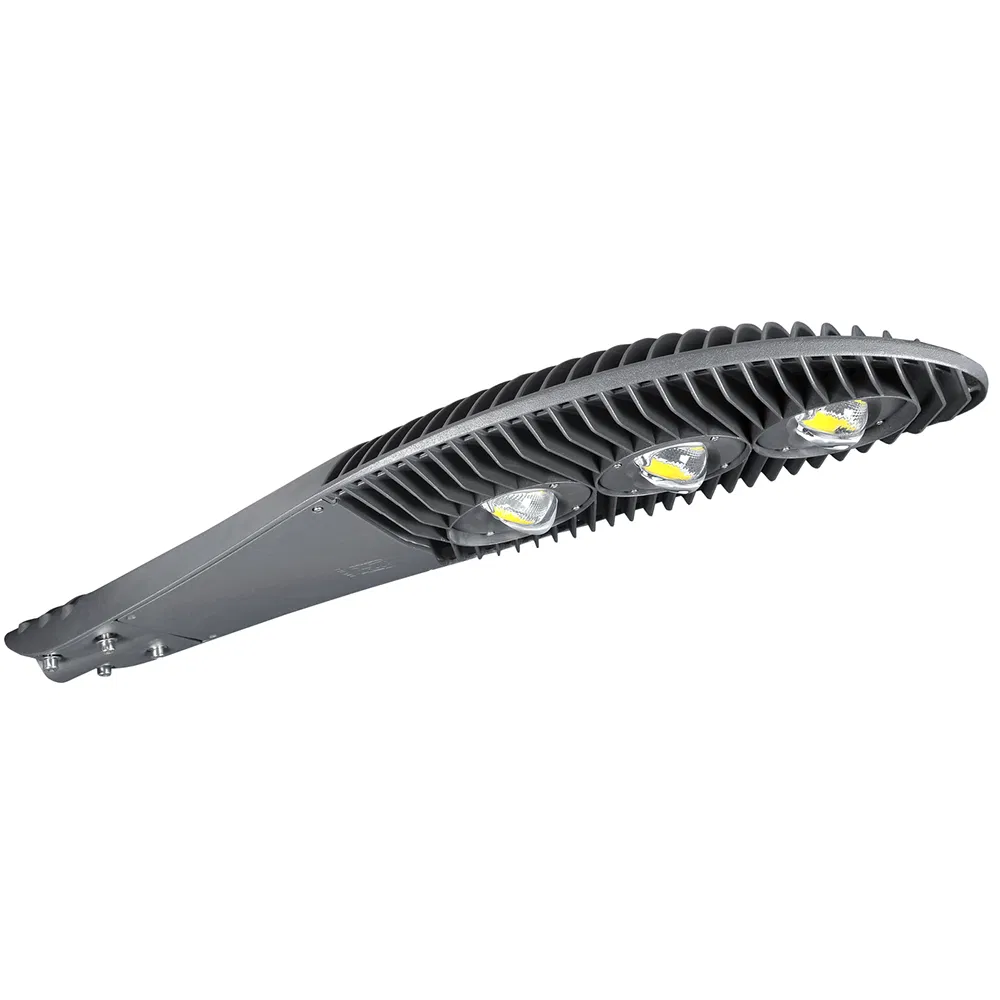

Detailed Photos
Technical Requirements
| Physical Requirements | ||
| Housing | Heavy-duty rugged pressure die-cast aluminium alloy | ISO 3522 |
| Cover / Gasket | Tempered Glass / Silicon Rubber | - |
| Protection | IP66 / IK08 | IEC 60529 / 62262 |
| Corrosion Test | Salt spray tests for 1000 hours | EN/ISO 9227 |
| LED and Optics | ||
| LED Make | Osram / CREE | - |
| LED Life | >100,000 hours @L95 | LM80 and TM21 |
| Lumen Efficacy | ≥ 160lm/W (at 25°C ambient) | LM-79 |
| Performance & Electrical | ||
| Surge Protection | 10KV | - |
| Power Factor / THD | >0.90 / <20% | IEC 60598-2-3 |
| Dimming Options | 1-10V / DALI | - |
About Our Factory

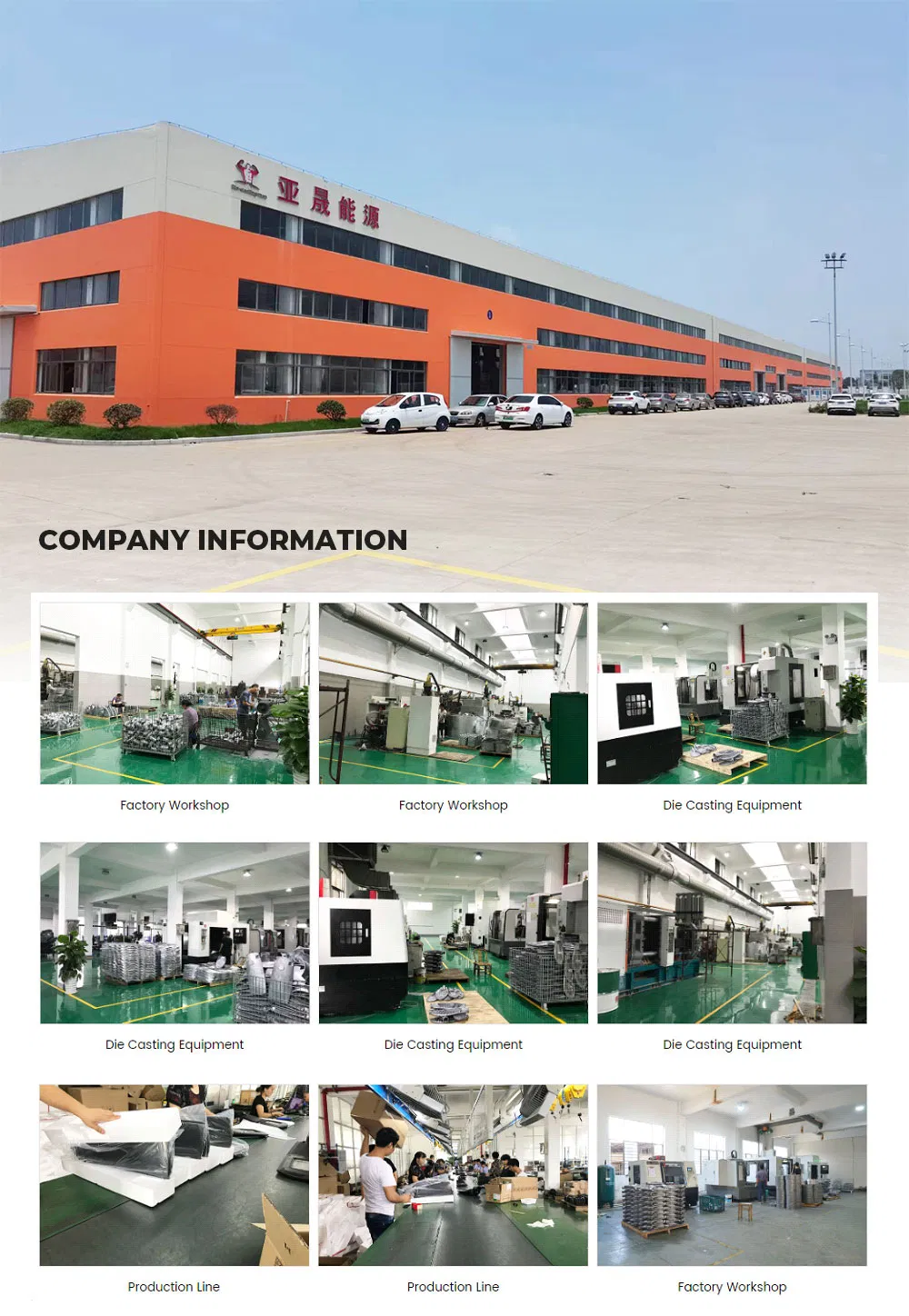

Our company has rich experience in street lighting and die casting manufacturing, operating as a production service factory integrated in design, production, and sales. Our facilities include die casting injection machines, CNC machining, powder coating workshops, and advanced assembly lines.
We support processing, customization, OEM & ODM, assembly, and rigorous testing. With a complete product research and development team and a mature quality management system, we ensure high standards for all lighting and die casting industrial products.
