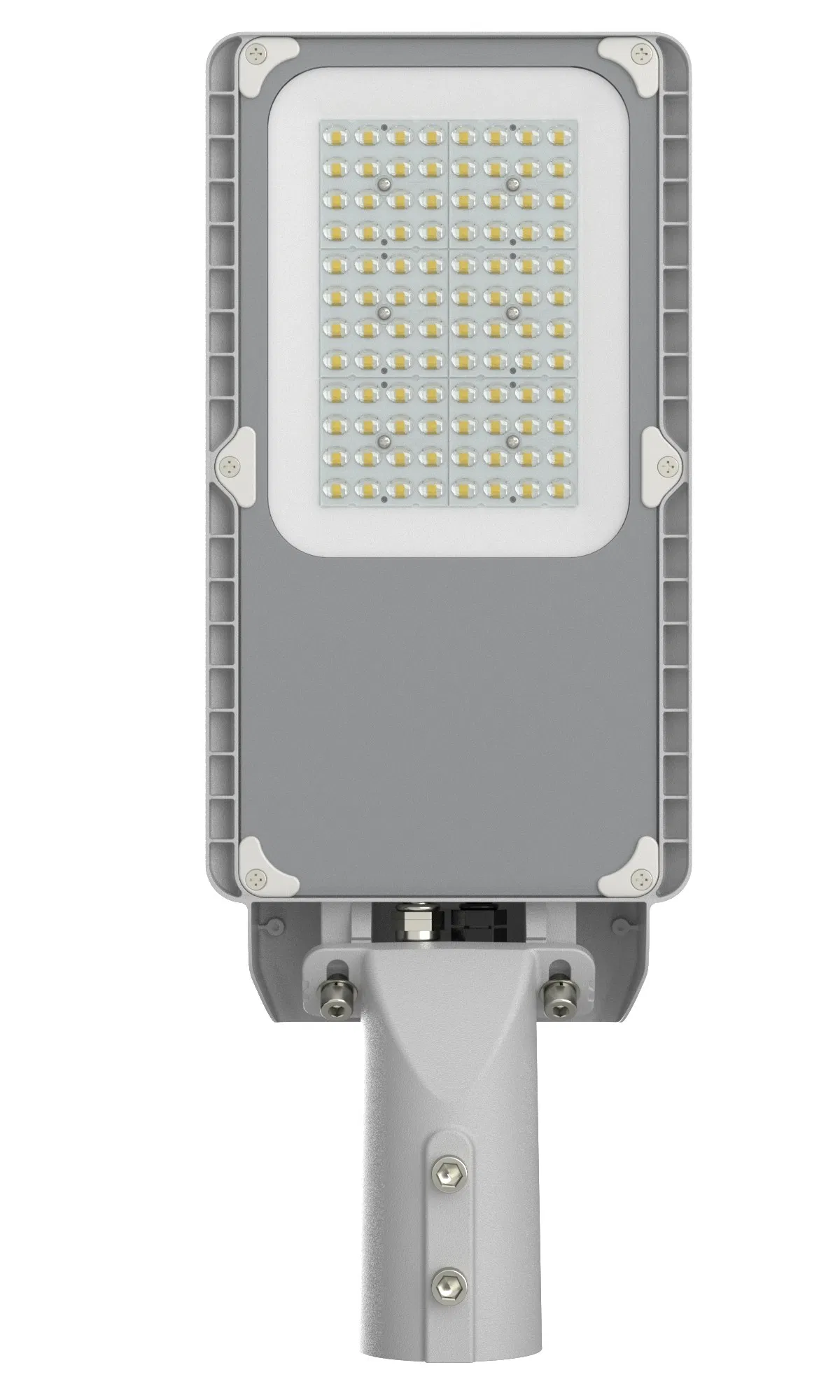

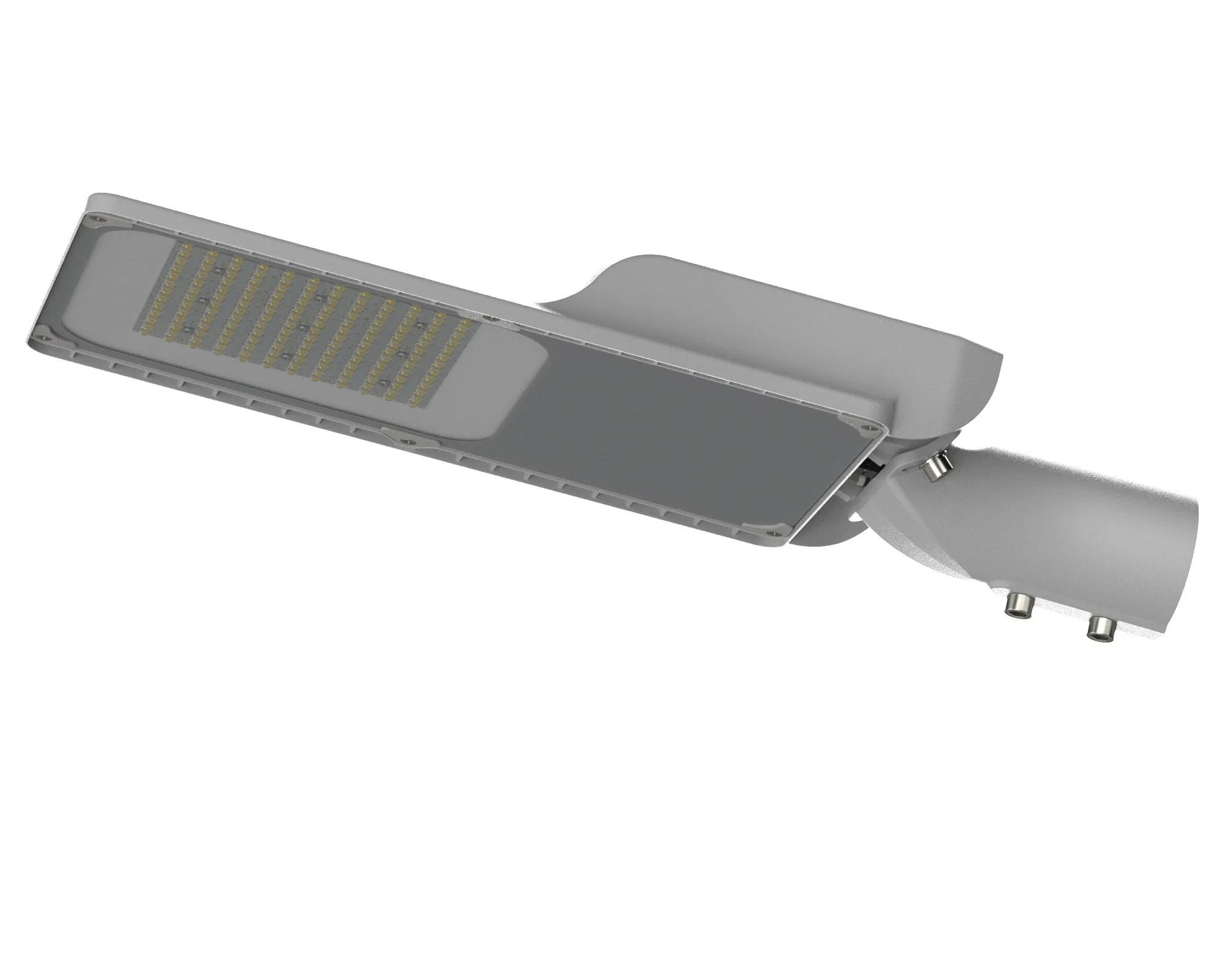

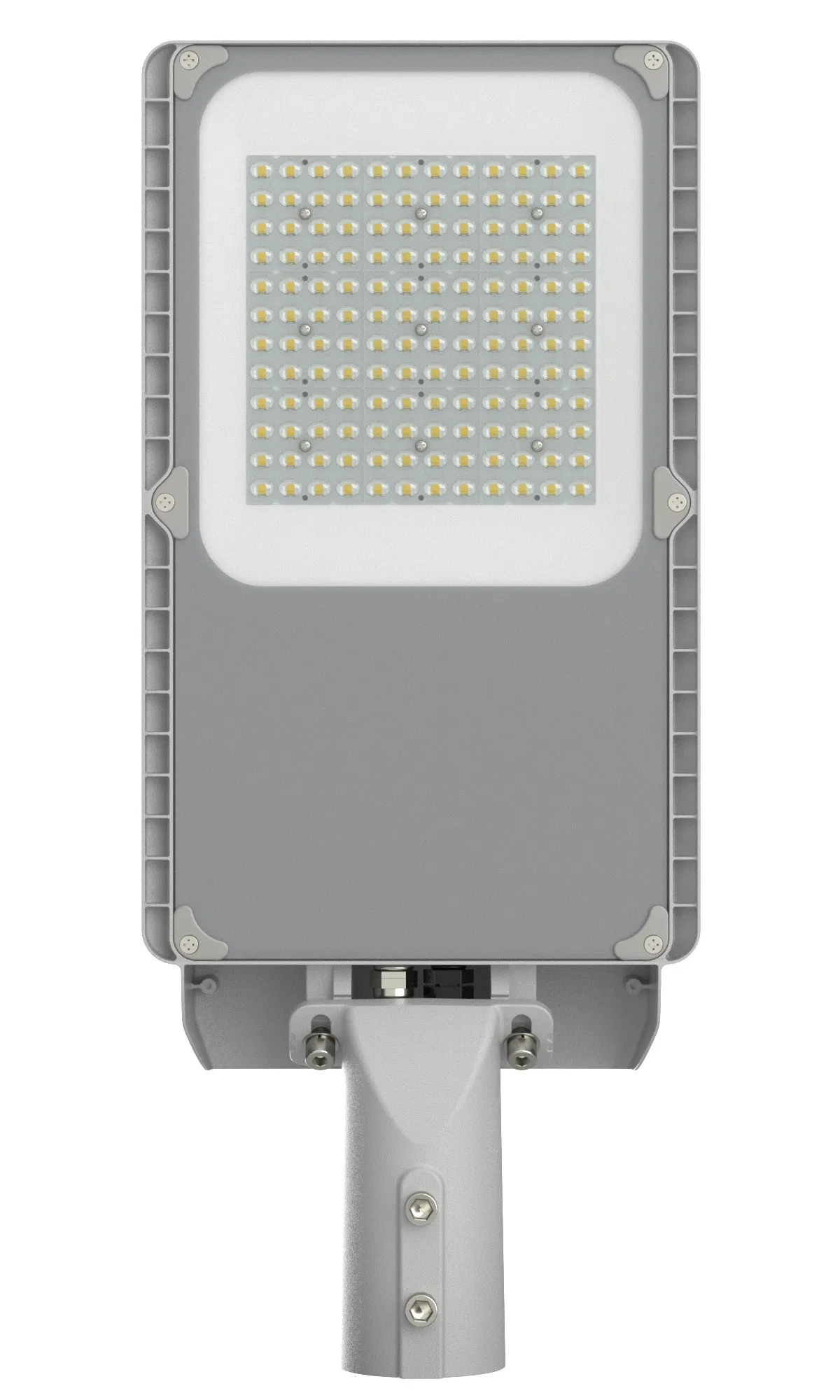

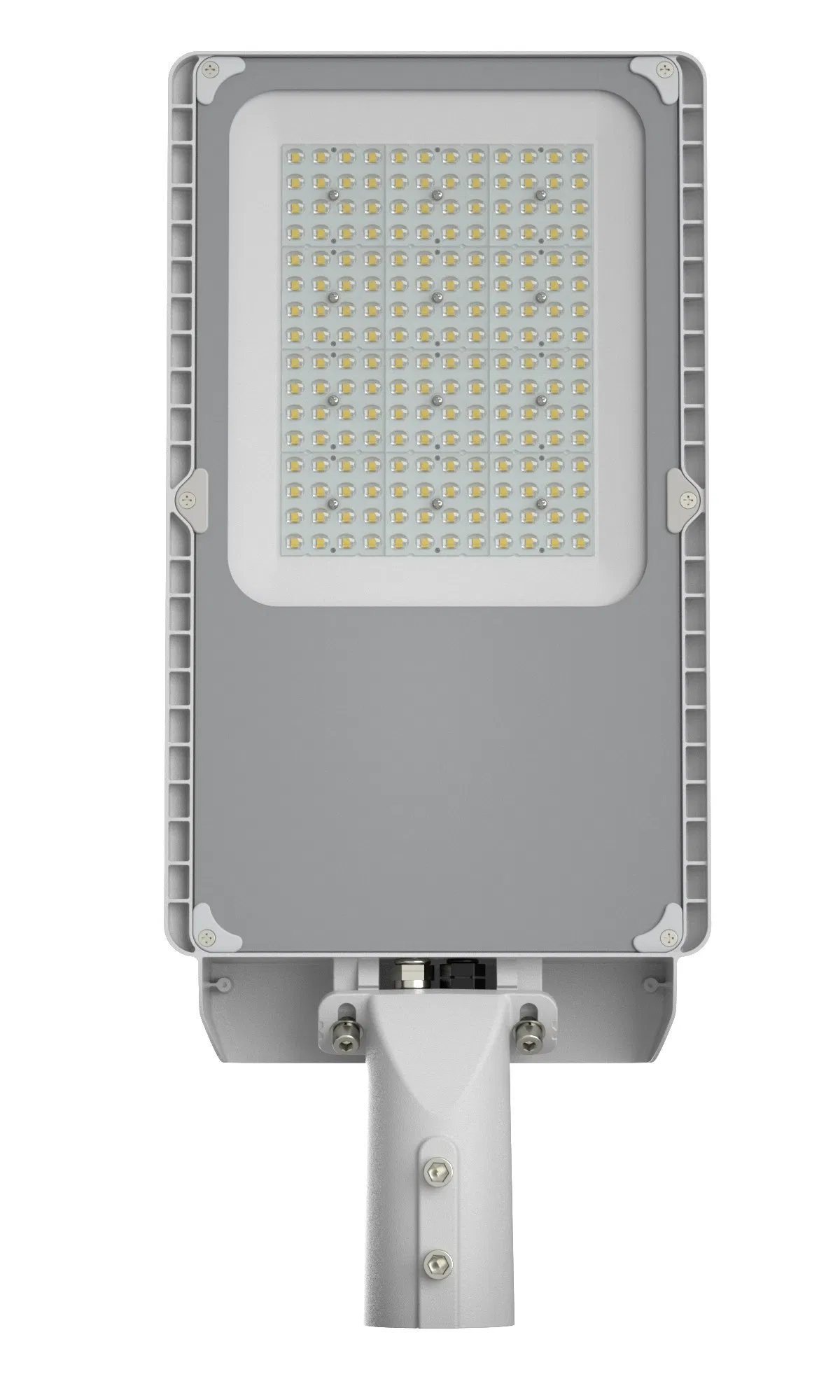

LED Street Lamp, Municipal Street Lamp, Solar Street Lamp, Smart Street Lamp, Municipal Engineering Street Lamp, 60W/80W90W/100W/120W/150W/180W/200W
Product Description
Basic Specifications
Model NO.:ZN-LEDLD-01
Material:Aluminum
Power Range:60-100W
IP Rating:IP65
Certification:CCC, CE, CQC
Input Voltage:100-240V
LED Brand:CREE
Application:Square, Highway, Garden, Parking Lot
Origin:China
Detailed Parameter Table
| Product Model | ZN-LD-04-LED-50W-200w | Power Brand | Meanwell, Maoshuo, Songsheng, Jiansen, Infinite |
| Input Voltage | 100-240V | Lighting Effect | 110-150LM/W |
| LED Chip Brand | Cree, Puri | Intelligent System | PLC / Mobile Phone Compatible |
| Warranty | 2-5 Years | Power Efficiency | >0.97 |
| Dimmable | 1-10V / PWM Optional | Surge Protection | 10KV |
| Operating Voltage | AC100V-480V Optional | Protection Level | IP66 |
| Beam Angle | T2 / T3 / T4 | Color Temperature | 3000K, 4000K, 5000K, 6500K |
| CRI | >80 | Service Life | >50,000 Hours |
| Operating Temp | -40ºC ~ +70ºC | Shell Color | Black, Gray |
Product & Packaging Dimensions
| Model | ZN-LD-04-LED60W | ZN-LD-04-LED150W | ZN-LD-04-LED200W |
|---|---|---|---|
| Power | 60W | 90W-150W | 120W-200W |
| Product Size | 540*290*100 | 640*290*100 | 740*290*100 |
| Net Weight | 2.7kg | 3.3kg | 3.9kg |
| Gross Weight | 3.2kg | 4.2kg | 4.8kg |
| Package Size | 580*320*100 | 670*320*100 | 760*320*100 |

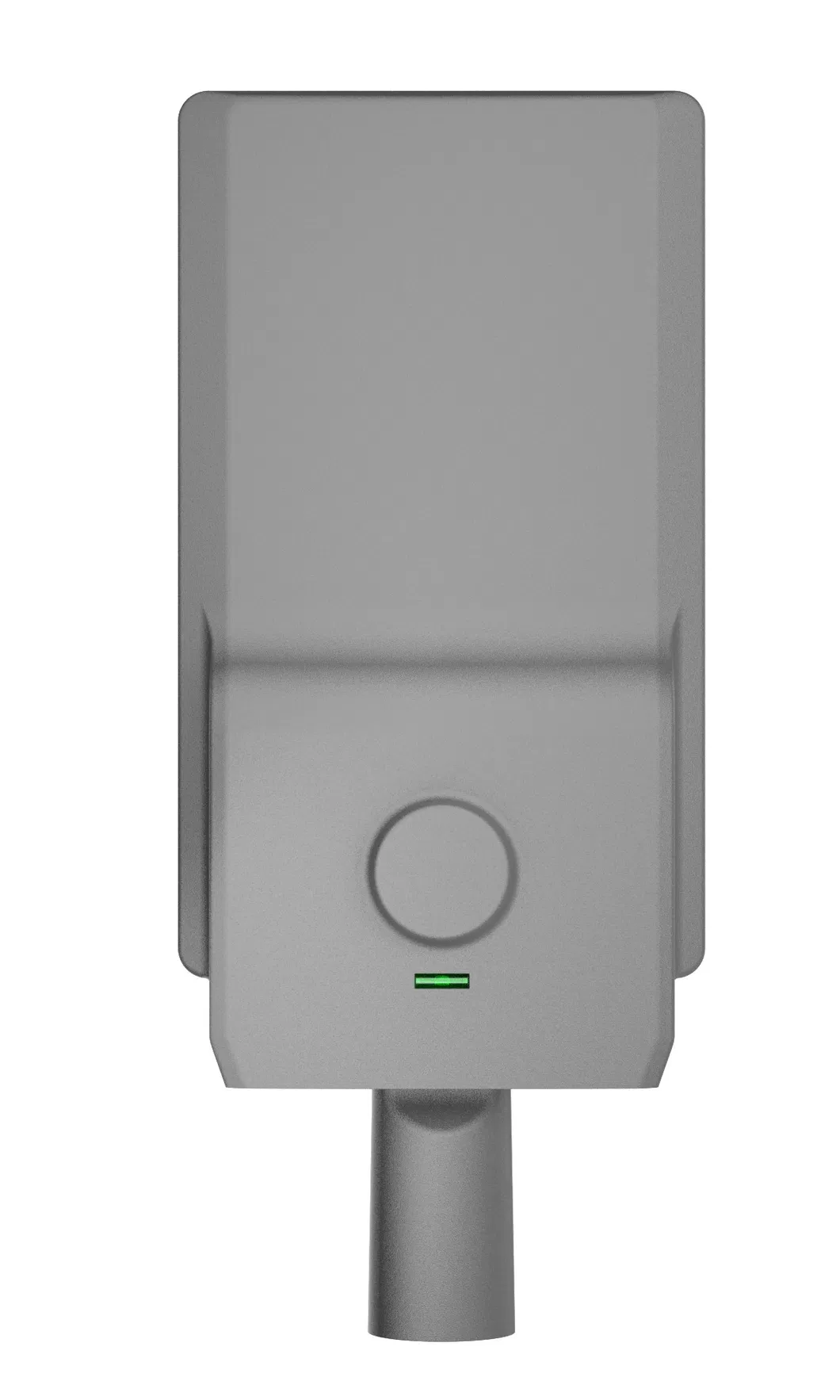

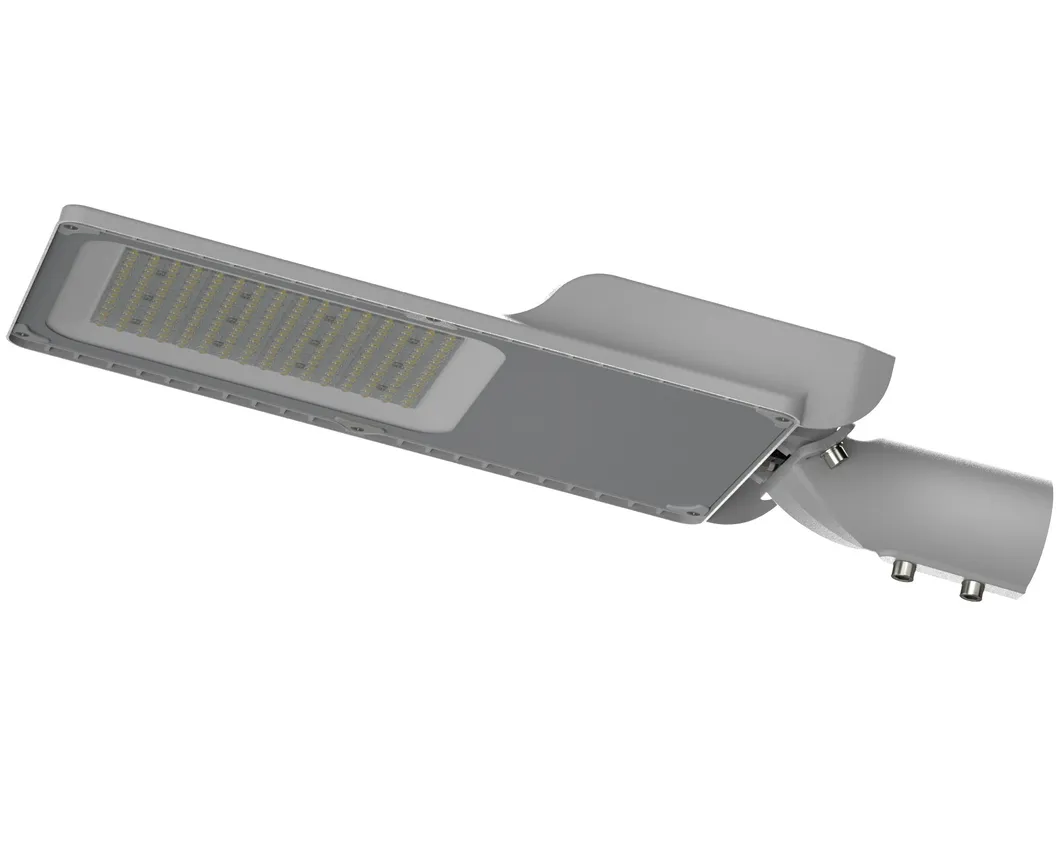

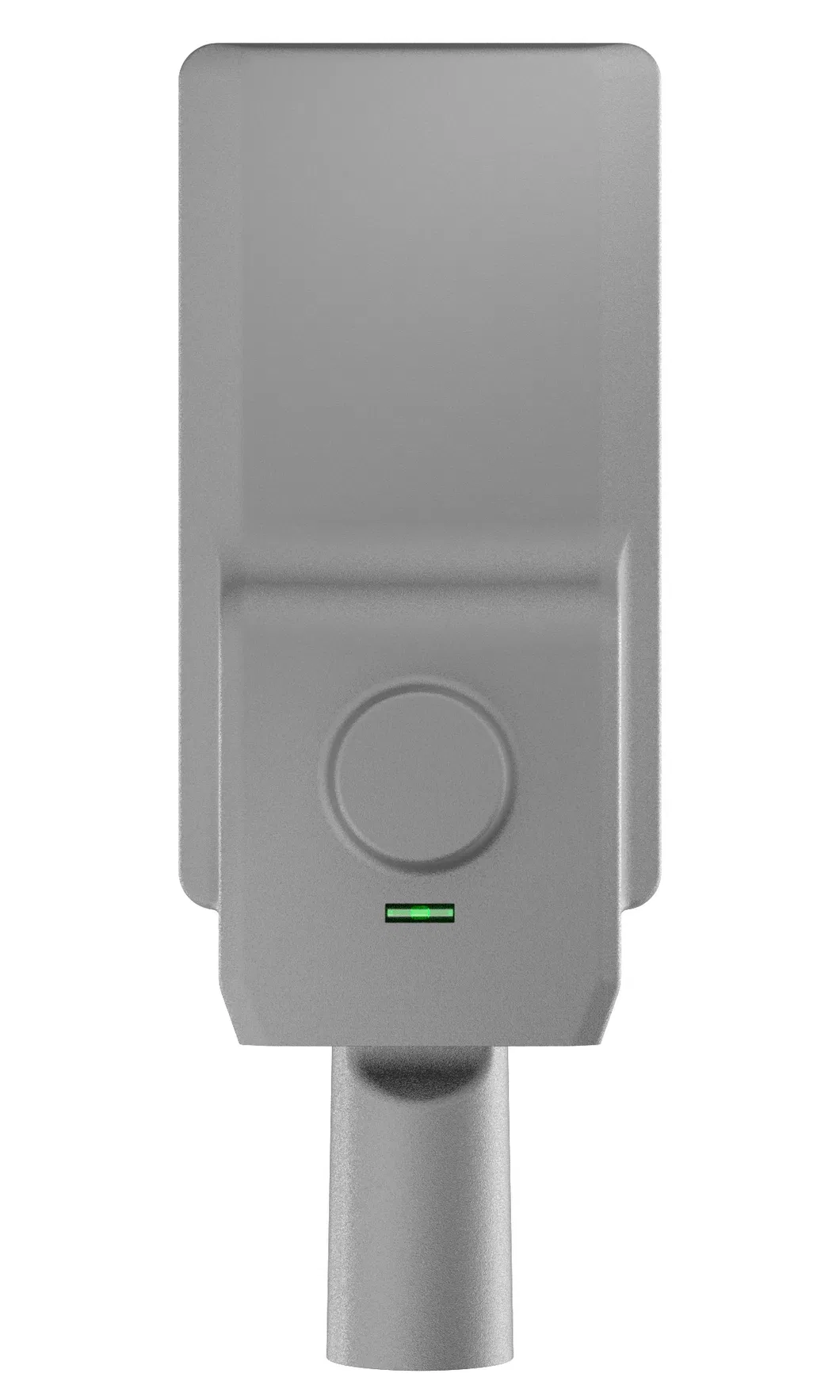

Product Showcase
High-performance LED street lamps for municipal, solar, and smart engineering projects.
Features & Advantages
01

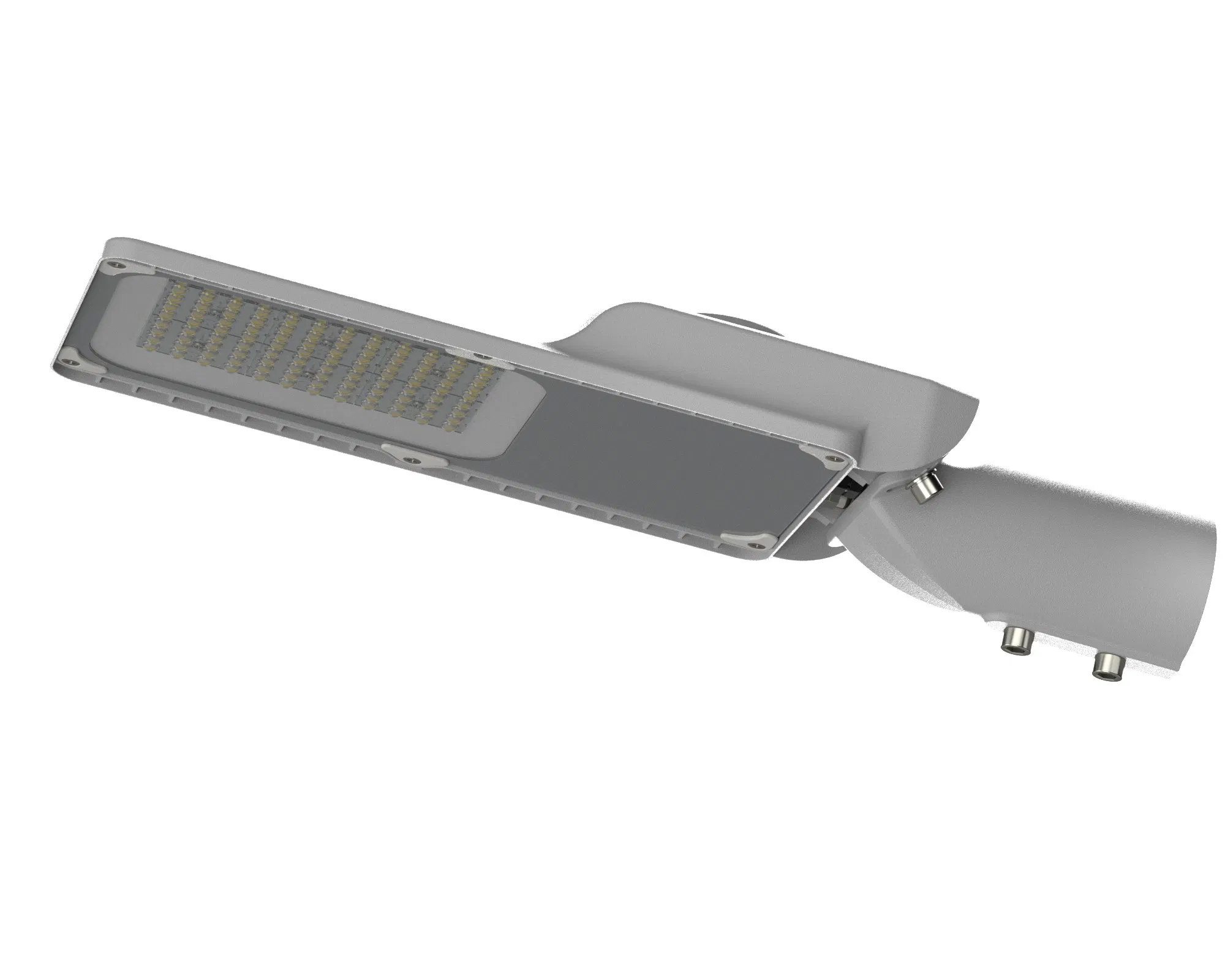

Adjustable angle design to accommodate different lamp poles. The lamp body is die-cast aluminum, which can dissipate heat efficiently.
02
Four models available with a power range of 60W to 200W to meet various lighting requirements.
03
High brightness 3030 SMD LEDs (150 LM/Watt) paired with Meanwell drivers for superior performance.
04
IP66, CE, and RoHS certified with a 50,000-hour service life and 5-year warranty.
05
Smart light control: Automatically switches at dawn and dusk for energy efficiency.
06
Lora intelligent system support for single group or area-wide remote control.

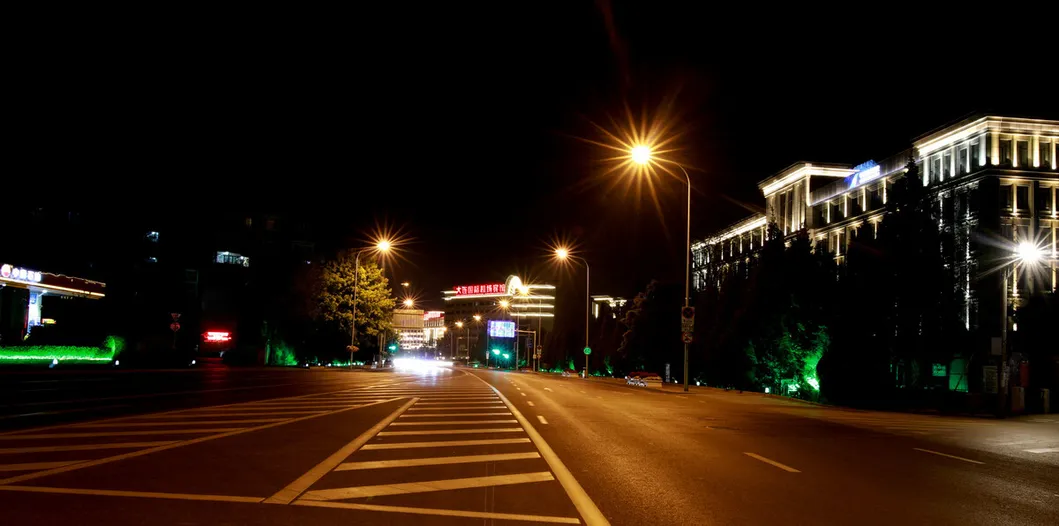

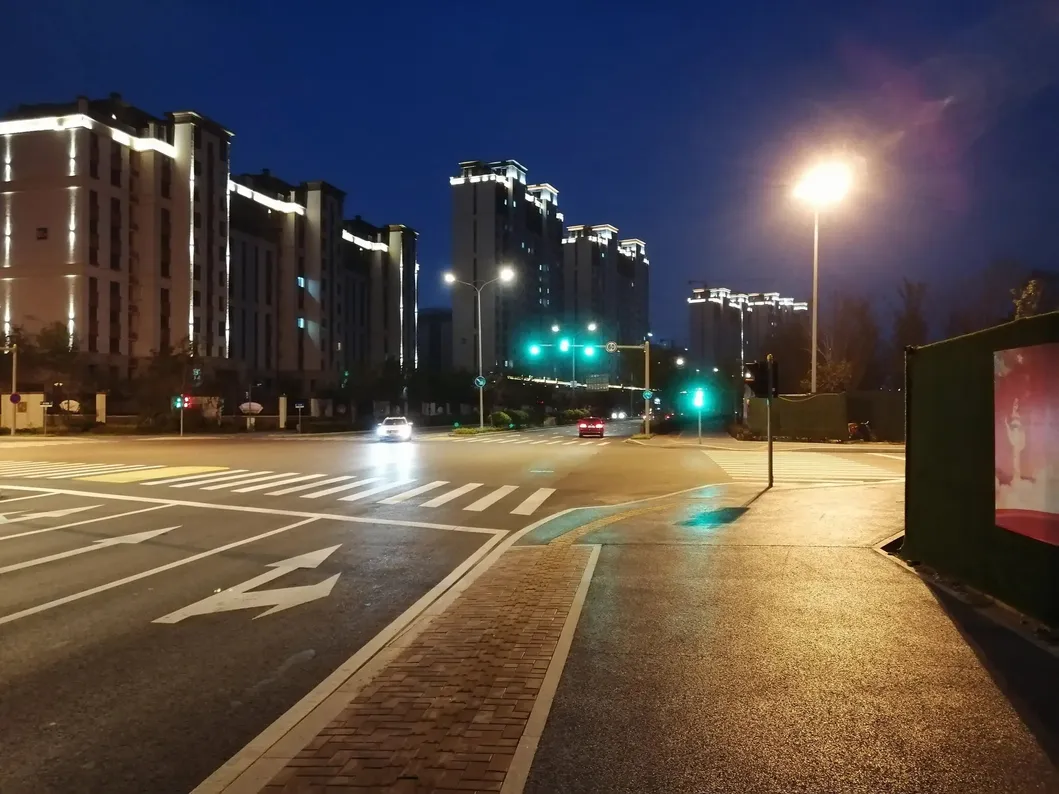

Scope of Application

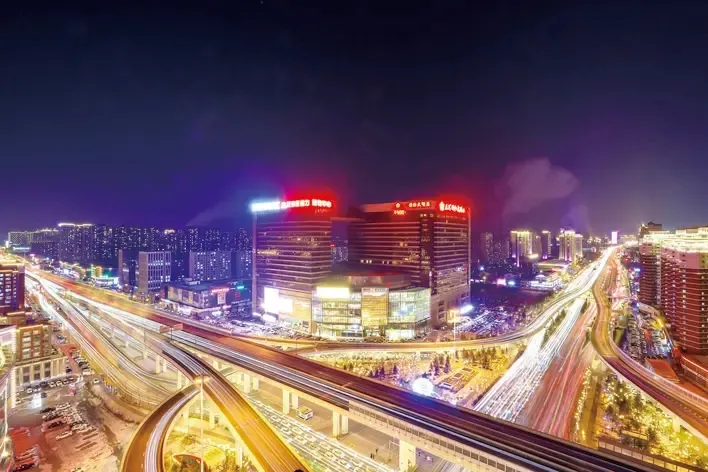

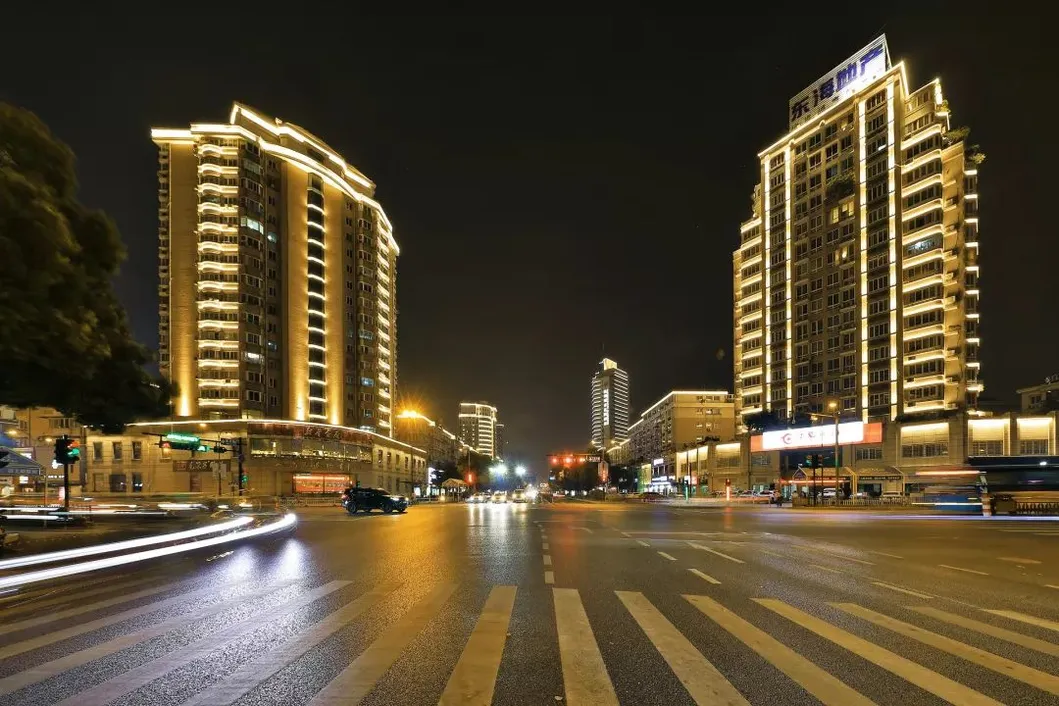

Ideal for urban expressways, main roads, welcome roads, government agency access roads, large public buildings, and commercial centers.
Frequently Asked Questions
Q: What is the protection rating of this street lamp?
A: The lamp is rated IP66, making it highly resistant to dust and powerful water jets, perfect for outdoor municipal use.
Q: What is the expected lifespan and warranty?
A: The product has a service life of over 50,000 hours and comes with a comprehensive 2 to 5-year warranty depending on configuration.
Q: Can the light intensity be adjusted?
A: Yes, the lamps support 1-10V and PWM dimming options, and can be integrated with PLC or mobile intelligent systems.
Q: What materials are used for heat dissipation?
A: The body is constructed from high-quality die-cast aluminum, which provides excellent thermal management and durability.
Q: Does the lamp operate automatically?
A: Yes, it features an automatic switch that triggers at dawn and dusk to optimize energy consumption.
Q: What power options are available for different road types?
A: We offer a wide range of specifications from 50W to 200W to suit everything from garden paths to urban expressways.
