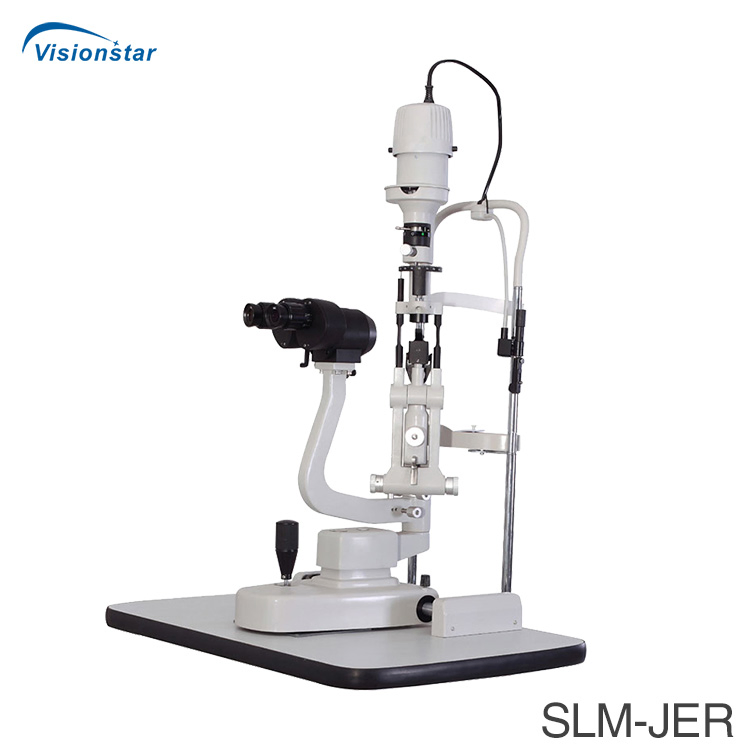

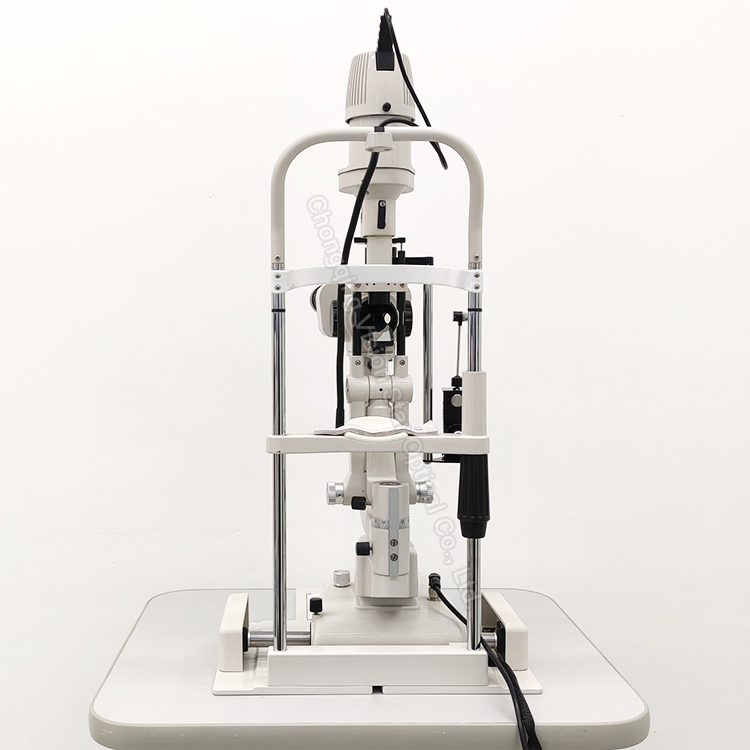

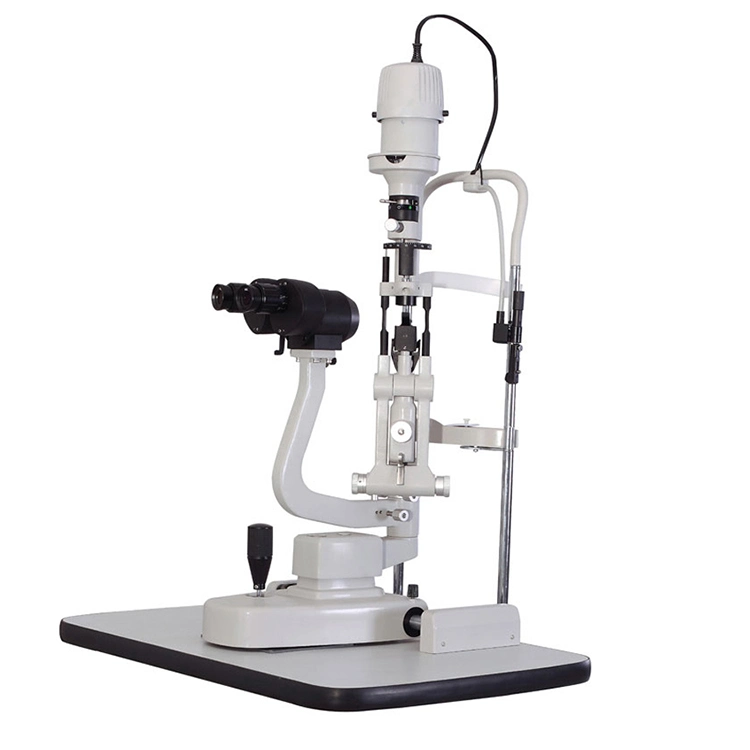

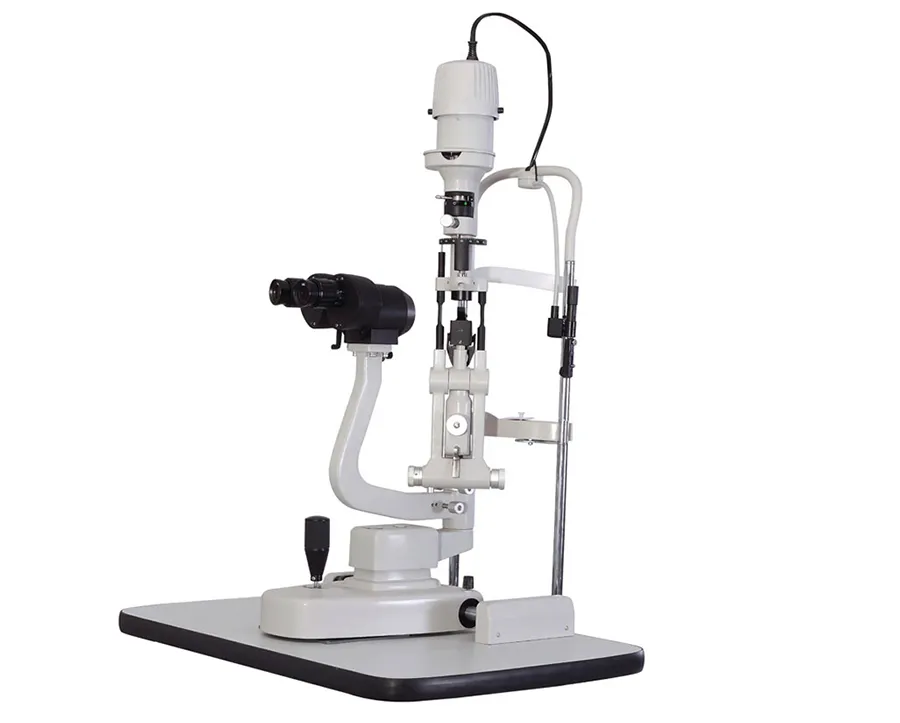

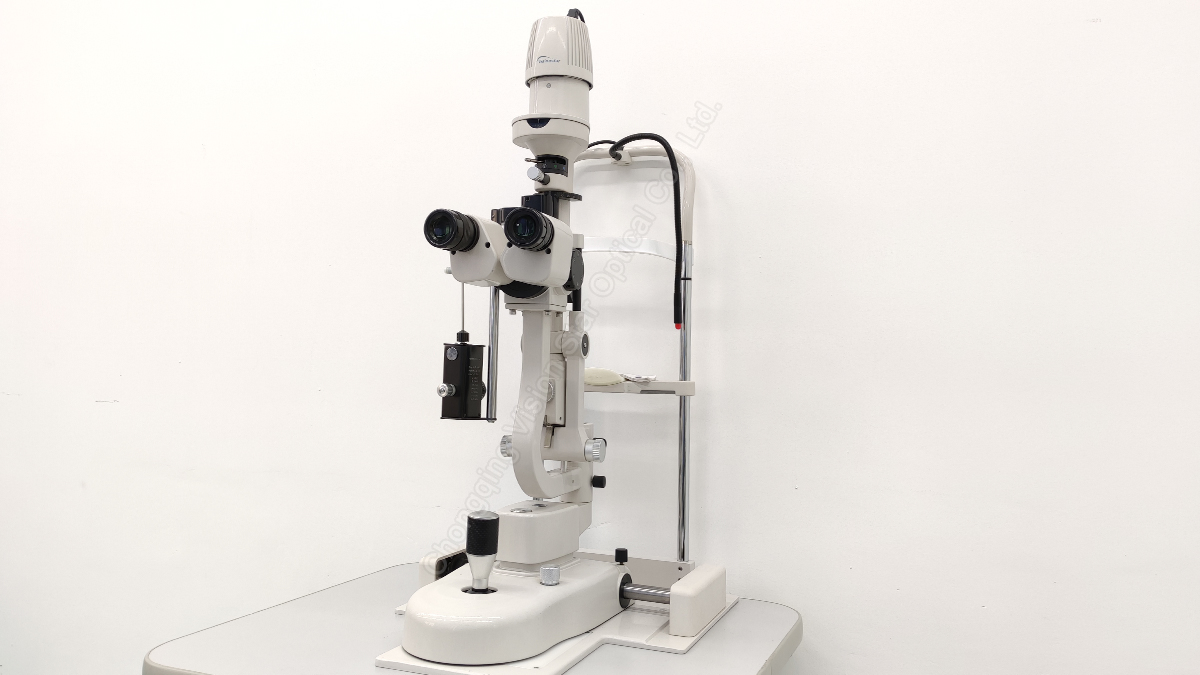

Ophthalmic Diagnostic Machine Slm-Jer Slit Lamp (2 Steps: 10X, 16X)
Product Description
📋 Basic Info.
Model NO.
SLM-JER Slit Lamp
Certificate
Ce ISO FDA
Filter
Heat Absorption; Grey; Redfree; Cobalt Blue

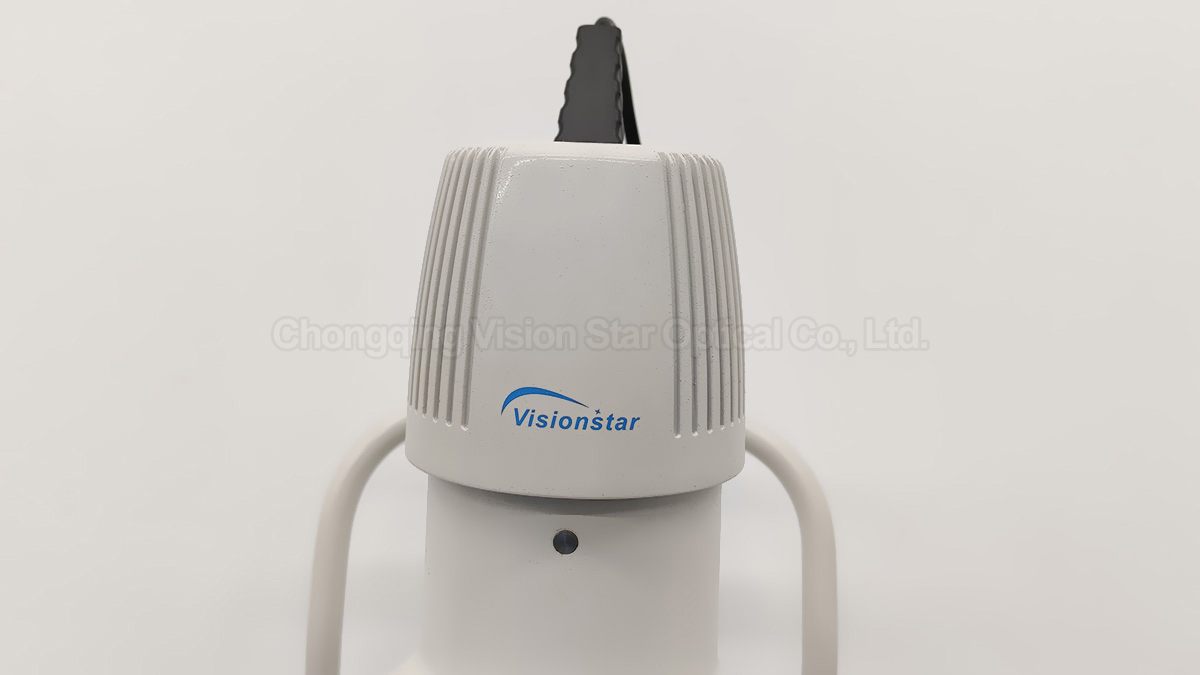

Illumination Bulb
German Osram Halogen Tungsten Lamp
Fixation
Red LED

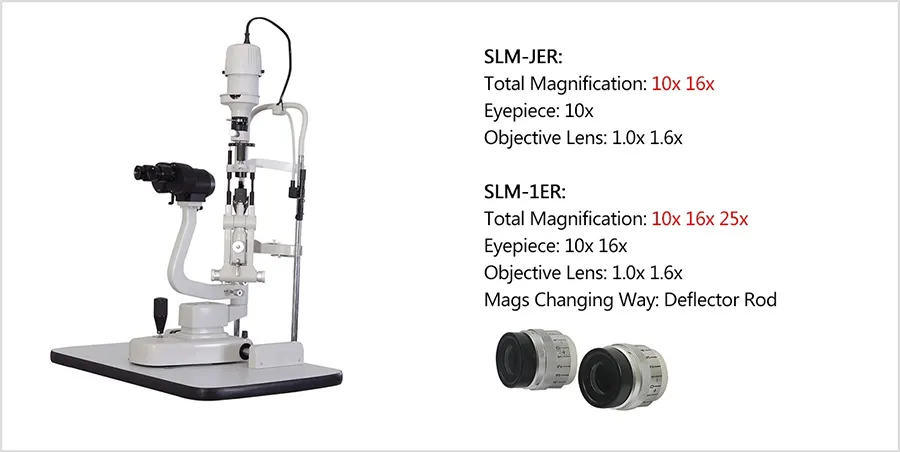

Total Magnifications
10X 16X
Warranty
1 Year
Transport Package
Standard Exporting Package
Trademark
VSO
Origin
Chongqing, China
Production Capacity
100 Units/Month
💡 Product Features
- Converging Optics Design;
- Two Magnifications (10X, 16X) with Different Eyepieces;
- Main Mirrors Use Imported Material. All Mirrors Have Been Carried out Moisture Proof, Mould Proof and Coating Processing for Many Times, Which Prove Its Good Optic Performance in Different Weather Condition.
- German Industrial Bulb, High-Lightness without Harsh, Quick Heat Dispersion;
- One Piece Preset Lens and One Diffuse Lens for Free

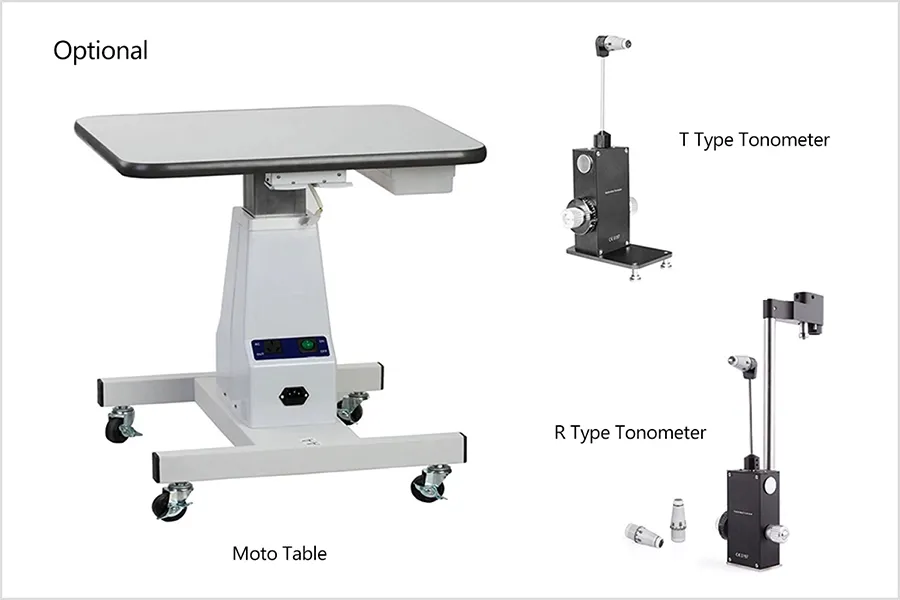

- International Standard Accessory Interface Which Can Connect Kinds of Laser Adapter and Goldman Tonometer.
⚙️ Slit Lamp Specification
| Model | SLM-JER |
| Microscope Type | Converging |
| Magnification Change Way | Deflector Rod |
| Eyepiece Magnification | 10x |
| Total Magnifications | 10x 16x |
| Diopter Adjustment | -5D ~+5D |
| Slit Width | 0-14MM Continuous |
| Slit Height | 1-14MM Continuous |
| Slit Angle | 0°- 180° Adjustable |
| Slit Inclination Angle | 5°,10°,15°,20° |
| Light Spot Diameter | 0.2mm, 2mm, 3mm, 5mm, 10mm, 14mm |
| Filter | Heat Absorption; Grey; Redfree; Cobalt Blue |
| Fixation | Red LED |
| Illumination Bulb | German OSRAM Halogen Tungsten Lamp |
❓ Frequently Asked Questions
What are the available magnification levels for the SLM-JER model?
The SLM-JER Slit Lamp offers two magnification steps: 10X and 16X, which can be adjusted using the deflector rod.
What type of illumination bulb is used in this slit lamp?
It utilizes a high-quality German OSRAM Halogen Tungsten Lamp, known for high lightness and quick heat dispersion.
Can I connect other diagnostic tools to this device?
Yes, it features an international standard accessory interface that can connect various laser adapters and Goldmann tonometers.
What filters are integrated into the SLM-JER?
The device includes four built-in filters: Heat Absorption, Grey, Red-free, and Cobalt Blue.
How is the optical performance maintained in different weather conditions?
The main mirrors are made of imported materials and undergo multiple moisture-proof, mould-proof, and coating processes to ensure consistent optical performance.
What is the adjustment range for the slit width and angle?
The slit width is continuously adjustable from 0-14mm, and the slit angle can be adjusted from 0° to 180°.
