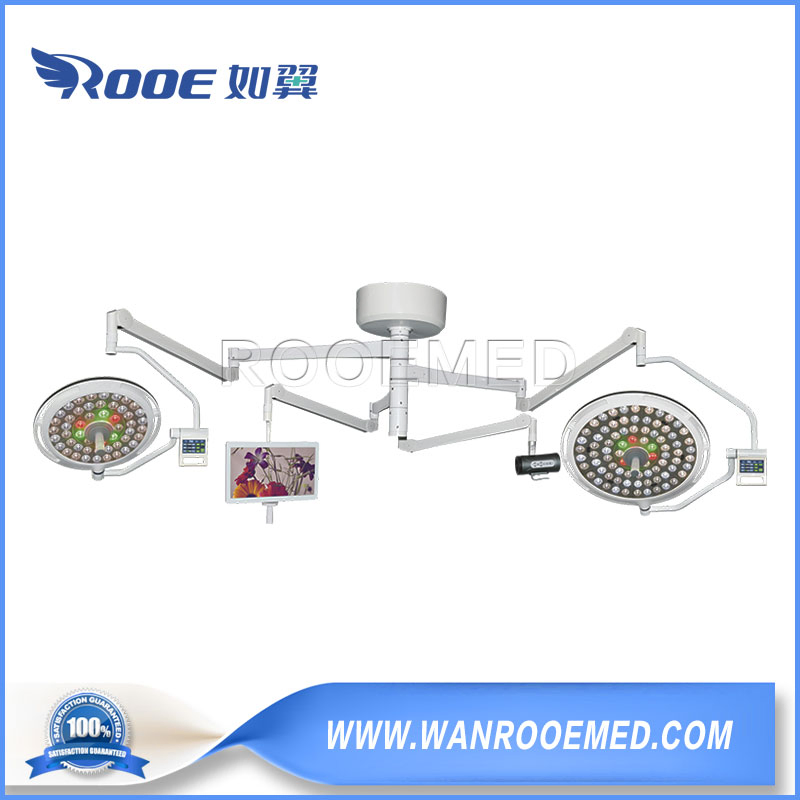

Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
1 / 5
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function
Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function

Operating Room Double Head Ceiling Ot LED Surgical Light Shadowless Lamp with Surveillance Camera Function

Customization: Available
Type: Operating Light
Kind: Surgical Lamp
Send Inquiry

Product Description

Basic Information
Model NO.
AKL-Kare Series
Certification
CE, FDA, ISO13485
Group
Adult
LCD Display
With LCD Display
Color Temperature
4000-5000K
Illumination
40000-120000/160000lx
Lamp Power
110/145va
Spot Diameter
180-280mm
Colour Rendering Index
≥90
Lighting Depth
≥950/1100mm
LED Bulb Life
≥50000h
Production Capacity
1000PCS/Month
Product Description
LED series shadowless surgical lamps are designed for modern operating rooms, meeting stringent lighting requirements for complex procedures such as brain and thoracic surgery. Utilizing advanced color temperature compensation technology, these lamps provide exceptional color reduction. The ultra-thin, streamlined lamp cap and imported balance arm system ensure stable positioning and flexible movement. With a lighting depth of up to 1000mm and an almost unlimited LED life expectancy, this system offers both reliability and superior performance for medical professionals.
LED Surgical Light
Key Features & Design

Advanced Optical Lens

PMMA optical lens with special concentrating technology improves light efficiency and reduces glare while lowering power consumption.

Flexible Operation

Square arm balance system allows the lamp head to be vertically pulled and rotated 360° with ease. Removable handle supports 134ºC high-pressure disinfection.

Intelligent Dimming

PWM non-pole dimming meets various brightness needs. Optional gesture sensing allows for non-contact brightness adjustment.

Shading Compensation

Optional intelligent technology automatically increases brightness in other areas when the surgeon's head blocks part of the light source.

HD Camera System

Optional Full HD central or independent camera systems enable remote consultation, teaching, and high-quality surgical recording.

Durable LED Source

Equipped with German Osram LED bulbs, providing an average service life of over 50,000 hours for long-term investment protection.

Technical Specifications
Specifications AKL-K700 AKL-K500
Voltage AC100-240v 50Hz/ 60Hz
Illumination 40000-160000Lx 40000-120000Lx
Color Temperature 4000-5000K (Adjustable)
Lamp Power 145VA 110VA
Spot Diameter 180-280mm
Lighting Depth ≥950mm ≥1100mm
LED Bulb Number 81 51
LED Bulb Brand German Osram
Product Gallery

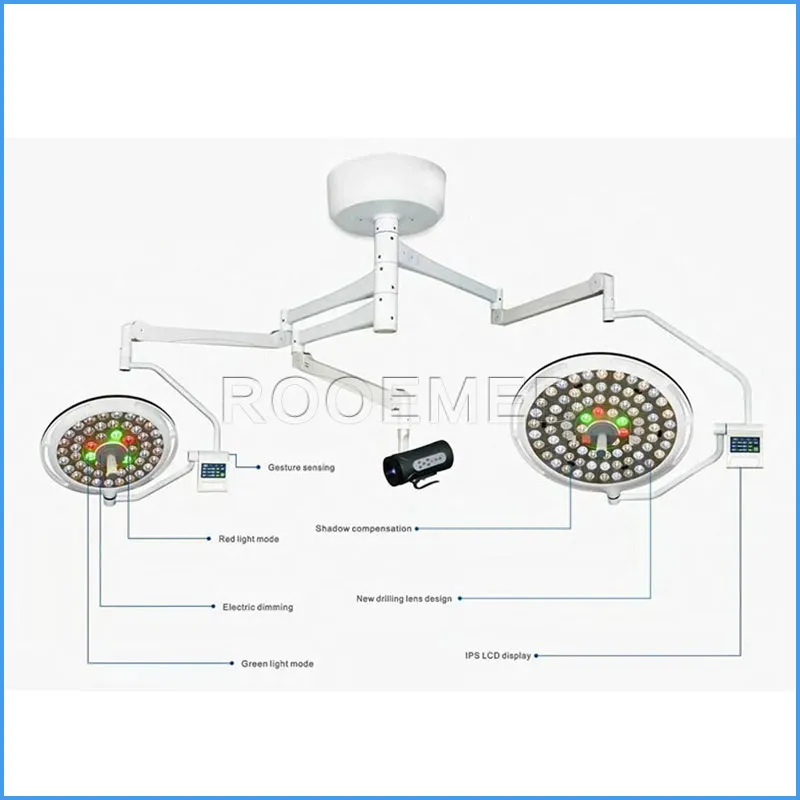

Surgical Light Detail 1

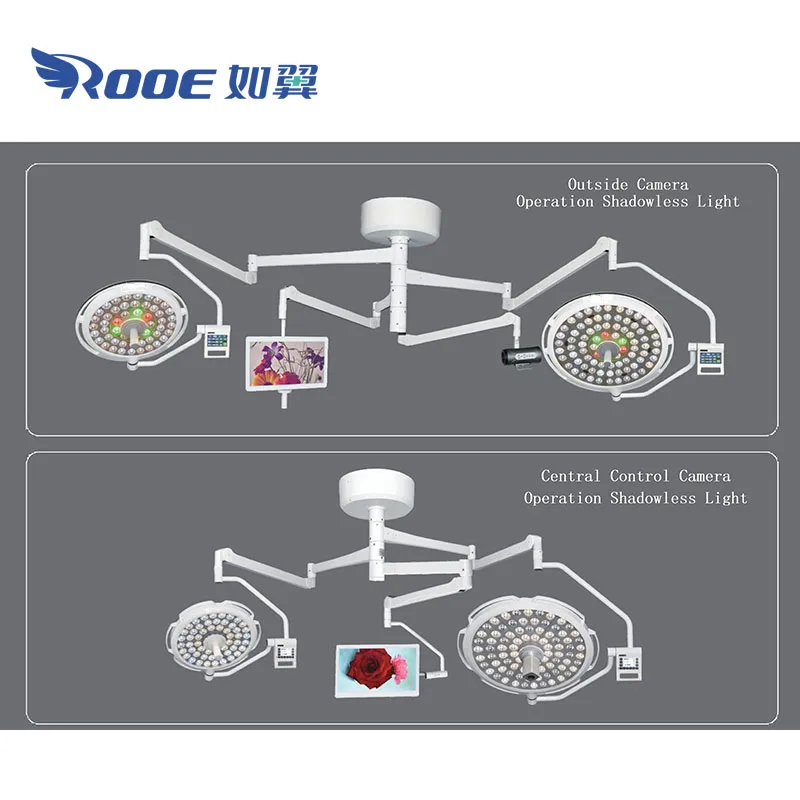

Surgical Light Detail 2

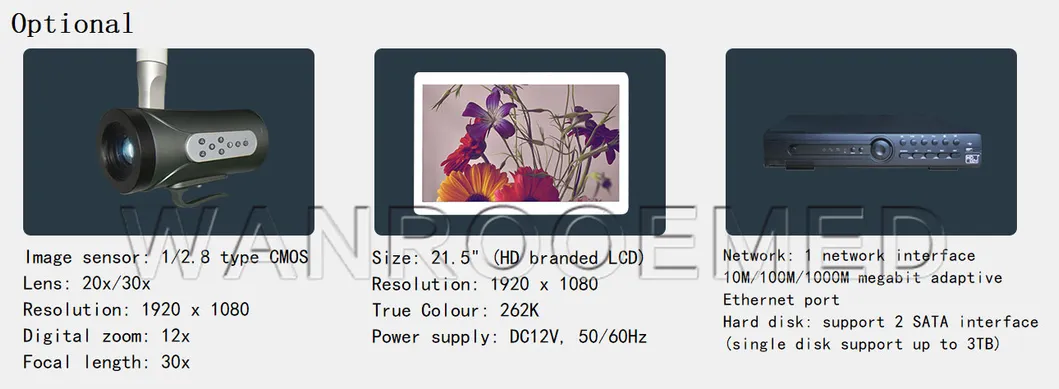

Surgical Light Detail 3

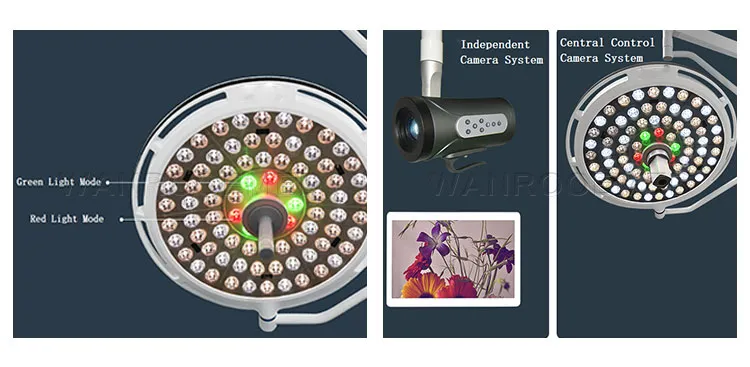

Surgical Light Detail 4

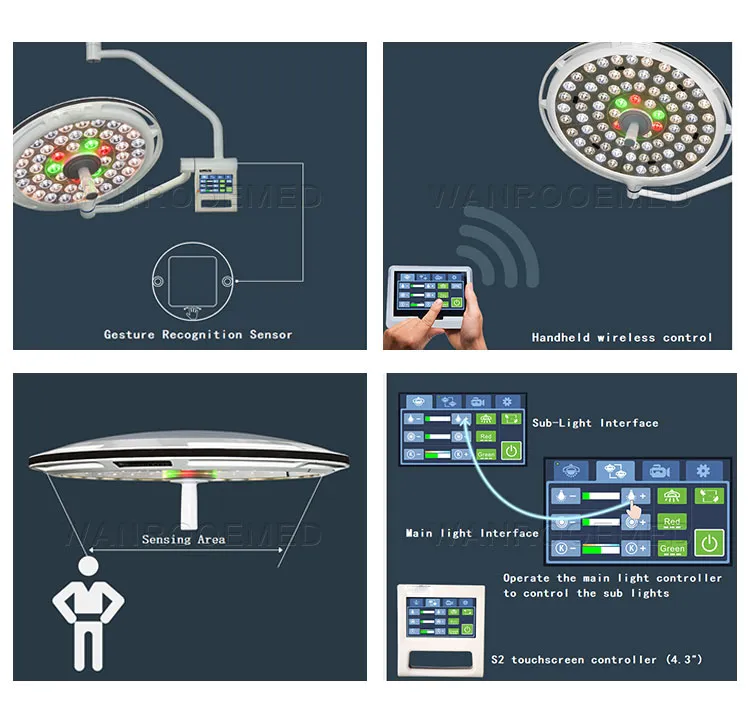

Surgical Light Detail 5

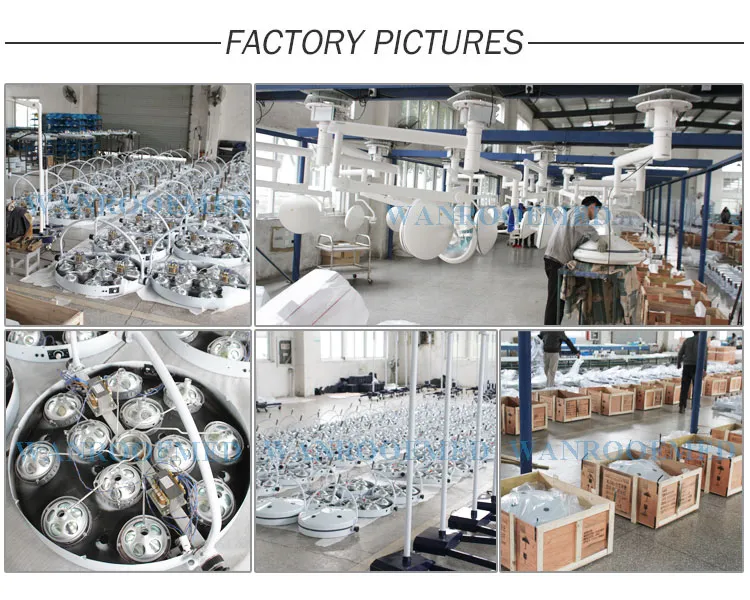

Surgical Light Detail 6
Frequently Asked Questions
What is the expected lifespan of the LED bulbs?
The LED series surgical lamps use high-quality German Osram bulbs with an average life expectancy of over 50,000 hours.
Can the color temperature be adjusted during surgery?
Yes, the color temperature is adjustable between 4000K and 5000K to improve visual resolution or relieve fatigue.
Is the handle of the lamp head sterilizable?
Yes, the focusing module features a 360° removable design that can withstand high-temperature and high-pressure disinfection at 134ºC.
What is "Shading Compensation" technology?
It is an optional intelligent feature that detects when a surgeon's head blocks a portion of the light and automatically compensates by increasing the brightness of remaining LEDs.
Does this lamp support endoscopic surgery?
Yes, it includes a one-key endoscopic surgical lighting function (cavity mirror mode) to meet specific lighting requirements for minimally invasive procedures.
Can a camera system be integrated into the light?
Yes, we offer optional Full HD central or independent camera systems for remote consultation and teaching purposes.
