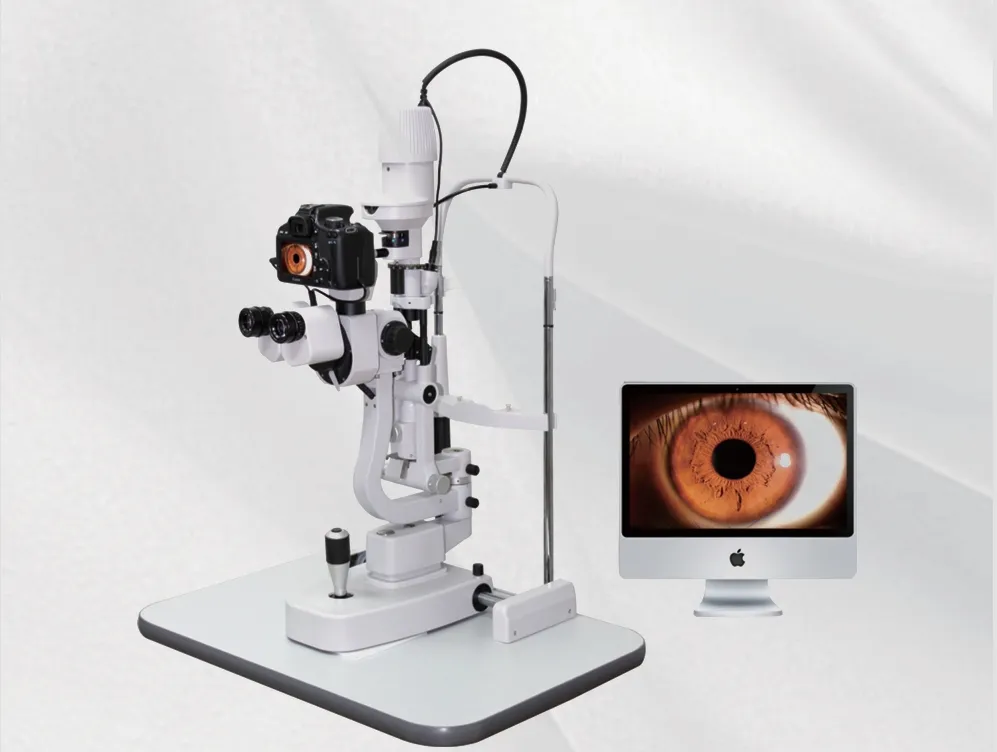

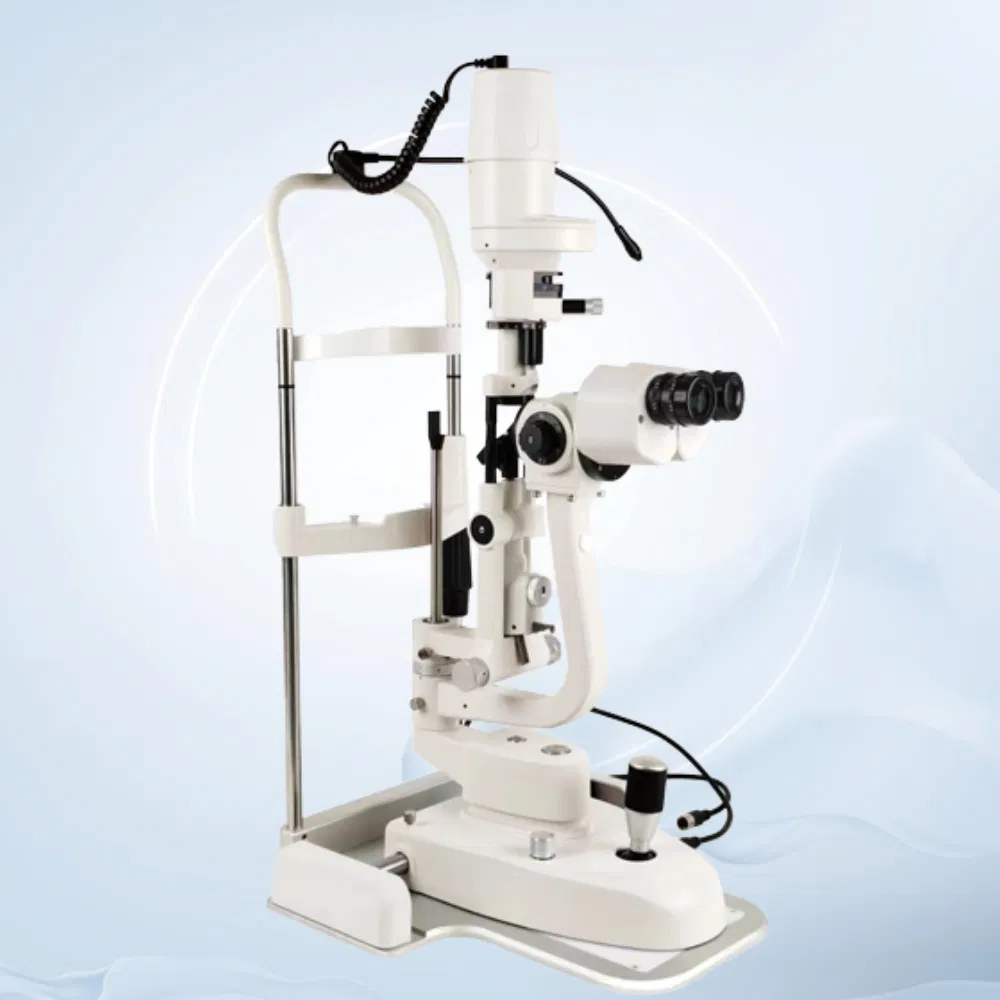

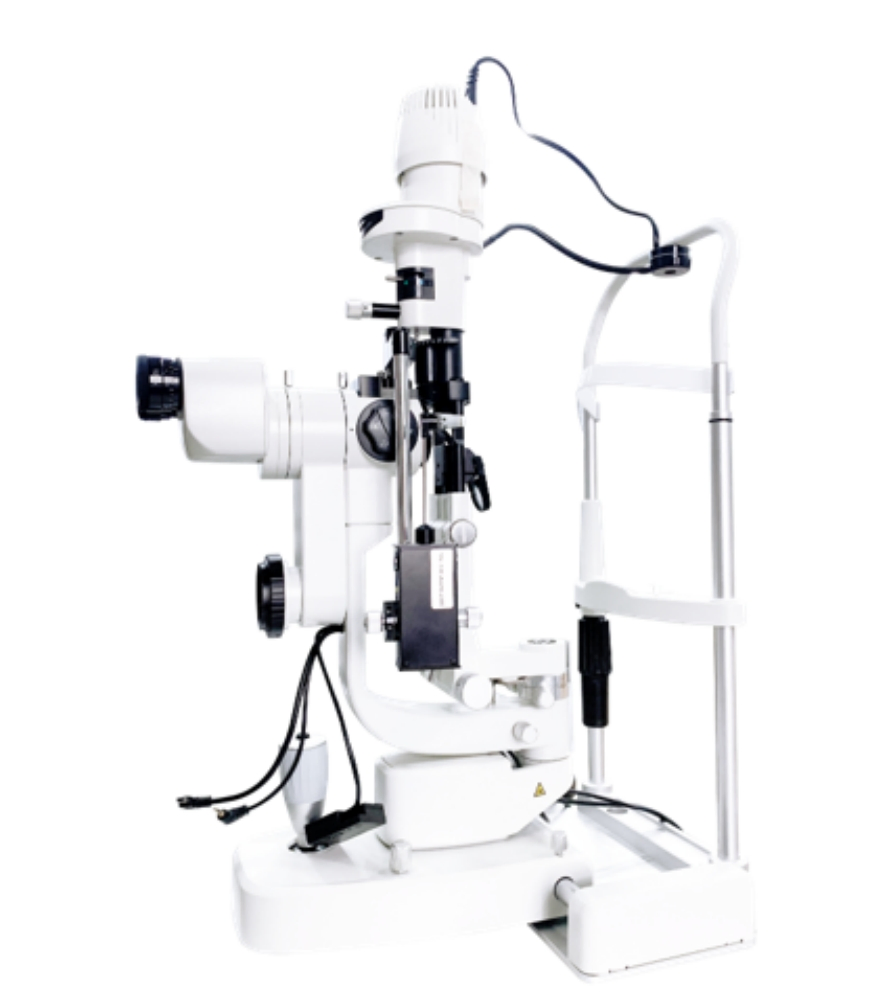

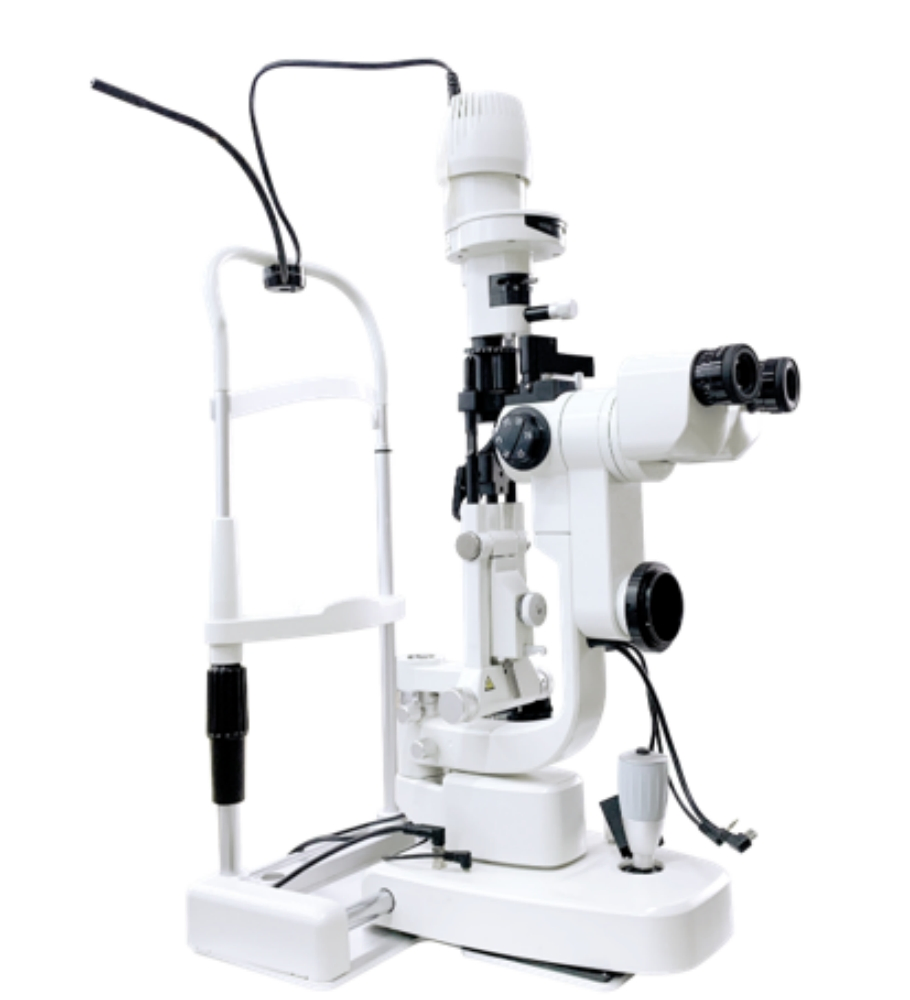

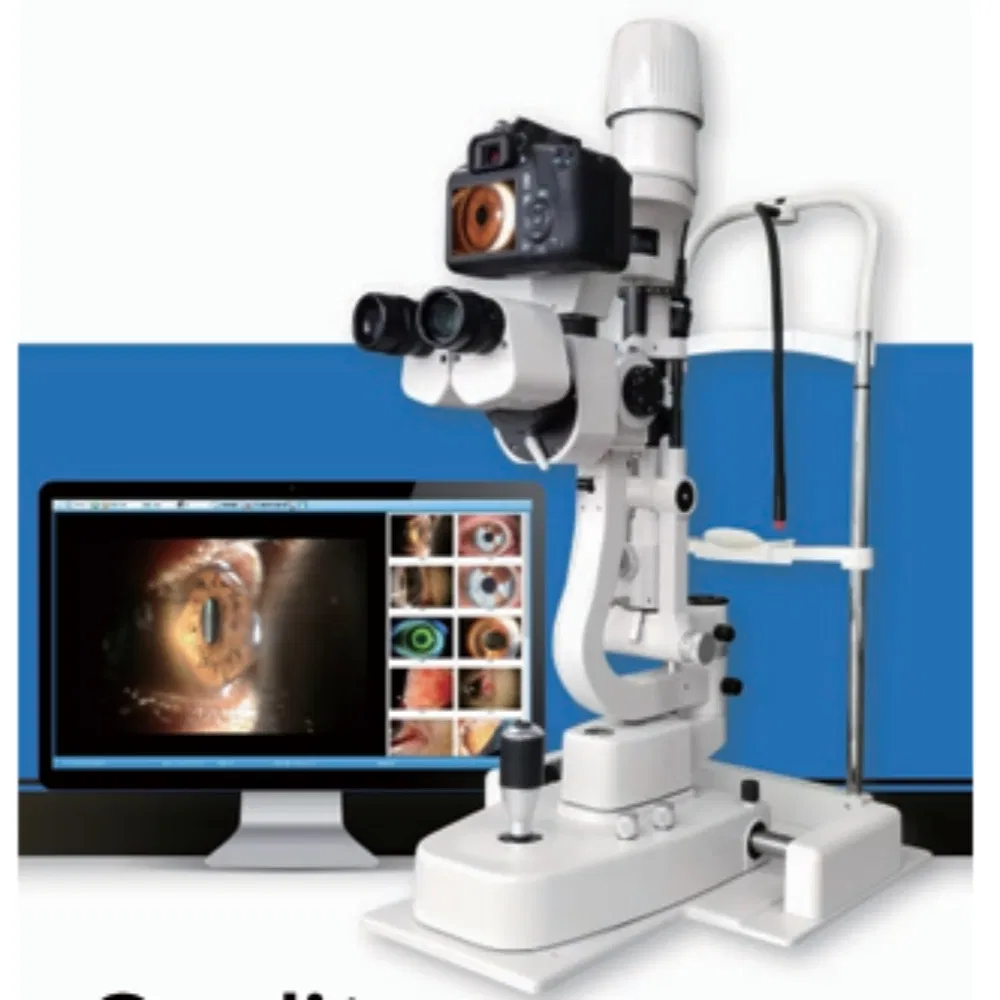

High-Quality Ophthalmological Precision Examination Equipment SL-520 Image System 5 Step Digital Slit Lamp with Camera
Product Description
Basic Information
Product Specifications
| Technical Data | |
|---|---|
| Microscope Type | Galilean System |
| Magnification Changer | Revolving Drum |
| Eyepiece Magnification | 12.5X |
| Slit Width | 0mm-14mm Continuously Adjustable |
| Slit Length | 1mm-14mm Continuously Adjustable |
| Slit Angle | 0-180° Continuously Adjustable |
| Filter | Heat Absorption, Grey, Redfree (Green), Cobalt Blue |
| Light Control | PWM: Pulse Width Modulation |
| Light Source | Warm LED |
| Magnification | 6.3X, 10X, 16X, 25X, 40X |
| Diopter | ±7D |
| Pupil Range | 52mm-85mm |
| Visual Field Diameter | 6X/33mm; 10X/22mm; 16X/14mm; 25X/8.5mm; 40X/5.5mm |
| Illumination Type | Haag–Streit Type |
| Illumination Tilting | 5°, 10°, 15°, 20° |
| Slit Aperture Size | φ0.2, φ1, φ3, φ5, φ10, φ14 (mm) |

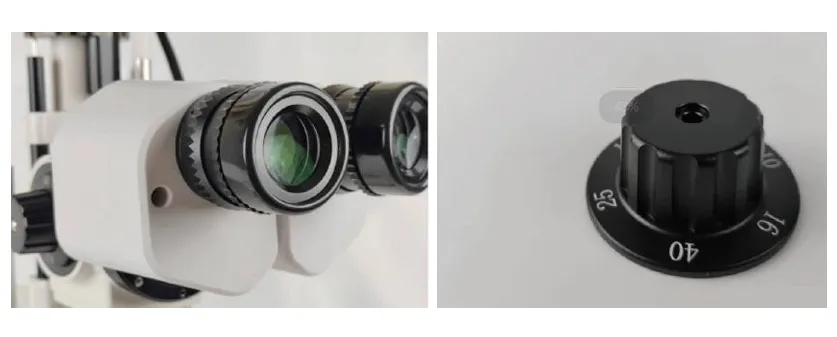

Key Features
- PARALLEL TYPE, GALILEAN SYSTEM: High-end optical design for superior clarity.
- STEREOSCOPIC FUSION: Provides professional binocular fusion; upgradable to teaching or digital slit lamp systems.
- MAGNIFICATION CHANGER: Convenient revolving drum for easy adjustments.
- 5-STEP MAGNIFICATION: Versatile viewing options including 6x, 10x, 16x, 25x, and 40x.
Suitable for Multiple Scenarios
Product Gallery
Frequently Asked Questions
The Galilean system provides a parallel optical path, which reduces eye fatigue for the practitioner and allows for high-quality stereoscopic imaging and the addition of digital accessories.

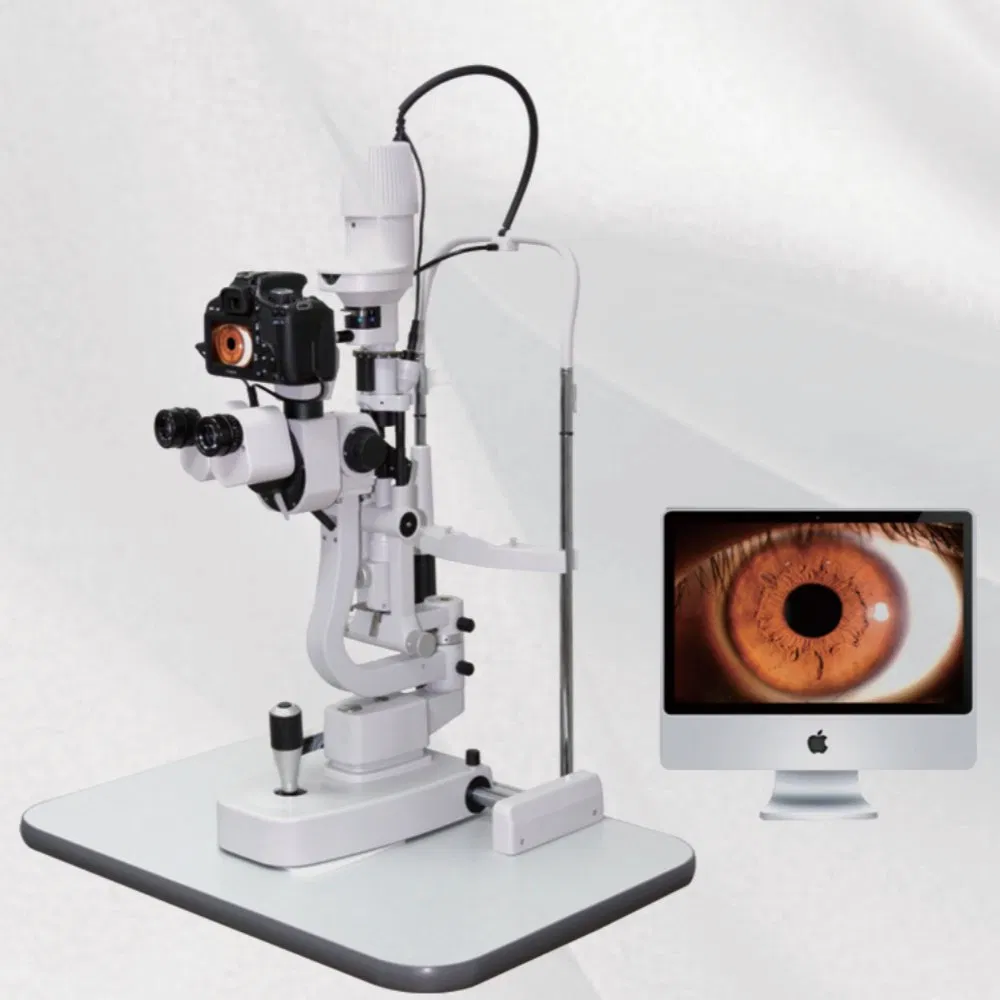

Yes, the SL-520 is designed to be upgradable, allowing you to integrate a camera system for digital imaging and documentation.
The revolving drum allows for 5 magnification steps: 6.3X, 10X, 16X, 25X, and 40X, providing a wide range of clinical examination options.
The SL-520 comes equipped with four built-in filters: Heat Absorption, Grey, Red-free (Green), and Cobalt Blue for various diagnostic needs.
Yes, the slit width and length are continuously adjustable from 0mm to 14mm, and the illumination can be tilted in increments of 5°, 10°, 15°, and 20°.
This model uses a high-performance Warm LED light source, controlled via Pulse Width Modulation (PWM) for stable and consistent illumination.
