Slitlamp China Supplier Low Price Eye Exam Machine Hospital Clinic Chinese Medical 5 Step LED Ophthalmic Slit Lamp for Sale
Product Description
Basic Specifications
Product Overview

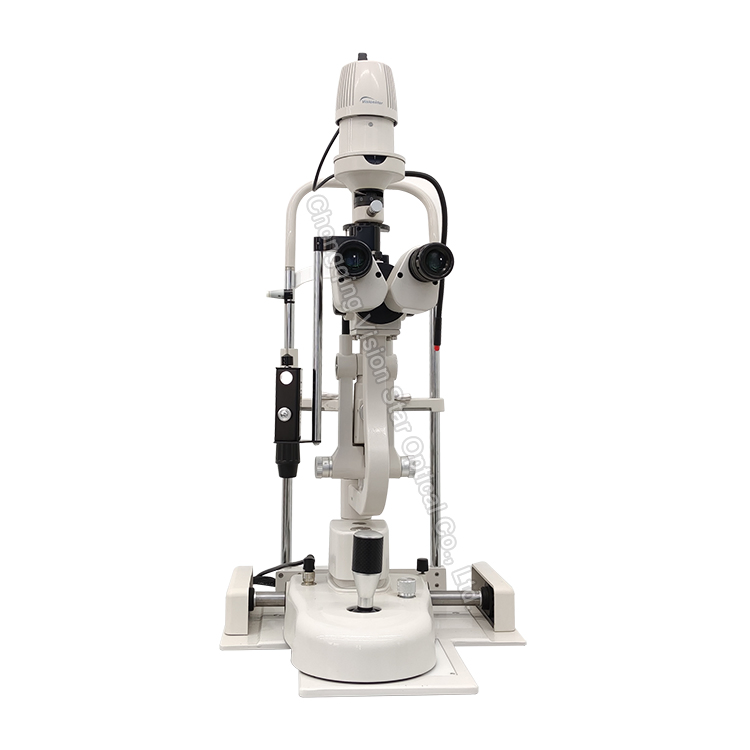

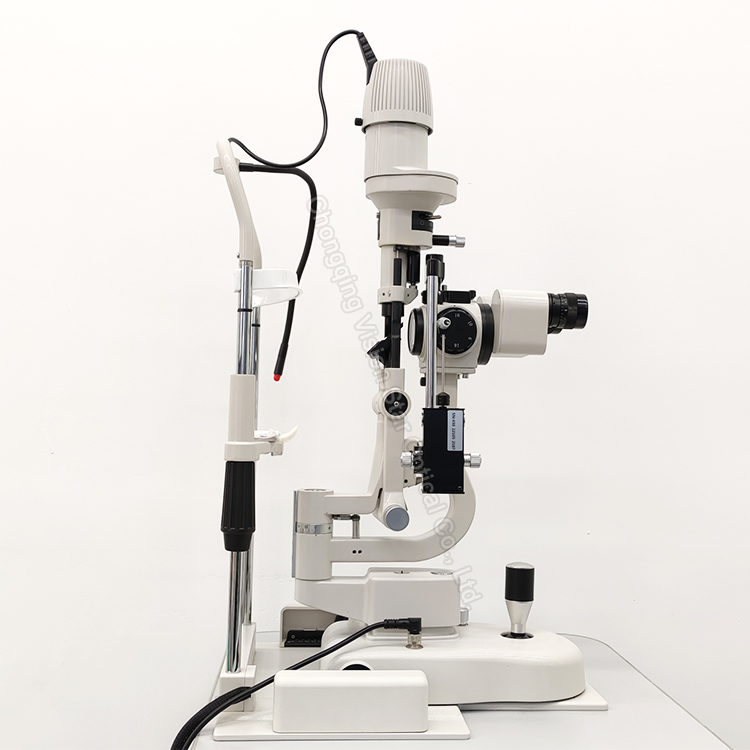

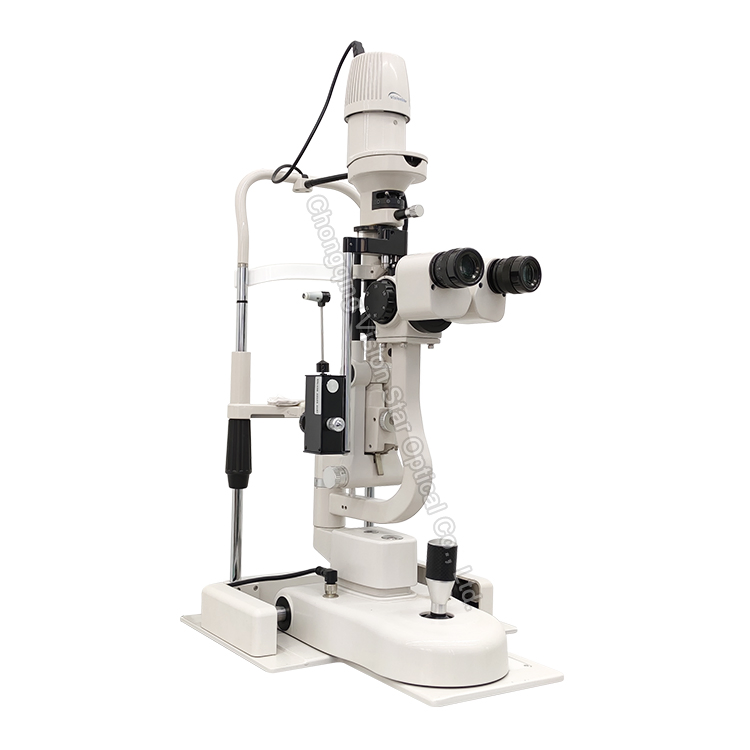

S5 Ophthalmic 5 Step Magnifications Slit Lamp
The S5 slit lamp is a tower type slit lamp with a light source positioned at the top. It features five magnification levels: 6X, 10X, 16X, 25X, and 40X, providing versatile options for examining both large areas and specific details of the eye. With a wide range slit width (0mm~14mm) and slit length (1mm~14mm), it meets diverse clinical requirements.
Equipped with four specialized filters—heat absorption, grey, red-free (green), and cobalt blue—the S5 assists in various diagnostic procedures. The high-quality LED lamp ensures a clear view for examinations while maintaining patient comfort. Its detachable metal base plate allows for easy mobility or integration into an ophthalmic unit or motorized table.

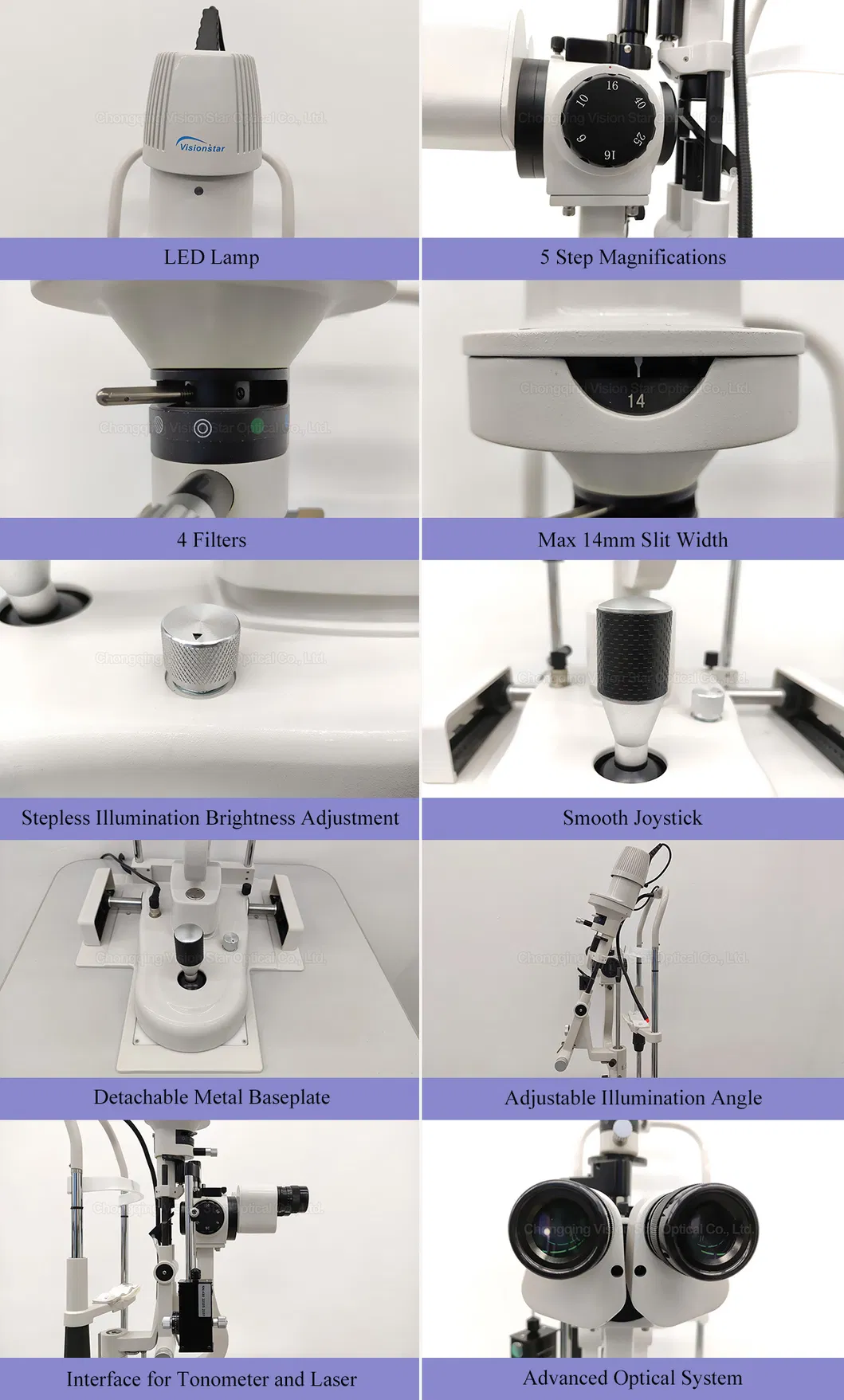

Key Features
- ✔ Outstanding Optic Quality for Comfortable Viewing
- ✔ Parallel Type Galilean System
- ✔ Long-life LED Illumination
- ✔ 5-Step Magnification Changer
- ✔ Broad Beam, Wide Field, and High Depth of Field
- ✔ Reserved Interface for Laser and Applanation Tonometer
Technical Specifications
| Model | S5 |
| Illumination Type | Haag Streit Type |
| Illumination Source | Imported LED Lamp |
| Max Illumination Intensity | 60000 Lux |
| Microscope Type | Parallel type, Galilean system |
| Magnification Changer | Revolving drum |
| Eyepiece | 12.5X |
| Magnification Steps | 6X, 10X, 16X, 25X, 40X |
| Visual Field Diameter | 6X:33mm, 10X:22mm, 16X:14mm, 25X:8.5mm, 40X:5.5mm |
| Diopter Adjustment | -7D ~ +7D |
| Pupil Range | 52mm ~ 82mm |
| Slit Image Width | 0mm ~ 14mm continuous |
| Slit Image Length | 1mm ~ 14mm continuous |
| Slit Aperture Size | 14, 10, 5, 3, 1, 0.2 (mm) & 1~14mm continuous |
| Filters | Heat absorption, Grey, Red-free(Green), Cobalt blue |
| Input Voltage | 100V ~ 240V, 48~62HZ |
