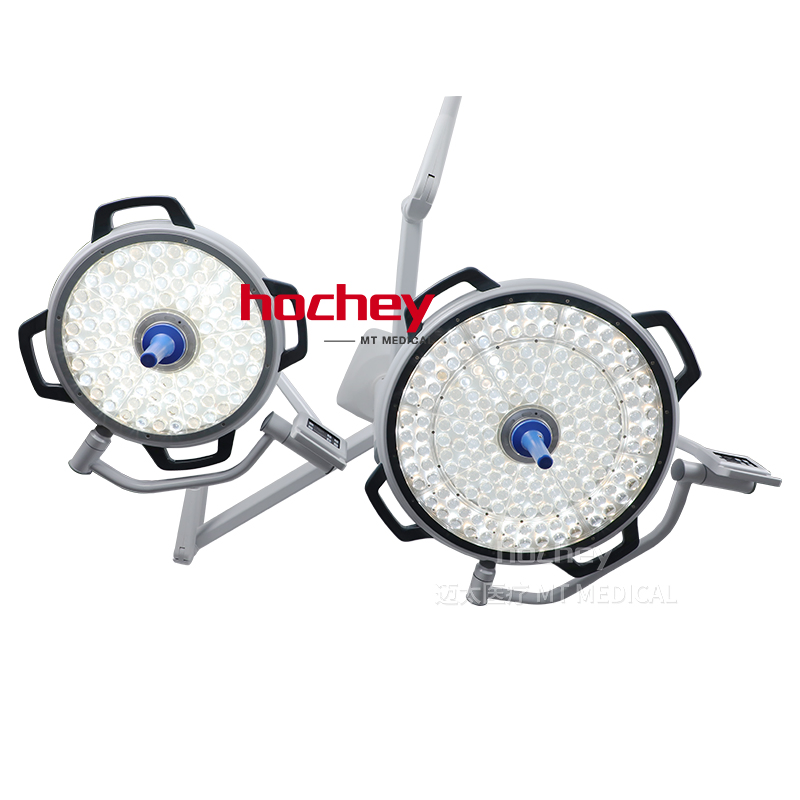

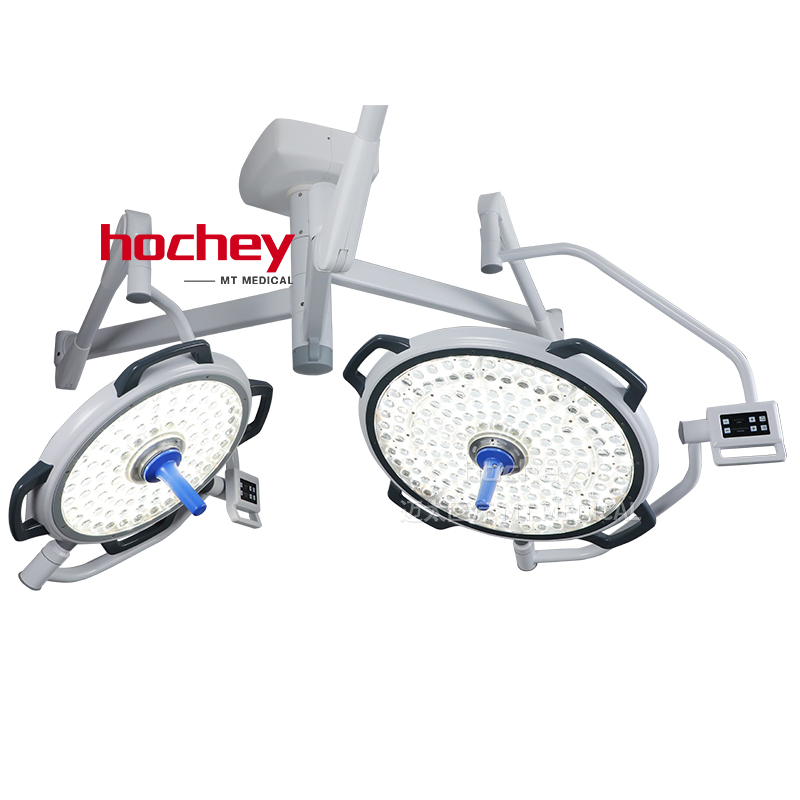

Hospital Surgical Room Double Dome Operation Ceiling Shadowless Lamp
Product Description
◈ Basic Info.
Model NO.
YDE 700/500D
Certification
CE, FDA, ISO13485
Illuminance
160000/140000lux.
Bulb
LED
CRI Ra
>95
Color Temperature
3800-5500K
Power
150va
Light Field Dia.
16-35cm
Origin
China
Capacity
10000PCS/Month
◈ Product Description

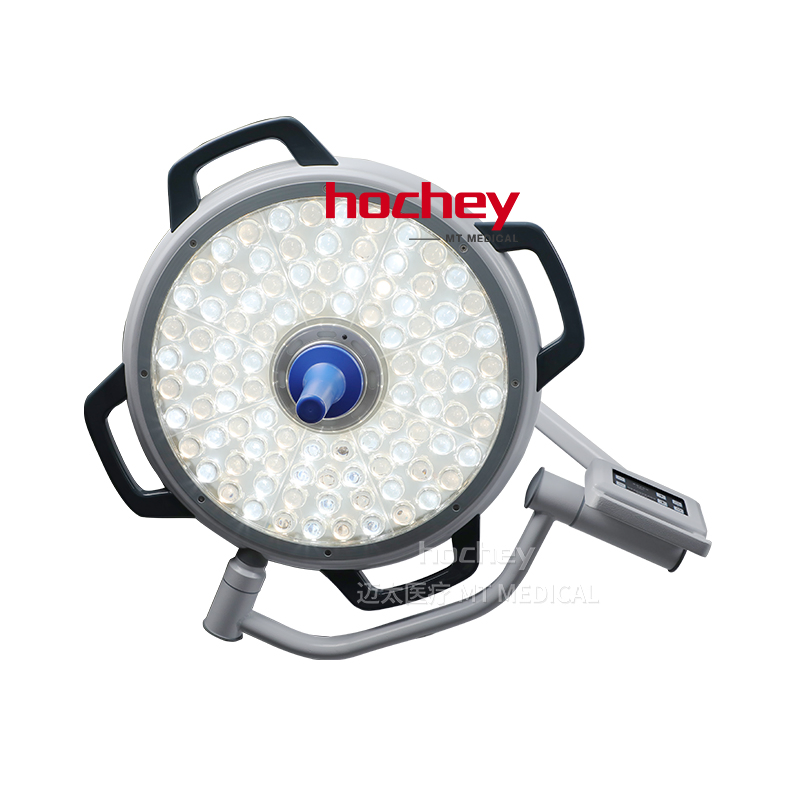

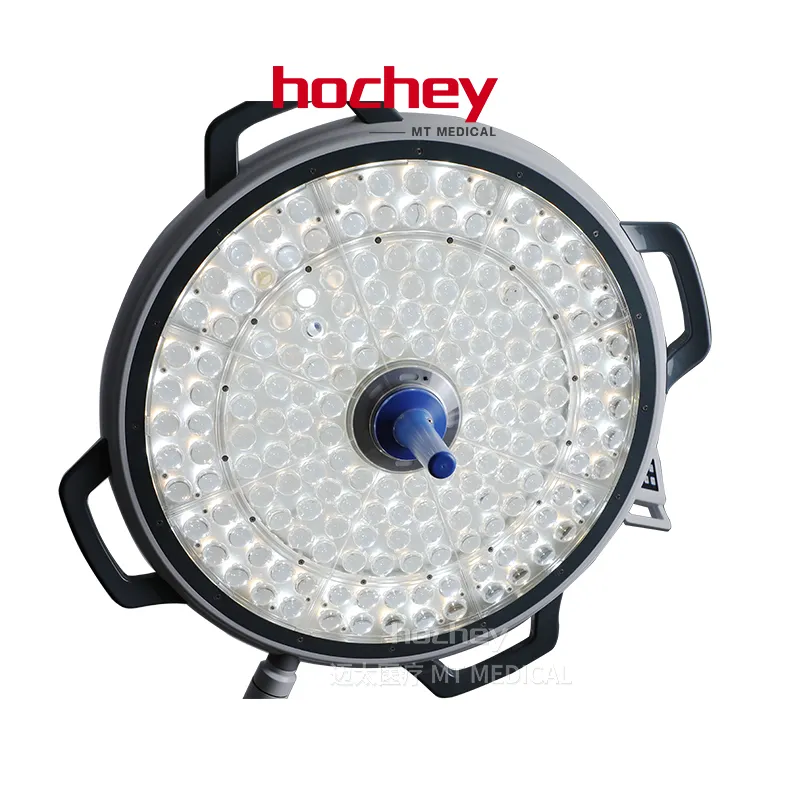

It has a large light head which consists of 9 matrix lens lighting modules with 176 LED bulbs. For the smaller version, the light head consists of 8 matrix lens lighting modules with 96 LED bulbs. This structure provides excellent experience of all-dimensional shadowless lighting with no dead corner. Its ultra-thin and streamlined light head provide low wind resistance to enable laminar flow. This allows the laminar flow to reach the surgical wound area stably, preventing cross infection. The shell of lighthead is made of aluminium alloy with outstanding heat dissipation capability, extending the life of LED and increasing the efficiency of illumination.
◈ Product Parameters
| Parameters | 900mm Model | 800mm Model |
|---|---|---|
| Illuminance | 160000lux | 140000lux |
| Adjustable Range | 40000-160000lux | 40000-140000lux |
| Color Temperature | 3800-5500K | 3800-5500K |
| CRI RA | ≥95 | ≥95 |
| Field Uniformity | 1200mm | 1200mm |
| Radiation Power | <500w/m2 | <500w/m2 |
| Voltage | AC220V | AC220V |
| Power | 150VA | 150VA |
◈ Key Performance & Quality
Performance
Easy-to-use with shadowless effect. Design minimizes overheating and optimizes airflow for better hygiene.
Quality
Transparent light screen with special coating for easier cleaning and sterilization. German-imported spring arm for stable positioning.
Precise

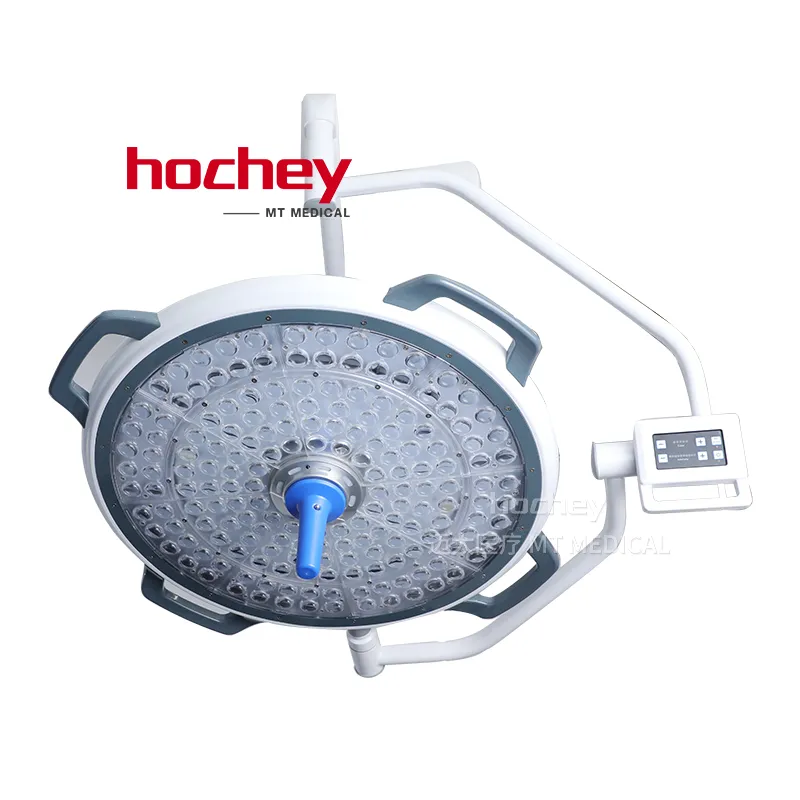

Advanced patent focus technology enables clear vision of cavity. Depth of illumination reaches up to 800mm.
Safety
Separately controlled multi-lens matrix electronic circuit prevents total light malfunction, ensuring patient safety.
Durable
Long LED life expectancy delivers a more reliable product and better investment protection.
Efficient
Low power consumption and durable LEDs minimize the impact to our environment.
✔ The light screen is made of synthetic resin. It is anti-infrared, scratch-proofed and anti-static.
✔ Covered by 2H hardness coating for durability. Anti-infrared coating prevents desiccation of patient's tissue.

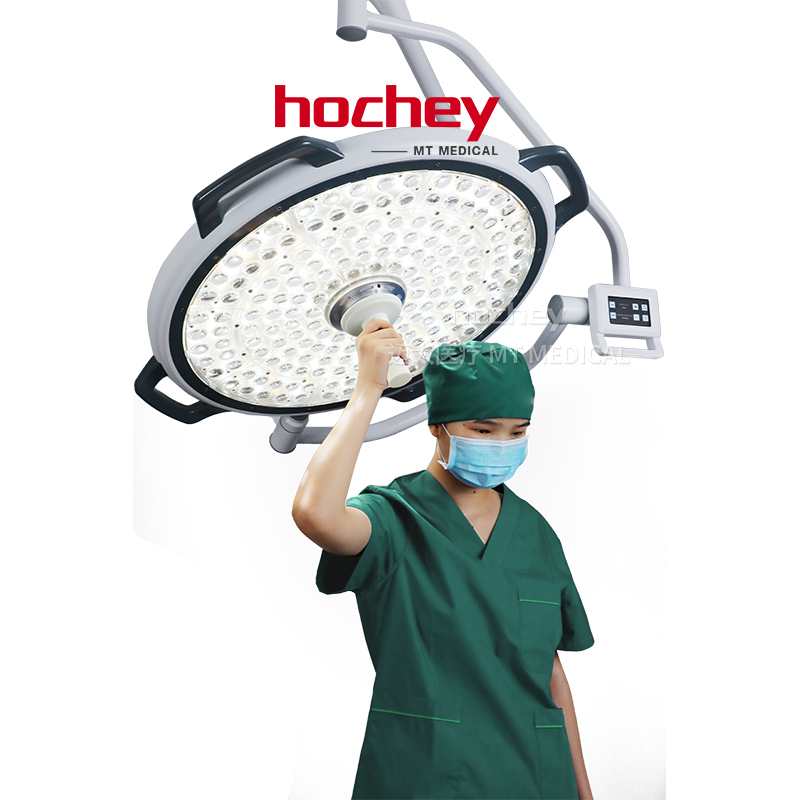

✔ Detachable and sterilizable handle made by PSU Polysulfone (withstands up to 135°C).

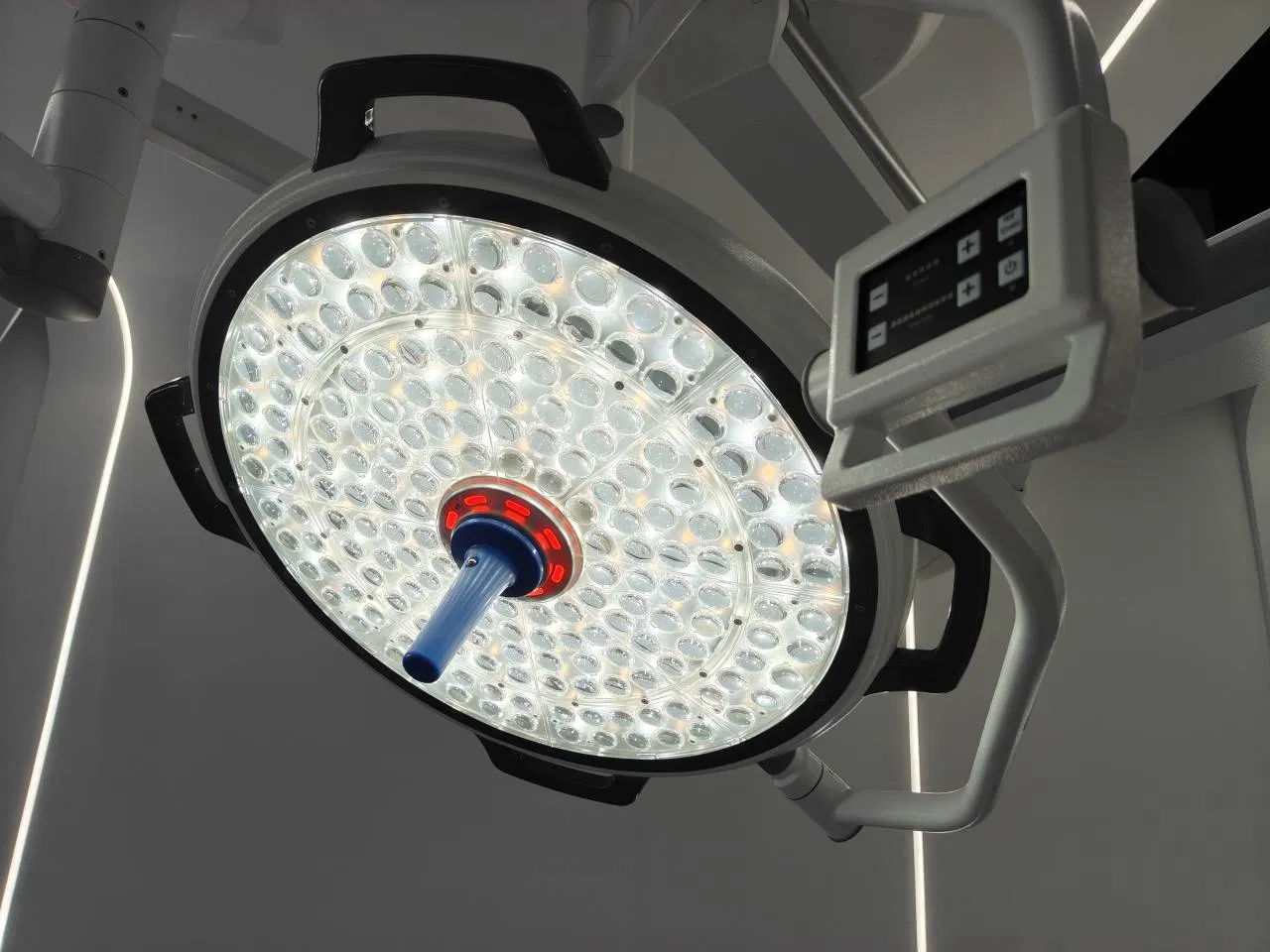

✔ Multi-lens structure delivers light spot with a diameter up to 250mm.
◈ Certifications
◈ Profile
We are located at an economic development zone with more than 100,000 square meters of workshops. Since 1998, we have been working to research and develop operation tables, operation lamps, ceiling pendants, hospital beds, patient monitors, and other medical furniture. Our products are sold to the Middle East, Southeast Asia, Africa, South America, and European markets. We strive for technical innovation and guarding life, working in good faith cooperation to create win-win situations for our global partners.
◈ FAQ
Are you a manufacturer?
Yes, we have our own R&D team and sales team, providing a one-stop service.
Do you have CE and ISO13485 certifications?
Yes, our products are approved by CE and ISO13485 standards.
Is OEM & ODM service available?
Yes, simply provide the necessary documents and we will produce the products according to your requirements.
What are your payment terms?
We accept L/C at sight or T/T (30% deposit, 70% balance before shipment). Trade terms include EXW, FOB, or CIF.
What are the packing details?
We use standard export packages, including wooden cases or cartons. All productions are inspected by QC before delivery.
What is the delivery time?
For stock items, delivery is 5-10 days. For non-stock items, production takes 20-30 days depending on the order quantity.
